Weld Neck Flanges

What are Weld Neck Flanges?

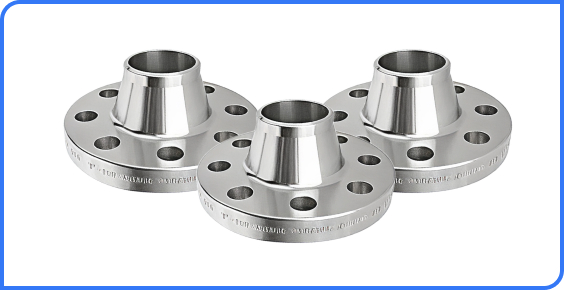

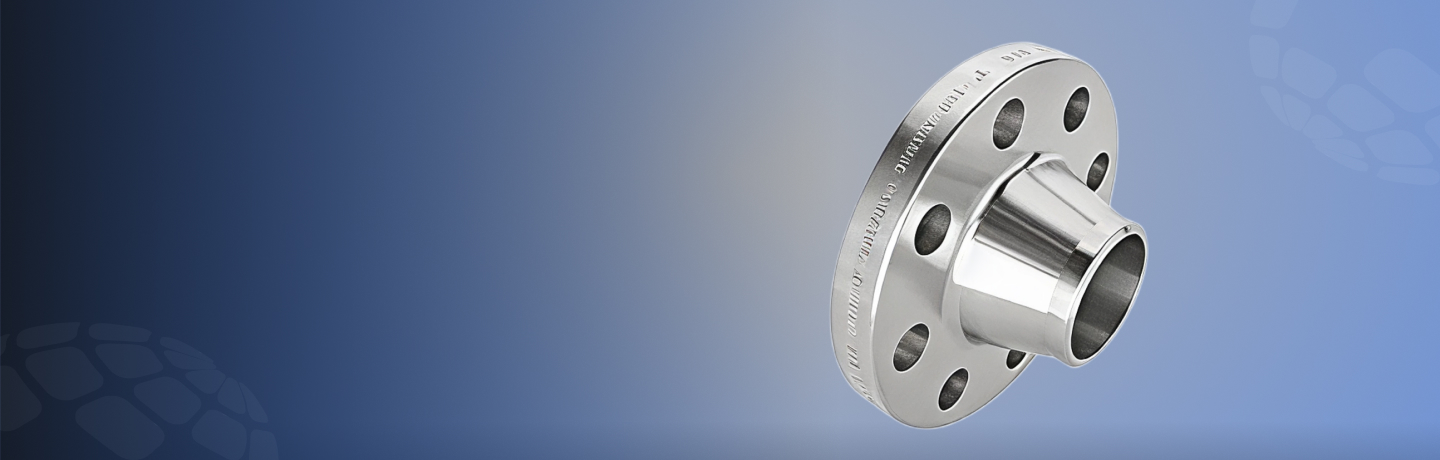

Weld neck flanges (WN flanges) are designed with a long tapered hub that is butt-welded to the pipe, ensuring excellent stress distribution and high-strength joints. These flanges are ideal for severe service conditions involving high pressure, temperature, or cyclic loading.

Asiad Steel Industries manufactures precision-grade weld neck flanges in stainless steel, carbon steel, and special alloys for critical applications worldwide.

Key Features

Leak-Proof
Jointing

Durable
Construction

High Load
Capacity

Wide
Compatibility

Corrosion
Resistant

Specifications

Specification Category Parameter / Feature Details / Options
Size Range Nominal Pipe Size (NPS) ½” to 48” (DN15 – DN1200)
Pressure Ratings ANSI / ASME Class Class 150, 300, 600, 900, 1500, 2500
PN Ratings PN6, PN10, PN16, PN25, PN40, PN64
Flange Types Weld Neck Flanges Standard Weld Neck, Long Weld Neck
Special Types Reducing Weld Neck Flanges, Heavy-Duty Weld Necks
Material Options Stainless Steel SS 304, SS 304L, SS 316, SS 316L, SS 321, SS 347
Carbon Steel ASTM A105, ASTM A350 LF2
Alloy / Superalloy Alloy Steel (A182 F1, F5, F9, F11, F22, F91), Inconel 600/625/825
Duplex & Super Duplex Duplex 2205, Super Duplex 2507
Other Materials Monel 400/K500, Nickel 200/201, Titanium (Grade 2, Grade 5), Hastelloy C22/C276
Standards & Certifications ASME / ANSI ASME B16.5, ASME B16.47 Series A & B
ASTM ASTM A182, ASTM A350
European Standards EN 1092-1, DIN 2631, DIN 2632, DIN 2633, DIN 2634
Certifications ISO 9001, PED 2014/68/EU, NACE MR0175, IBR Approved
Design Features Neck Design Long tapered hub to reduce stress concentration
Bore Design Machined to match pipe ID for smooth flow
Face Type Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ)
Thickness As per ASME B16.5 & EN 1092-1
Tolerance As per ASME/ANSI standards
Coating & Surface Finish Anti-Corrosion Coating Rust Preventive Oil, Black Oxide, Hot-Dip Galvanized
Optional Coatings Epoxy, PTFE, Polyurethane
Surface Finish Smooth Finish, Serrated Finish, Polished
Testing & Inspection Pressure Testing Hydrostatic, Pneumatic
Non-Destructive Testing Ultrasonic (UT), Radiography (RT), Magnetic Particle (MPI), Dye Penetrant (DPT)
Destructive Testing Tensile, Hardness, Impact

Dimensions

NPS (in) OD (mm) Flange Thickness T (mm) Bolt Circle Diameter BCD (mm) No. of Bolts Bolt Size Hub Diameter HD (mm) Raised Face Diameter RF (mm)
½” 92 16 62 4 ½”-13 UNC 47 70
¾” 102 16 70 4 ½”-13 UNC 56 79
1″ 114 19 79 4 ½”-13 UNC 65 89
1½” 152 22 102 4 ⅝”-11 UNC 83 108
2″ 165 22 114 4 ⅝”-11 UNC 97 127
2½” 190 25 133 4 ⅝”-11 UNC 108 146
3″ 216 25 156 4 ⅝”-11 UNC 127 165
4″ 254 28 190 4 ⅝”-11 UNC 152 203
6″ 318 32 241 4 ¾”-10 UNC 203 254
8″ 381 38 298 8 ¾”-10 UNC 254 318
10″ 443 41 362 8 ⅞”-9 UNC 305 381
12″ 505 46 406 8 ⅞”-9 UNC 356 444
14″ 567 51 476 12 ⅞”-9 UNC 394 444
16″ 622 57 533 12 1″-8 UNC 457 508
18″ 699 64 603 12 1″-8 UNC 508 559
20″ 737 70 660 12 1″-8 UNC 559 610
24″ 864 76 787 16 1″-8 UNC 635 686
Notes:
These dimensions are for Class 150 Weld Neck Flanges; thickness and bolt sizes increase with higher pressure classes (Class 300, 600, 900, etc.).
OD = Outside Diameter of flange
RF = Raised Face diameter
HD = Hub Diameter

Mechanical Properties

Property Value Unit / Standard
Tensile Strength 485 – 750 MPa (Carbon Steel, Stainless Steel, Alloy Steel)
Yield Strength 170 – 450 MPa
Hardness 120 – 200 HB (Brinell)
Elongation ≥ 20 – 30 %
Density 7.8 – 8.0 g/cm³
Impact Toughness ≥ 27 – 70 J (Charpy, grade-dependent)
Modulus of Elasticity (E) ~200 GPa
Fatigue Strength 250 – 450 MPa
Corrosion Resistance Good to Excellent (SS > CS > Alloy Steel)
Thermal Conductivity 15 – 50 W/m·K
Coefficient of Thermal Expansion 11 – 17 ×10⁻⁶ /°C
Yield Ratio (YS/UTS) 0.40 – 0.65
Poisson’s Ratio 0.27 – 0.30
Brinell Hardness Range 120 – 200 HB
Surface Finish Serrated / Stock / Smooth finish per ASME B16.5
Welding Type Butt-welded to pipe (per ASME B16.25 bevel ends)
Operating Temperature Range -46 to 600 °C (material-dependent)
Pressure Rating Class 150, 300, 600, 900, 1500, 2500 ASME B16.5 Standards

Chemical Composition

Element SS 304 (%) SS 304L (%) SS 316 (%) SS 316L (%)
Carbon (C) ≤ 0.08 ≤ 0.03 ≤ 0.08 ≤ 0.03
Manganese (Mn) ≤ 2.00 ≤ 2.00 ≤ 2.00 ≤ 2.00
Silicon (Si) ≤ 1.00 ≤ 1.00 ≤ 1.00 ≤ 1.00
Phosphorus (P) ≤ 0.045 ≤ 0.045 ≤ 0.045 ≤ 0.045
Sulfur (S) ≤ 0.030 ≤ 0.030 ≤ 0.030 ≤ 0.030
Chromium (Cr) 18.0 – 20.0 18.0 – 20.0 16.0 – 18.0 16.0 – 18.0
Nickel (Ni) 8.0 – 10.5 8.0 – 12.0 10.0 – 14.0 10.0 – 14.0
Molybdenum (Mo) 2.0 – 3.0 2.0 – 3.0
Iron (Fe) Balance Balance Balance Balance

Applications of Weld Neck Flanges

Construction &
Infrastructure

Power Generation &
Energy Sector

Manufacturing &
Fabrication

Medical & Laboratory
Equipment

Electrical &
Electronics Assembly

Oil, Gas & Petrochemical
Installations
