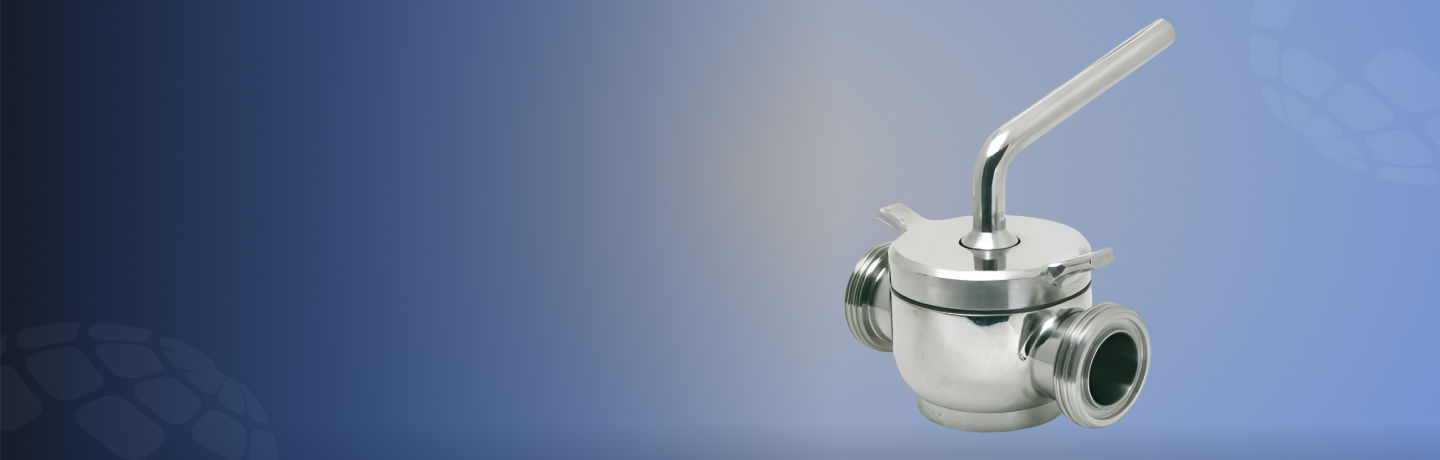

Two-Way Plug Valves
What are Two-Way Plug Valves?

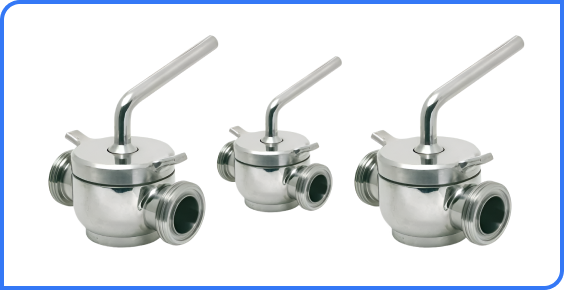

Two-Way Plug Valves are quarter-turn valves designed for quick and reliable shut-off in dairy processing systems. These valves consist of a cylindrical or conical plug with a straight passage that allows flow in one direction and seals off completely when rotated 90 degrees. Their hygienic construction ensures smooth flow and zero contamination, making them ideal for milk, cream, yogurt, and similar fluid transfer.
Asiad Steel Industries is a leading manufacturer and supplier of high-performance Two-Way Plug Valves engineered for dairy-grade reliability and CIP/SIP compatibility.
Key Features
- Hygienic Design – Smooth surfaces with crevice-free internals to prevent bacterial buildup.
- Quick Shut-off – 90° rotation enables instant flow control or shut-off.
- Easy to Clean – Suitable for CIP (Clean-In-Place) and SIP (Sterilize-In-Place) processes.
- Robust Sealing – Prevents leakage and cross-contamination in dairy systems.
- Long Service Life – Made from SS 304/316L with food-grade sealing materials.
Types of Two-Way Plug Valves
- Manual Operated Plug Valves
- Pneumatic Actuated Plug Valves
- Welded or Tri-Clamp End Connections
- PTFE or EPDM Seated Plug Valves
Specifications
Mechanical Properties
Chemical Composition
Equivalent Grades
Weight Chart
Specifications
| Parameter | Details |
|---|---|
| Size Range | ½” to 4” (DN15–DN100) |
| Body Material | Stainless Steel 304 / 316L |
| Seal Material | PTFE / EPDM / Silicone |
| Connection Ends | Tri-Clamp, SMS, DIN, Welded |
| Operation | Manual / Pneumatic / Electric |
| Standards | 3A, ISO, DIN, SMS, IDF |
| Property | Value |
|---|---|
| Tensile Strength | ≥ 520 MPa |
| Yield Strength | ≥ 210 MPa |
| Hardness | ≤ 200 HB |
| Working Temp. | -20°C to +180°C |
| Element | Composition (%) |
|---|---|
| Chromium (Cr) | 18.0 – 20.0 |
| Nickel (Ni) | 8.0 – 12.0 |
| Manganese (Mn) | ≤ 2.00 |
| Carbon (C) | ≤ 0.03 |
| Silicon (Si) | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 |
| Standard | Equivalent Grade |
|---|---|
| ASTM | A240 TP304 / TP316L |
| EN | X5CrNi18-10 / X2CrNiMo17-12-2 |
| DIN | 1.4301 / 1.4404 |
| JIS | SUS 304 / SUS 316L |
| Valve Size (Inch) | Type | Approx. Weight (kg) |
|---|---|---|
| 1” | Manual Plug Valve | 2.1 |
| 1½” | Pneumatic Plug Valve | 3.6 |
| 2” | Manual Plug Valve | 4.2 |
| 3” | Pneumatic Plug Valve | 6.8 |
Applications of Two-Way Plug Valves
Construction &
Infrastructure
Automotive & Heavy
Equipment
Manufacturing &
Fabrication
Medical & Laboratory
Equipment
Electrical &
Electronics Assembly
Oil, Gas & Petrochemical
Installations
Do you have questions?
What makes two-way plug valves suitable for dairy?
Their crevice-free design and CIP/SIP compatibility ensure sanitary fluid handling without contamination.
Can they be operated automatically?
Yes. We offer pneumatic and electric actuators for automation in dairy lines.
Are replacement parts available?
Yes. We supply replacement seals, plugs, and actuators as needed.
Do they support both welding and clamp connections?
Absolutely. We offer both Tri-Clamp and butt-weld ends as per application needs.
