Titanium
What is a Titanium?
Titanium is a lightweight, high-strength, and corrosion-resistant metal alloy widely used in aerospace, marine, medical, and industrial applications. Known for its superior strength-to-weight ratio and excellent performance in extreme environments, titanium offers unmatched durability and biocompatibility. It resists corrosion from seawater, chlorides, and acids, making it ideal for aggressive operating conditions.
Asiad Steel Industries is a leading supplier of premium-grade Titanium products in various forms, including bars, sheets, pipes, and fittings.
Key Features
- Lightweight Yet Strong – High strength-to-density ratio ideal for weight-critical applications.
- Corrosion Resistance – Excellent resistance to oxidizing, chlorinated, and marine environments.
- Biocompatibility – Safe for medical and surgical use due to non-toxic and non-reactive properties.
- Temperature Resistance – Performs reliably across a wide thermal range.
- Weldable & Formable – Easily fabricated into complex components.
Specifications
Mechanical Properties
Chemical Composition
Equivalent Grades
Weight Chart
Specifications
| Parameter | Details |
|---|---|
| Grades | Grade 2, Grade 5 (Ti-6Al-4V), Grade 7, Grade 23 |
| Standards | ASTM B348, B265, B861, AMS 4928 |

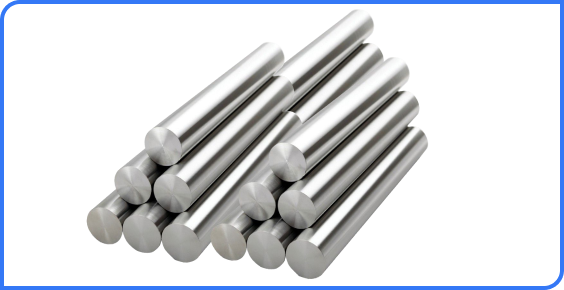

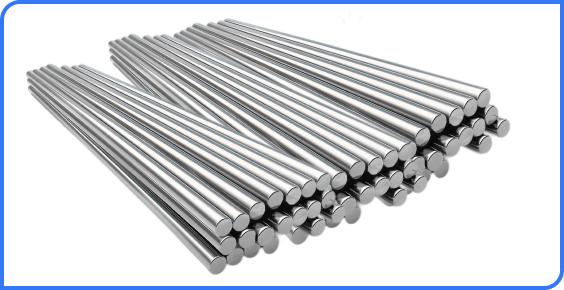

| Forms Available | Bars, Sheets, Tubes, Wires, Plates |
| Finish | Bright, Annealed, Pickled |
| Manufacturing Process | Rolled, Forged, Seamless, Welded |
| Property | Value |
|---|---|
| Tensile Strength | 345 – 950 MPa |
| Yield Strength | 275 – 880 MPa |
| Elongation | 10% – 25% |
| Hardness | 160 – 400 HV |
| Density | 4.43 g/cm³ |
| Element | Composition (%) |
|---|---|
| Titanium (Ti) | ≥ 90 |
| Aluminum (Al) | 5.5 – 6.75 (Grade 5 only) |
| Vanadium (V) | 3.5 – 4.5 (Grade 5 only) |
| Iron (Fe) | ≤ 0.30 |
| Oxygen (O) | ≤ 0.20 |
| Carbon (C) | ≤ 0.08 |
| Nitrogen (N) | ≤ 0.05 |
| Hydrogen (H) | ≤ 0.015 |
| Standard | Equivalent Grade |
|---|---|
| ASTM | Grade 2, Grade 5, Grade 7 |
| UNS | R50400 (Gr. 2), R56400 (Gr. 5) |
| EN | 3.7035 (Gr. 2), 3.7165 (Gr. 5) |
| ISO | Ti-2, Ti-6Al-4V |
| Product Type | Size (mm) | Weight per Meter (kg) |
|---|---|---|
| Titanium Round Bar | Ø 25 | 3.45 |
| Titanium Sheet | 1000 x 1000 x 3 | 12.45 |
| Titanium Pipe | 1″ SCH 40 | 2.71 |
| Titanium Wire | Ø 3 | 0.06 |
| Titanium Plate | 1000 x 2000 x 10 | 83.00 |
Applications of Titanium
Construction &
Infrastructure
Automotive & Heavy
Equipment
Manufacturing &
Fabrication
Medical & Laboratory
Equipment
Electrical &
Electronics Assembly
Oil, Gas & Petrochemical
Installations
Do you have questions?
What are the primary advantages of titanium?
Titanium is lightweight, highly corrosion-resistant, and offers excellent strength-to-weight ratio, making it ideal for aerospace, marine, and medical industries.
Is titanium suitable for high-temperature applications?
Yes, titanium can withstand temperatures up to 600°C and maintains structural stability in extreme heat environments.
Can titanium be welded or machined easily?
Titanium requires specialized techniques for welding and machining but offers high precision and stability when handled correctly.
What are the common grades of titanium used in industry?
Grades like Titanium Grade 2 (commercially pure) and Grade 5 (Ti-6Al-4V) are widely used in chemical processing, aerospace, and marine systems.
