Threaded Elbow
What is a Threaded Elbow?
A Threaded Elbow is a pipe fitting designed to change the direction of flow in a piping system, usually at angles of 90° or 45°. It connects two threaded pipe ends and eliminates the need for welding, making it ideal for quick and easy installations in low to medium-pressure piping systems. These elbows are commonly used in plumbing, oil & gas, chemical processing, marine, and fire protection applications.
Threaded elbows are available in NPT, BSP, BSPT, and ISO metric threads, and are manufactured from materials such as carbon steel, stainless steel, and alloy steel to suit diverse industrial environments.
Key Features
- Secure Directional Flow – Provides leak-resistant flow changes in piping systems.
- Tool-Free Installation – No welding needed; easy to screw in or replace.
- Angle Variants – Available in 45° and 90° configurations to suit layout needs.
- Threaded for Tight Sealing – Ensures mechanical seal with NPT, BSPT, or BSP threads.
- Standards-Compliant – Manufactured as per ASME, ASTM, and DIN specifications.

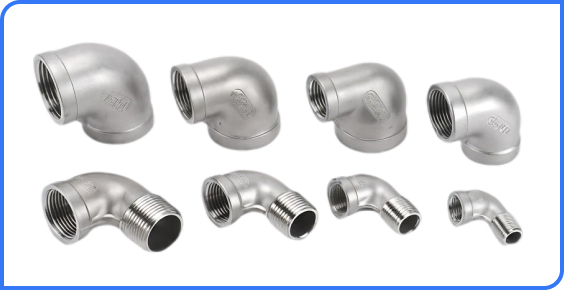

Types of Threaded Elbows
- 90° Threaded Elbow
- 45° Threaded Elbow
- Reducing Threaded Elbow
- Street Elbow (Male-Female Threaded)
Specifications
Mechanical Properties
Chemical Composition
Equivalent Grades
Weight Chart
Specifications
| Parameter | Details |
|---|---|
| Sizes | ⅛" to 4" (DN6 – DN100) |
| Thread Standards | NPT, BSP, BSPT, ISO Metric |
| Pressure Ratings | Class 2000 / 3000 / 6000 |
| Material Options | Carbon Steel, SS 304 / 316, Alloy Steel |
| Standards | ASME B16.11, MSS-SP-83, BS 3799 |
| Manufacturing | Forged, Machined, Thread Rolled |
| Property | Typical Value | |
|---|---|---|
| Tensile Strength | 485 – 700 MPa | |
| Yield Strength | 250 – 450 MPa | |
| Elongation | 20% – 30% | |
| Hardness | 125 – 250 HB |
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.08 – 0.35 |
| Manganese (Mn) | 0.60 – 1.65 |
| Silicon (Si) | 0.15 – 0.80 |
| Chromium (Cr) | 18.0 – 20.0 (Stainless Steel) |
| Nickel (Ni) | 8.0 – 10.5 (SS 304/316) |
| Molybdenum (Mo) | 2.0 – 3.0 (for F316 only) |
| Phosphorus (P) | ≤ 0.035 |
| Sulfur (S) | ≤ 0.040 |
| Iron (Fe) | Balance |
| Standard | Equivalent Grade |
|---|---|
| ASTM | A105 (CS), A182 F304/F316 (SS) |
| ASME | B16.11 |
| MSS-SP | SP-83 |
| BS | 3799 |
| DIN | 2950, 2975 |
| Elbow Type | Size (inches) | Weight per 100 pcs (kg) |
|---|---|---|
| 90° Elbow | ½" | 8.20 |
| 90° Elbow | 1" | 11.90 |
| 45° Elbow | ¾" | 9.30 |
| Street Elbow | 1½" | 13.60 |
Applications of Threaded Elbows
Construction &
Infrastructure
Automotive & Heavy
Equipment
Manufacturing &
Fabrication
Medical & Laboratory
Equipment
Electrical &
Electronics Assembly
Oil, Gas & Petrochemical
Installations
Do you have questions?
What is the purpose of a threaded elbow in piping?
It redirects flow at a 45° or 90° angle without welding, allowing for flexibility in piping layouts.
Are reducing elbows available with threaded ends?
Yes. Reducing threaded elbows are used to connect different pipe sizes while changing direction.
Which thread standards are supported?
We supply elbows in NPT, BSP, BSPT, and ISO Metric thread types.
Can threaded elbows be reused?
Yes. If the threads remain intact and sealing is properly done, they can be reused.
