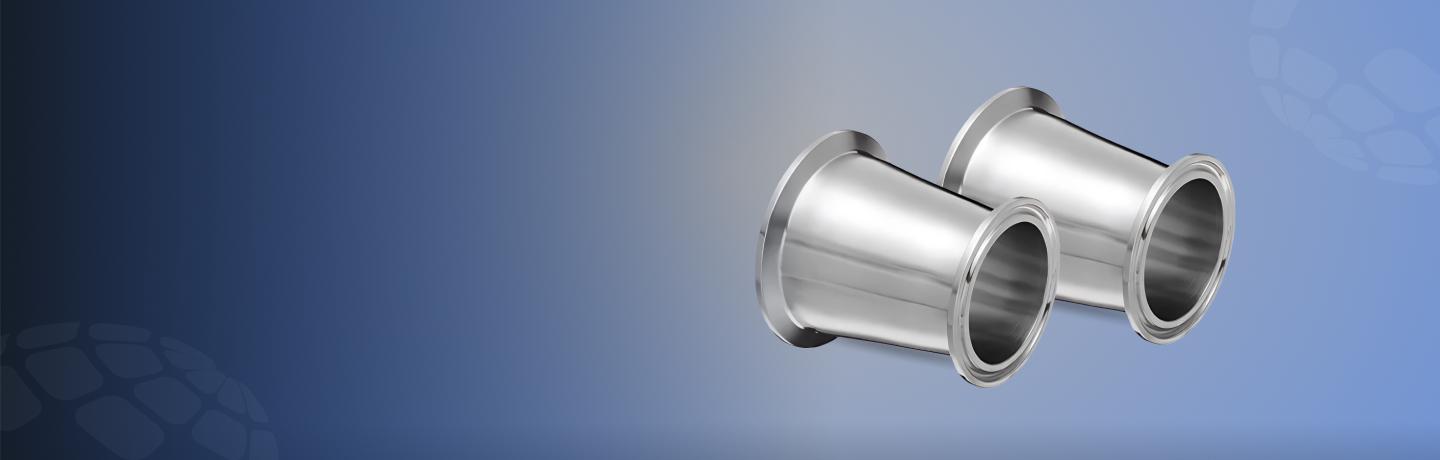

TC Reducer
What is a TC Reducer

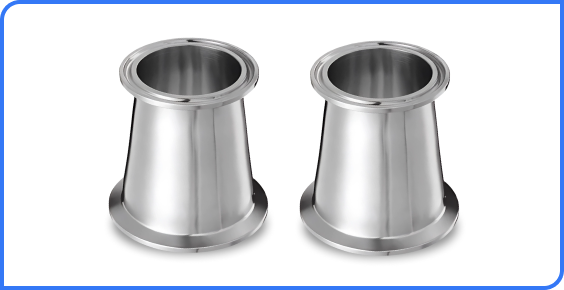

A TC Reducer (Tri-Clamp Reducer) is a sanitary fitting designed to connect two pipes of different diameters in hygienic process systems. It ensures a smooth transition between varying pipe sizes without compromising the cleanliness or flow integrity. TC reducers use tri-clamp connections for easy assembly, disassembly, and cleaning, making them ideal for industries requiring strict hygiene standards.
They are widely used in food processing, dairy, beverage, pharmaceutical, and biotech applications where sanitary conditions and reliable flow control are critical.
Key Features
- Tri-Clamp Connection – Quick, tool-free installation and removal
- Smooth Transition – Reduces turbulence and prevents bacterial buildup
- Sanitary Design – Complies with 3A and FDA standards
- Multiple Sizes – Available in concentric and eccentric designs
- Material Options – High-quality stainless steel for corrosion resistance
Specifications
Mechanical Properties
Chemical Composition
Equivalent Grades
Weight Chart
Specifications
| Parameter | Specification |
|---|---|
| Size Range | ½” x ¼” to 6″ x 4″ |
| Type | Concentric & Eccentric Reducers |
| Connection Type | Tri-Clamp / Clamp Ends |
| Surface Finish | Ra ≤ 0.8 µm (Standard) |
| Material Options | SS304, SS316, SS316L |
| Standards | 3A, ASME BPE, DIN 11850, ISO 2852 |
| Property | Value |
|---|---|
| Tensile Strength | Up to 600 MPa (SS316L) |
| Yield Strength | ~240 MPa (SS316L) |
| Operating Pressure | Up to 10 bar (based on system design) |
| Temperature Range | -40°C to 200°C (material dependent) |
| Element | Percentage (%) |
|---|---|
| Carbon (C) | ≤ 0.03 |
| Manganese (Mn) | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 |
| Chromium (Cr) | 16.0 – 18.0 |
| Nickel (Ni) | 10.0 – 14.0 |
| Molybdenum (Mo) | 2.0 – 3.0 |
| Iron (Fe) | Balance |
| Standard | Equivalent Grade |
|---|---|
| ASTM | A403 WP316L |
| DIN | 1.4404 |
| EN | X2CrNiMo17-12-2 |
| ISO | 1127 / 2037 |
| Reducer Size (Inch) | Type | Approx. Weight (kg) |
|---|---|---|
| 1.5″ x 1″ | Concentric | 0.15 |
| 2″ x 1.5″ | Concentric | 0.25 |
| 3″ x 2″ | Concentric | 0.50 |
| 4″ x 3″ | Eccentric | 0.85 |
Applications of TC Reducer
Construction &
Infrastructure
Automotive & Heavy
Equipment
Manufacturing &
Fabrication
Medical & Laboratory
Equipment
Electrical &
Electronics Assembly
Oil, Gas & Petrochemical
Installations
Do you have questions?
What is the use of a TC Reducer?
TC Reducers are used to connect two different pipe sizes in sanitary systems while maintaining hygienic standards and smooth flow transitions.
What is the difference between concentric and eccentric TC reducers?
Concentric reducers align both pipe centers, ideal for vertical piping. Eccentric reducers offset one end, preventing air pockets in horizontal lines.
Are TC reducers corrosion-resistant?
Yes, especially those made from SS316L, which offers excellent resistance to corrosion, making them suitable for CIP/SIP environments.
an TC reducers be customized?
Yes, custom reducer sizes, surface finishes, and material grades can be manufactured as per project or industry requirements.
