What is a TC NRV

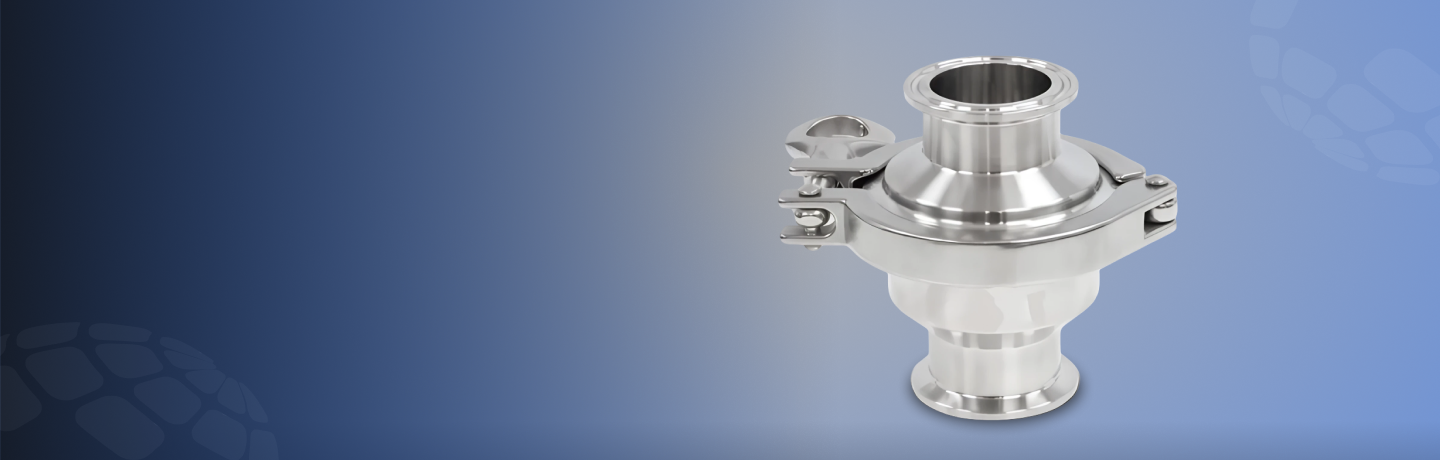

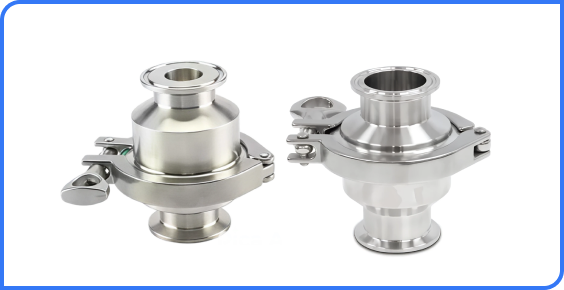

A TC NRV, or Tri-Clamp Non-Return Valve, is a one-way flow control valve used in sanitary piping systems to prevent backflow. Designed with a Tri-Clamp (Tri-Clover) connection, this valve allows fluid to flow in one direction while automatically closing when reverse flow is detected—ensuring hygienic process integrity.
TC NRVs are essential in dairy, food, beverage, pharmaceutical, and biotechnology industries, where maintaining product purity, preventing contamination, and ensuring CIP/SIP compatibility are critical. These valves come with easy-to-disassemble designs for frequent cleaning and sterilization.
Key Features
- Prevents Backflow – Ensures one-way fluid flow, protecting upstream equipment
- Sanitary Design – Easy-to-clean, dead-leg-free construction
- Tri-Clamp Compatibility – Quick installation and removal
- Spring or Ball Type Options – Suited for different flow and pressure conditions
- FDA & USP VI Materials – Ideal for hygienic and aseptic applications
Specifications
Mechanical Properties
Chemical Composition
Equivalent Grades
Weight Chart
Specifications
| Parameter | Specification |
|---|---|
| Size Range | ½” to 4″ (DN15 to DN100) |
| Connection Type | Tri-Clamp / Tri-Clover |
| Body Material | SS316 / SS316L |
| Seal Material | EPDM, Silicone, PTFE, Viton |
| Pressure Rating | Up to 10 bar (145 psi) |
| Temperature Range | -20°C to +200°C (seal dependent) |
| Opening Pressure | 0.1 to 0.3 bar |
| Standards | ASME BPE, 3-A, ISO 2852, DIN 32676 |
| Property | Value |
|---|---|
| Tensile Strength | 485 MPa (min) |
| Yield Strength | 170 MPa (min) |
| Hardness | ≤ 95 HRB |
| Corrosion Resistance | Excellent in food-grade and chemical environments |
| Material | Max Temp (°C) | Key Strength |
|---|---|---|
| EPDM | 135°C | Steam and chemical resistance |
| Silicone | 200°C | Thermal flexibility |
| PTFE | 260°C | Superior chemical inertness |
| Viton | 200°C | Oil, acid & solvent resistance |
| Standard | Equivalent Description |
|---|---|
| FDA | 21 CFR 177.2600 (Seal Materials) |
| USP | Class VI Certification |
| 3-A Sanitary | Hygienic Design Compliance |
| ASME BPE | Biopharma Equipment Standard |
| Size (Inch) | Material | Approx. Weight (grams/pc) |
|---|---|---|
| 1″ | SS316L | 650 |
| 2″ | SS316L | 950 |
| 3″ | SS316L | 1400 |
| 4″ | SS316L | 2100 |
