TC Hose Ferrule
What are TC Hose Ferrule?

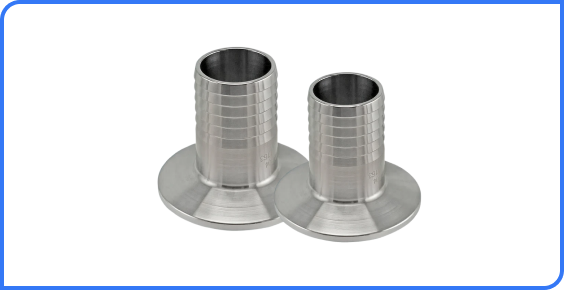

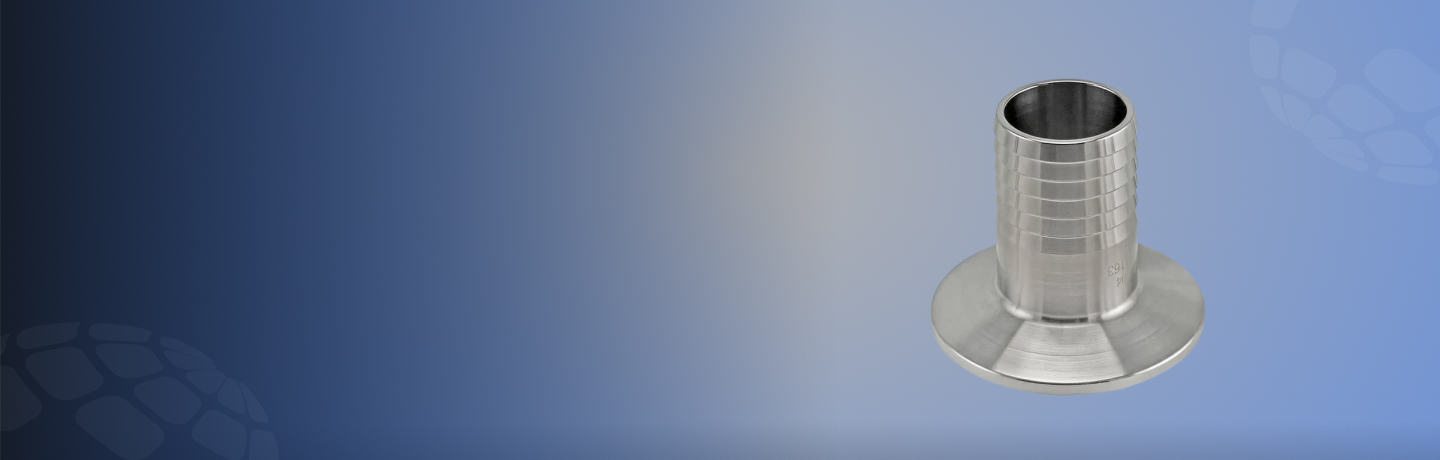

TC Hose Ferrule is a type of sanitary hose fitting designed to connect flexible hoses with tri-clamp (TC) systems in hygienic process lines. It provides a secure, leak-proof connection between a hose and other process equipment, ensuring smooth fluid transfer while maintaining high sanitary standards.
Asiad Steel Industries manufactures and exports premium-grade TC Hose Ferrule under the Racer brand, ensuring superior finish, durability, and compliance with ASME BPE, ISO 2852, and DIN 32676 sanitary standards.
Key Features
Leak-Proof
Jointing
Sanitary
Design
Easy to
Clean
Standards
Compliant
Corrosion
Resistant
Specifications
| Specification Category | Parameter / Feature | Details / Options |
|---|---|---|
| Size Range | Hose Size | ½” to 4” (DN15 – DN100) |
| Connection Type | End Type | Hose Tail × TC Ferrule End |
| Pressure Ratings | Working Pressure | Up to 10 bar (dependent on hose type & size) |
| Material Options | Stainless Steel Grades | SS 304, SS 304L, SS 316, SS 316L |
| Standards & Certifications | ASME / ISO / DIN | ASME BPE, ISO 2852, DIN 32676, SMS 3017 |
| Certifications | – | ISO 9001, FDA Compliant, 3.1 Material Certificate, PED 2014/68/EU |
| Wall Thickness | As per Standard | SCH 5S, SCH 10S, SCH 40S |
| Ferrule Type | Sanitary Ferrule | Short Ferrule / Long Ferrule / Weld Type |
| End Connections | Hose Tail | Barbed / Plain / Serrated |
| Surface Finish | Internal / External Finish | Mirror / Electro-Polished (Ra ≤ 0.8 µm) |
| Testing & Inspection | Quality Tests | Hydrostatic, Pneumatic, Visual & Dimensional |
| Optional Finishes | Surface Coating | Pickled, Passivated, Electro-Polished |
Dimensions
| Hose Size (inch) | Ferrule OD (mm) | Hose Tail OD (mm) | Length (mm) | Approx. Weight (kg) |
|---|---|---|---|---|
| ½” | 25 | 12.7 | 40 | 0.05 |
| ¾” | 34 | 19.0 | 45 | 0.07 |
| 1” | 50.5 | 25.4 | 50 | 0.10 |
| 1½” | 50.5 | 38.1 | 55 | 0.14 |
| 2” | 64 | 50.8 | 60 | 0.18 |
| 2½” | 77.5 | 63.5 | 65 | 0.22 |
| 3” | 91 | 76.2 | 70 | 0.28 |
| 4” | 119 | 101.6 | 75 | 0.40 |
Mechanical Properties
| Property | Value | Unit / Standard |
|---|---|---|
| Tensile Strength | 485 – 750 | MPa |
| Yield Strength | 170 – 450 | MPa |
| Hardness | 120 – 200 | HB (Brinell) |
| Elongation | ≥ 30 | % |
| Density | 7.8 – 8.0 | g/cm³ |
| Modulus of Elasticity | ~200 | GPa |
| Corrosion Resistance | Excellent | – |
| Surface Roughness | ≤ 0.8 | µm (Ra) |
| Operating Temperature | -40 to 400 | °C |
| Pressure Rating | Up to 10 bar | – |
| Weldability | Excellent (TIG / Orbital) | – |
Chemical Composition
| Element | SS 304 (%) | SS 304L (%) | SS 316 (%) | SS 316L (%) |
|---|---|---|---|---|
| Chromium (Cr) | 18.0 – 20.0 | 18.0 – 20.0 | 16.0 – 18.0 | 16.0 – 18.0 |
| Nickel (Ni) | 8.0 – 10.5 | 8.0 – 12.0 | 10.0 – 14.0 | 10.0 – 14.0 |
| Carbon (C) | ≤ 0.08 | ≤ 0.03 | ≤ 0.08 | ≤ 0.03 |
| Manganese (Mn) | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 |
| Iron (Fe) | Balance | Balance | Balance | Balance |
| Molybdenum (Mo) | — | — | 2.0 – 3.0 | 2.0 – 3.0 |
Applications of TC Hose Ferrule
Dairy & Food Processing
Units
Beverage Plants
Pharmaceutical
Cosmetic & Personal
Care
Chemical & Enzyme
Production
Laboratory and Testing
Facilities
Do you have questions?
What is the purpose of a TC Hose Ferrule?
Can TC Hose Ferrules be reused?
Are these ferrules suitable for high-temperature processes?
What types of hoses can be used with TC Hose Ferrules?
