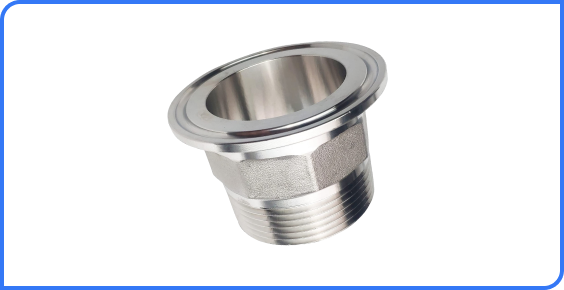

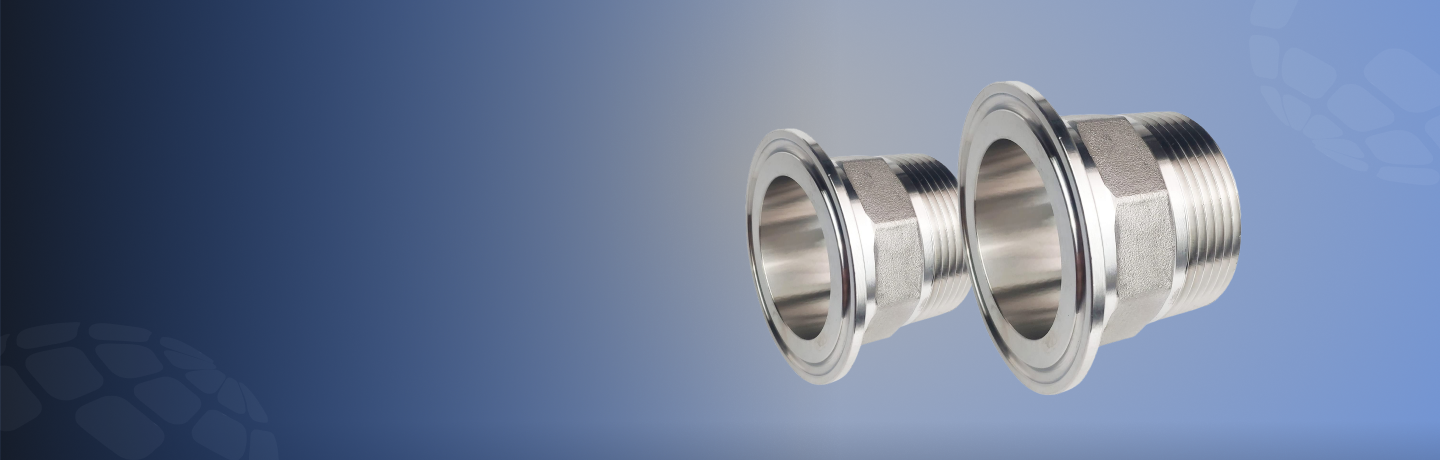

TC Ferrule Male
What is a TC Ferrule Male?
A TC Ferrule Male is a precision sanitary fitting with a flanged or stub-end that connects to a female ferrule using a tri-clamp and gasket, ensuring a secure and hygienic joint in dairy, food & beverage, and pharmaceutical systems. It enables easy disassembly and supports clean-in-place (CIP) and sterilize-in-place (SIP) procedures.
Asaid Steel Industries is a trusted TC Ferrule Male supplier, offering SS 304 and SS 316L ferrules crafted to meet global sanitary standards.
Key Features
Leak-Proof
Jointing
Sanitary
Design
Easy to
Clean
Standards
Compliant
Corrosion
Resistant
Specifications
| Specification Category | Parameter / Feature | Details / Options |
|---|---|---|
| Size Range | Nominal Size | ½” to 4″ (15 mm – 100 mm, custom sizes available) |
| Pressure Ratings | ANSI / ASME Class | Class 150, 300 |
| PN Ratings | PN10, PN16, PN25 | |
| Valve Type | Product Type | TC Ferrule Male, Hygienic / Sanitary Design |
| Material Options | Body | Stainless Steel SS304, SS316, SS316L |
| Seals / Gaskets | EPDM, PTFE, Silicone (Food Grade) | |
| Standards & Certifications | ASTM | ASTM A351, ASTM A182 |
| ASME / ANSI | ASME BPE, ASME B16.34 | |
| European Standards | EN 1092, ISO 2852 | |
| Certifications | 3A Sanitary, FDA, ISO 9001, CE Marked | |
| Design Features | End Connections | Tri-Clamp / TC Ferrule Male |
| Operating Temperature | -20°C to 180°C (depending on seal material) | |
| Surface Finish | Ra ≤ 0.8 µm internal, Polished / Pickled external | |
| Tolerance | Dimensional Tolerance | As per ASME BPE / EN Standards |
| Coating & Surface Finish | Anti-Corrosion | Passivation, Electro-Polished |
| Optional Coatings | PTFE Coating, Nickel Plating | |
| Testing & Inspection | Pressure Testing | Hydrostatic, Pneumatic |
| Non-Destructive Testing | Visual, Dye Penetrant (DPT) | |
| Destructive Testing | Seal Integrity Test, Torque Test | |
| Operating Features | Operation | Manual / Tool-assisted Assembly |
| Leakage Rate | Bubble Tight / Zero Leakage as per API 598 |
Dimensions
| Nominal Size (DN / NPS) | Face-to-Face Length (L) | End Diameter (D) | Ferrule ID (d) | Weight per Piece |
|---|---|---|---|---|
| ½” (15 mm) | 40 mm | 21 mm | 15 mm | 0.35 kg |
| ¾” (20 mm) | 45 mm | 27 mm | 20 mm | 0.5 kg |
| 1″ (25 mm) | 50 mm | 33 mm | 25 mm | 0.75 kg |
| 1½” (40 mm) | 65 mm | 50 mm | 40 mm | 1.2 kg |
| 2″ (50 mm) | 75 mm | 60 mm | 50 mm | 1.8 kg |
| 3″ (80 mm) | 95 mm | 85 mm | 80 mm | 3.2 kg |
| 4″ (100 mm) | 110 mm | 105 mm | 100 mm | 4.5 kg |
Mechanical Properties
| Property | Value | Unit / Standard |
|---|---|---|
| Tensile Strength | 485 – 750 | MPa (SS304 / SS316 / SS316L) |
| Yield Strength | 170 – 450 | MPa |
| Hardness | 120 – 200 | HB (Brinell) |
| Elongation | ≥ 20 – 30 | % |
| Density | 7.9 – 8.0 | g/cm³ |
| Impact Toughness | ≥ 27 – 70 | J (Charpy, grade-dependent) |
| Modulus of Elasticity (E) | ~200 | GPa |
| Fatigue Strength | 250 – 450 | MPa |
| Corrosion Resistance | Excellent (SS316L > SS316 > SS304) | – |
| Thermal Conductivity | 15 – 25 | W/m·K |
| Coefficient of Thermal Expansion | 16 – 18 ×10⁻⁶ | /°C |
| Yield Ratio (YS/UTS) | 0.40 – 0.65 | – |
| Poisson’s Ratio | 0.27 – 0.30 | – |
| Brinell Hardness Range | 120 – 200 | HB |
| Surface Finish | Ra ≤ 0.8 µm internal, Polished external | – |
| Operating Temperature Range | -20 to 180 | °C (depending on seal material) |
| Pressure Rating | Class 150, 300 / PN10 – PN25 | ASME B16.34 / EN Standards |
| Leakage Rate | Bubble tight | API 598 |
Chemical Composition
| Element | SS 304 (%) | SS 304L (%) | SS 316 (%) | SS 316L (%) |
|---|---|---|---|---|
| Chromium (Cr) | 18.0 – 20.0 | 18.0 – 20.0 | 16.0 – 18.0 | 16.0 – 18.0 |
| Nickel (Ni) | 8.0 – 10.5 | 8.0 – 12.0 | 10.0 – 14.0 | 10.0 – 14.0 |
| Carbon (C) | ≤ 0.08 | ≤ 0.03 | ≤ 0.08 | ≤ 0.03 |
| Manganese (Mn) | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 |
| Iron (Fe) | Balance | Balance | Balance | Balance |
| Molybdenum (Mo) | — | — | 2.0 – 3.0 | 2.0 – 3.0 |
Applications of TC Ferrule Male
Dairy & Food Processing
Units
Beverage Plants
Pharmaceutical
Cosmetic & Personal
Care
Chemical & Enzyme
Production
Laboratory and Testing
Facilities
