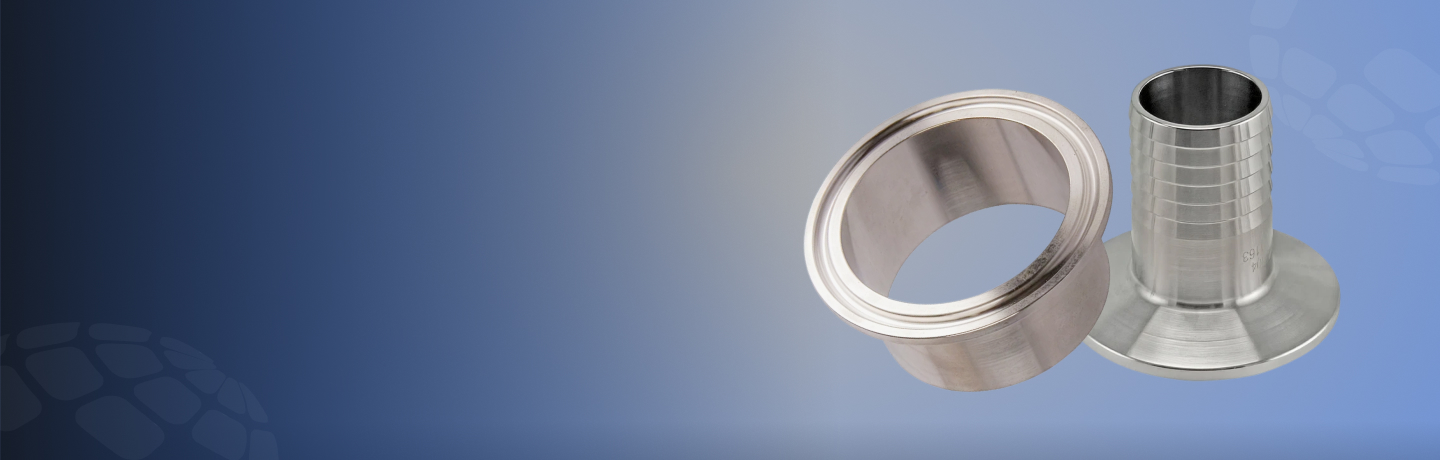

TC Ferrule
What are TC Ferrules?

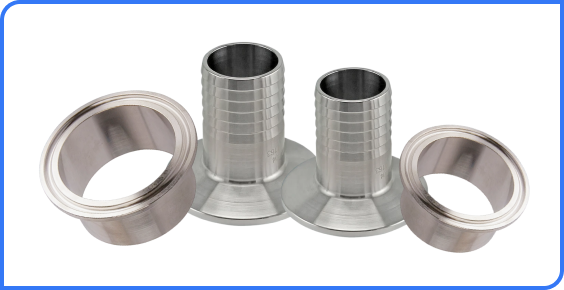

A TC Ferrule (Tri-Clamp Ferrule) is a crucial connection component in sanitary piping systems, providing a smooth, secure interface between pipes and fittings. These ferrules are welded onto process lines or vessels and allow for quick, clamp-based assembly using gaskets and tri-clamp connectors. Used extensively in food processing, beverage, dairy, biotech, and pharmaceutical industries.
Asiad Steel Industries is a trusted supplier of premium-quality TC Ferrules in various sizes, surface finishes, and stainless steel grades.
Key Features
Leak-Proof
Jointing
Sanitary
Design
Easy to
Clean
Standards
Compliant
Corrosion
Resistant
Types of TC Ferrule
Specifications
| Specification Category | Parameter / Feature | Details / Options |
|---|---|---|
| Size Range | Nominal Pipe Size (NPS) | ½” to 48” (DN15 – DN1200) |
| Pressure Ratings | ANSI / ASME Class | Class 150, 300, 600, 900, 1500, 2500 |
| PN Ratings | PN | PN6, PN10, PN16, PN25, PN40, PN64 |
| Fitting Types | Butt Weld Fittings | Elbow (45°, 90°, 180°), Tee (Equal & Reducing), Reducer (Concentric, Eccentric), End Cap, Stub End |
| Socket Weld Fittings | Elbow, Tee, Cross, Coupling, Cap | |
| Threaded Fittings | Elbow, Tee, Coupling, Union, Plug, Cap | |
| Bar Stock Threaded Fittings | High-pressure threaded pipe fittings (Elbow, Tee, Cross, Coupling, Union, Plug, Cap) manufactured from solid bar stock for superior strength | |
| Investment Casting Fittings | Complex-shaped threaded fittings (Elbow, Tee, Coupling, Cap, Union) manufactured through precision casting for accuracy & smooth surface finish | |
| Material Options | Stainless Steel | SS 304, SS 304L, SS 316, SS 316L, SS 321 |
| Standards & Certifications | ASME / ANSI | ASME B16.9 (Butt Weld), ASME B16.11 (Socket Weld & Threaded), ASME B16.28 (Short Radius Elbows & Returns) |
| ASTM | ASTM A234, ASTM A403, ASTM B366 | |
| European Standards | DIN 2605, DIN 2615, DIN 2616, EN 10253 | |
| Certifications | ISO 9001, PED 2014/68/EU, NACE MR0175, IBR Approved | |
| Design Features | Wall Thickness | As per ASME B36.10 (CS), ASME B36.19 (SS), customized options |
| Bend Radius (Elbows) | Short Radius (SR), Long Radius (LR) | |
| End Connections | Beveled Ends, Plain Ends, Threaded, Socket Weld Ends | |
| Tolerance | As per ASME/ANSI standards | |
| Coating & Surface Finish | Anti-Corrosion Coating | Rust Preventive Oil, Black Oxide, Hot-Dip Galvanized |
| Optional Coatings | Epoxy, PTFE, Polyurethane | |
| Surface Finish | Machined, Pickled, Polished, Passivated | |
| Testing & Inspection | Pressure Testing | Hydrostatic, Pneumatic |
| Non-Destructive Testing | Radiography (RT), Ultrasonic (UT), Magnetic Particle (MPI), Dye Penetrant (DPT) | |
| Destructive Testing | Tensile, Hardness, Impact |
Dimensions
| Nominal Pipe Size (NPS / DN) | Outer Diameter (OD) mm | Inner Diameter (ID) mm | Wall Thickness (mm) | Length (L) mm | Clamp Size (inch) | Remarks |
|---|---|---|---|---|---|---|
| ½” (DN15) | 21.3 | 15 | 3.15 | 25 | ½” | Standard ferrule |
| ¾” (DN20) | 26.9 | 20 | 3.68 | 28 | ¾” | Standard ferrule |
| 1” (DN25) | 33.7 | 25 | 4.19 | 30 | 1” | Standard ferrule |
| 1½” (DN40) | 48.3 | 40 | 4.78 | 38 | 1½” | Standard ferrule |
| 2” (DN50) | 60.3 | 50 | 5.54 | 45 | 2” | Standard ferrule |
| 2½” (DN65) | 73 | 65 | 5.54 | 50 | 2½” | Standard ferrule |
| 3” (DN80) | 88.9 | 80 | 6.02 | 55 | 3” | Standard ferrule |
| 4” (DN100) | 114.3 | 100 | 6.55 | 65 | 4” | Standard ferrule |
| 6” (DN150) | 168.3 | 150 | 7.11 | 80 | 6” | Standard ferrule |
| 8” (DN200) | 219.1 | 200 | 8.18 | 100 | 8” | Standard ferrule |
| 10” (DN250) | 273 | 250 | 8.56 | 120 | 10” | Standard ferrule |
| 12” (DN300) | 323.9 | 300 | 9.53 | 140 | 12” | Standard ferrule |
Mechanical Properties
| Property | Value | Unit / Standard |
|---|---|---|
| Tensile Strength | 485 – 750 | MPa (Stainless Steel) |
| Yield Strength | 170 – 450 | MPa |
| Hardness | 120 – 200 | HB (Brinell) |
| Elongation | ≥ 20 – 30 | % |
| Density | 7.8 – 8.0 | g/cm³ |
| Impact Toughness | ≥ 27 – 70 | J (Charpy, grade-dependent) |
| Modulus of Elasticity (E) | ~200 | GPa |
| Fatigue Strength | 250 – 450 | MPa |
| Corrosion Resistance | Excellent | – |
| Thermal Conductivity | 15 – 50 | W/m·K |
| Coefficient of Thermal Expansion | 11 – 17 ×10⁻⁶ | /°C |
| Yield Ratio (YS/UTS) | 0.40 – 0.65 | – |
| Poisson’s Ratio | 0.27 – 0.30 | – |
| Brinell Hardness Range | 120 – 200 | HB |
| Surface Finish | Serrated / Stock / Smooth finish per ASME B16.5 | – |
| Welding Type | Butt-welded or Slip-on (depending on piping system) | – |
| Operating Temperature Range | -46 to 600 | °C (material-dependent) |
| Pressure Rating | Class 150, 300, 600, 900, 1500, 2500 | ASME B16.5 Standards |
Chemical Composition
| Element | SS 304 (%) | SS 304L (%) | SS 316 (%) | SS 316L (%) |
|---|---|---|---|---|
| Carbon (C) | ≤ 0.08 | ≤ 0.03 | ≤ 0.08 | ≤ 0.03 |
| Manganese (Mn) | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 |
| Chromium (Cr) | 18.0 – 20.0 | 18.0 – 20.0 | 16.0 – 18.0 | 16.0 – 18.0 |
| Nickel (Ni) | 8.0 – 10.5 | 8.0 – 12.0 | 10.0 – 14.0 | 10.0 – 14.0 |
| Molybdenum (Mo) | — | — | 2.0 – 3.0 | 2.0 – 3.0 |
| Nitrogen (N) | — | — | ≤ 0.10 | ≤ 0.10 |
| Iron (Fe) | Balance | Balance | Balance | Balance |
Applications of TC Ferrules
Dairy & Food Processing
Units
Beverage Plants
Pharmaceutical
Cosmetic & Personal
Care
Chemical & Enzyme
Production
Laboratory and Testing
Facilities
Do you have questions?
Can TC Ferrules be welded to any pipe material?
What’s the difference between short and long weld ferrules?
Do TC Ferrules support CIP and SIP?
Are custom ferrule sizes available?
