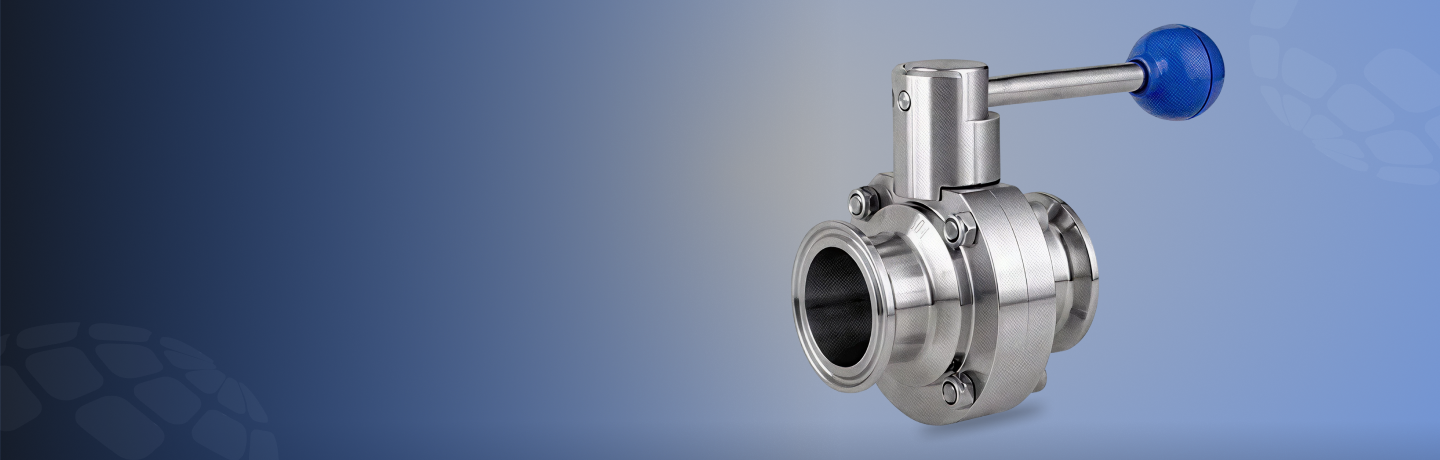

TC Butterfly Valves
What are TC Butterfly Valves?

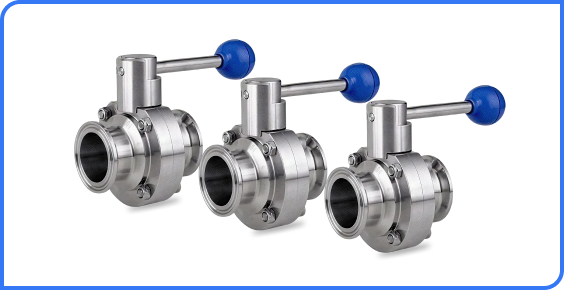

TC Butterfly Valves (Tri-Clamp Butterfly Valves) are sanitary flow control valves designed for hygienic fluid handling in industries such as food & beverage, dairy, pharmaceuticals, and cosmetics. They use a centrally mounted disc to regulate flow, offering quick shut-off and throttling functions with minimal fluid retention.
Asiad Steel Industries is a leading manufacturer and supplier of high-performance TC Butterfly Valves, built to meet global sanitary standards and customized to suit a wide range of flow control applications.
Key Features
- Hygienic Design – Full-bore, crevice-free valve body for sterile fluid control.
- Easy Maintenance – Removable disc and seals for quick cleaning and replacement.
- Low Torque Operation – Quarter-turn handle for fast, ergonomic control.
- Versatile Sealing – EPDM, PTFE, and silicone options for varied applications.
- CIP/SIP Compatible – Designed for seamless use in automated cleaning cycles.
Types of TC Butterfly Valves
- Manual TC Butterfly Valves
- Pneumatic Actuated Butterfly Valves
- Electric Actuated Butterfly Valves
- Pull Handle or Trigger Handle Valves
- Cavity-Filled Hygienic Valves
Specifications
Mechanical Properties
Chemical Composition
Equivalent Grades
Weight Chart
Specifications
| Parameter | Details |
|---|---|
| Size Range | ½" to 6" (DN15 to DN150) |
| End Connection | Tri-Clamp / Sanitary Clamp |
| Operation | Manual / Pneumatic / Electric |
| Material | SS 304, SS 316L |
| Sealing Material | EPDM / Silicone / PTFE |
| Pressure Rating | Up to 10 bar |
| Temperature Range | -10°C to +180°C |
| Standards | 3A, ASME BPE, DIN, ISO, SMS |
| Property | Value |
|---|---|
| Tensile Strength | 485 – 620 MPa |
| Yield Strength | 170 – 310 MPa |
| Hardness | ≤ 200 HB |
| Operating Torque | Low (Manual & Actuated) |
| Element | Composition (%) |
|---|---|
| Chromium | 17.0 – 18.5 |
| Nickel | 8.0 – 10.5 |
| Carbon | ≤ 0.03 |
| Molybdenum | 2.0 – 2.5 (316L) |
| Manganese | ≤ 2.00 |
| Phosphorus | ≤ 0.040 |
| Sulfur | ≤ 0.030 |
| Iron | Balance |
| Standard | Equivalent Grade |
|---|---|
| ASTM | A351 CF8M / CF3M |
| DIN | 1.4401 / 1.4435 |
| EN | X2CrNiMo18-14-3 |
| JIS | SUS 316 / SUS 316L |
| Valve Type | Size (inch) | Weight per 100 pcs (kg) |
|---|---|---|
| Manual Butterfly Valve | 1" | 82.00 |
| Pneumatic Valve | 2" | 165.00 |
| Electric Actuated | 3" | 210.00 |
Applications of TC Butterfly Valves
Construction &
Infrastructure
Automotive & Heavy
Equipment
Manufacturing &
Fabrication
Medical & Laboratory
Equipment
Electrical &
Electronics Assembly
Oil, Gas & Petrochemical
Installations
Do you have questions?
What is the main advantage of using a butterfly valve in sanitary systems?
Butterfly valves offer quick shut-off, minimal dead space, and are easy to clean, making them ideal for hygienic processing.
Can TC Butterfly Valves be automated?
Yes, we offer both pneumatic and electric actuated butterfly valves for process automation and remote control.
What seal materials are available for various applications?
We provide EPDM for general use, PTFE for chemical resistance, and silicone for high-temperature applications.
Are your butterfly valves compatible with global sanitary fittings?
Absolutely. Our valves are compliant with 3A, DIN, SMS, ISO, and ASME BPE standards for universal integration.
