TC Bend
What are TC Bends?

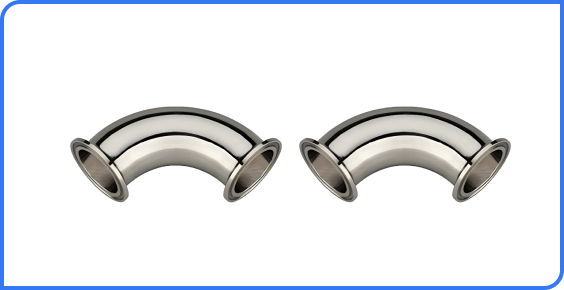

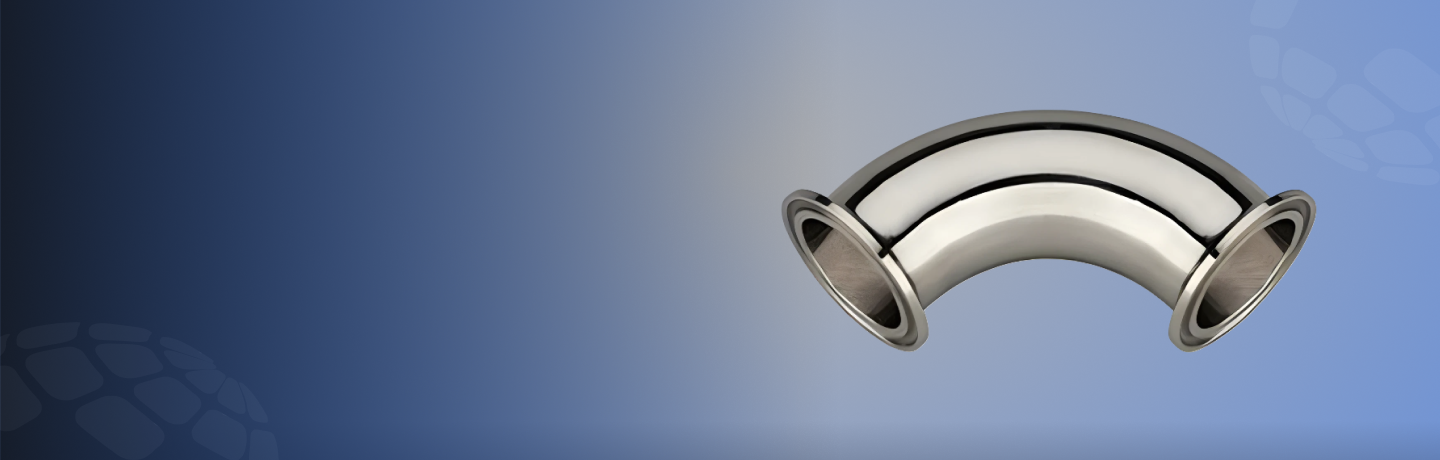

TC Bend (Tri-Clover Bend) is a type of sanitary pipe fitting used to change the direction of flow in hygienic process systems. Commonly made from stainless steel, TC bends ensure smooth, crevice-free transitions ideal for clean-in-place (CIP) operations. They are widely used in industries that demand sterile and contamination-free fluid transport.
Asiad Steel Industries is a leading manufacturer and supplier of TC Bends in various angles and sizes for hygienic process piping.
Key Features
- Hygienic Design – Polished internal surface for clean fluid transfer.
- Leak-Proof Connection – Uses Tri-Clover clamps with gaskets for a tight seal.
- Corrosion Resistance – Made from SS 304/316L for sanitary durability.
- Multiple Bending Options – Available in 45°, 90°, and custom bends.
- CIP/SIP Compatible – Designed for Clean-In-Place & Steam-In-Place systems.
Types of TC Bends
- 45° TC Bend
- 90° TC Bend
- Long Radius TC Bend
- Short Radius TC Bend
Specifications
Mechanical Properties
Chemical Composition
Equivalent Grades
Weight Chart
Specifications
| Parameter | Details |
|---|---|
| Size Range | ½" to 6" (DN15 to DN150) |
| Material Grades | SS 304 / SS 316 / SS 316L |
| Connection Type | Tri-Clamp / Sanitary Clamp Ends |
| Surface Finish | Mirror Polished, Ra < 0.8µm |
| Standards | ASME BPE, 3A, DIN, ISO |
| Property | Value |
|---|---|
| Tensile Strength | 515 MPa min |
| Yield Strength | 205 MPa min |
| Elongation | 40% min |
| Hardness | ≤ 200 HB |
| Element | Composition (%) |
|---|---|
| Chromium (Cr) | 18.0 – 20.0 |
| Nickel (Ni) | 8.0 – 12.0 |
| Carbon (C) | ≤ 0.03 |
| Manganese (Mn) | ≤ 2.0 |
| Silicon (Si) | ≤ 1.0 |
| Phosphorus (P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.03 |
| Iron (Fe) | Balance |
| Standard | Equivalent Grade |
|---|---|
| ASTM | A403 WP304 / WP316 |
| EN | 1.4301 / 1.4401 |
| JIS | SUS 304 / SUS 316 |
| ISO | X5CrNi18-10 / X2CrNiMo17-12-2 |
| DIN | 1.4307 / 1.4404 |
| Size (Tube OD) | Radius Type | Approx. Weight (kg/pc) |
|---|---|---|
| 1″ | 90° / Short Radius | 0.25 |
| 1.5″ | 90° / Long Radius | 0.45 |
| 2″ | 45° / Short Radius | 0.40 |
| 2.5″ | 90° / Long Radius | 0.75 |
| 3″ | 90° / Long Radius | 1.10 |
| 4″ | 90° / Long Radius | 1.80 |
Applications of TC Bends
Construction &
Infrastructure
Automotive & Heavy
Equipment
Manufacturing &
Fabrication
Medical & Laboratory
Equipment
Electrical &
Electronics Assembly
Oil, Gas & Petrochemical
Installations
Do you have questions?
What is a TC Bend used for?
A TC Bend is used to change the direction of flow in hygienic piping systems. It allows smooth fluid transfer in industries like food, beverage, dairy, and pharmaceuticals where cleanliness and corrosion resistance are critical.
Are TC Bends compatible with all tri-clover fittings?
Yes, TC Bends are designed to fit universally with standard tri-clamp or tri-clover systems, provided the ferrule sizes and clamp types match. They ensure leak-free and secure sanitary connections.
Can TC Bends handle high-temperature cleaning processes?
Absolutely. Made from stainless steel grades like 304 and 316L, TC Bends can withstand high-temperature CIP (Clean-in-Place) and SIP (Sterilize-in-Place) procedures without losing structural integrity.
Do you supply TC Bends in different radii and angles?
Yes. We offer TC Bends in 90°, 45°, and custom angles, as well as different radii (short or long) based on your system design. Custom sizes and finishes are also available on request.
