TC Ball Valves
What are TC Ball Valves?

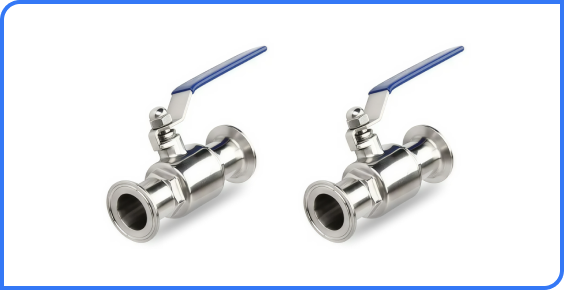

A TC Ball Valve is a hygienic, tri-clamp end valve that uses a rotating ball mechanism to start or stop fluid flow in sanitary process lines. It offers easy-to-turn operation and a straight-through, full-bore design that minimizes pressure drop and fluid turbulence. These valves are ideal for applications that require complete flow shut-off, easy cleaning, and resistance to contamination.
Asiad Steel Industries provides premium TC Ball Valves engineered for hygienic applications and efficient flow control.
Key Features
Leak-Proof
Jointing
Sanitary
Design
Easy to
Clean
Standards
Compliant
Corrosion
Resistant
Specifications
| Specification Category | Parameter / Feature | Details / Options |
|---|---|---|
| Size Range | Nominal Pipe Size (NPS) | ½” to 48” (DN15 – DN1200) |
| Pressure Ratings | ANSI / ASME Class | Class 150, 300, 600, 900, 1500, 2500 |
| PN Ratings | Pressure Nominal | PN6, PN10, PN16, PN25, PN40, PN64 |
| Valve Types | Ball Valve Types | Full Port, Standard Port, Reduced Port, Three-Way Ball Valve (L-Port, T-Port) |
| End Connections | Connection Options | Tri-Clover (TC) Clamp, Butt Weld, Socket Weld, Threaded, Flanged |
| Material Options | Stainless Steel | SS 304, SS 304L, SS 316, SS 316L, SS 321 |
| Standards & Certifications | ASME / ANSI | ASME BPE, ASME B16.34, ASME B16.5 (for flanged ends) |
| ASTM | ASTM A351, ASTM A182, ASTM A479 | |
| European Standards | EN 1092, EN 10204 | |
| Certifications | ISO 9001, PED 2014/68/EU, NACE MR0175, 3A Sanitary Standards | |
| Design Features | Ball & Seat | PTFE, PEEK, RPTFE, or Metal-to-Metal options |
| Body Construction | Two-Piece, Three-Piece, Top Entry | |
| Stem | Blow-out proof stem design, Anti-static stem | |
| Tolerance | Dimensional Accuracy | As per ASME/ANSI standards |
| Coating & Surface Finish | Surface Finish | Polished, Electro-Polished, Passivated |
| Optional Coatings | None (stainless steel only) | |
| Testing & Inspection | Pressure Testing | Hydrostatic, Pneumatic |
| Non-Destructive Testing | Radiography (RT), Ultrasonic (UT), Dye Penetrant (DPT) | |
| Destructive Testing | Tensile, Hardness, Impact |
Dimensions
| Nominal Pipe Size (NPS / DN) | Face-to-Face Length (L) mm | Outside Diameter (OD) mm | Clamp Size (mm) | End Connection Type |
|---|---|---|---|---|
| ½” / DN15 | 76 | 21.3 | ½” | TC Clamp |
| ¾” / DN20 | 76 | 26.9 | ¾” | TC Clamp |
| 1” / DN25 | 89 | 33.7 | 1” | TC Clamp |
| 1½” / DN40 | 102 | 48.3 | 1½” | TC Clamp |
| 2” / DN50 | 114 | 60.3 | 2” | TC Clamp |
| 2½” / DN65 | 127 | 76.1 | 2½” | TC Clamp |
| 3” / DN80 | 140 | 88.9 | 3” | TC Clamp |
| 4” / DN100 | 178 | 114.3 | 4” | TC Clamp |
| 6” / DN150 | 241 | 168.3 | 6” | TC Clamp |
| 8” / DN200 | 292 | 219.1 | 8” | TC Clamp |
| 10” / DN250 | 356 | 273.0 | 10” | TC Clamp |
| 12” / DN300 | 419 | 323.9 | 12” | TC Clamp |
| 14” / DN350 | 508 | 355.6 | 14” | TC Clamp |
| 16” / DN400 | 559 | 406.4 | 16” | TC Clamp |
| 18” / DN450 | 610 | 457.0 | 18” | TC Clamp |
| 20” / DN500 | 711 | 508.0 | 20” | TC Clamp |
| 24” / DN600 | 813 | 610.0 | 24” | TC Clamp |
Mechanical Properties
| Property | Value | Unit / Standard |
|---|---|---|
| Tensile Strength | 520 – 750 | MPa (Stainless Steel 304 / 316) |
| Yield Strength | 205 – 450 | MPa |
| Hardness | 150 – 200 | HB (Brinell) |
| Elongation | ≥ 25 – 30 | % |
| Density | 7.9 – 8.0 | g/cm³ |
| Impact Toughness | ≥ 28 – 70 | J (Charpy, grade-dependent) |
| Modulus of Elasticity (E) | ~200 | GPa |
| Fatigue Strength | 270 – 450 | MPa |
| Corrosion Resistance | Excellent | (SS 316 > SS 304) |
| Thermal Conductivity | 15 – 25 | W/m·K |
| Coefficient of Thermal Expansion | 16 – 17 ×10⁻⁶ | /°C |
| Yield Ratio (YS/UTS) | 0.40 – 0.60 | – |
| Poisson’s Ratio | 0.27 – 0.30 | – |
| Brinell Hardness Range | 150 – 200 | HB |
| Surface Finish | Polished / Pickled / Passivated | – |
| End Connection Type | Tri-Clover Clamp | – |
| Operating Temperature Range | -46 to 200 | °C (material & seal dependent) |
| Pressure Rating | Class 150, 300, 600, 900, 1500 | ASME BPE / Sanitary Standards |
Chemical Composition
| Element | SS 304 (%) | SS 304L (%) | SS 316 (%) | SS 316L (%) |
|---|---|---|---|---|
| Carbon (C) | ≤ 0.08 | ≤ 0.03 | ≤ 0.08 | ≤ 0.03 |
| Manganese (Mn) | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 |
| Chromium (Cr) | 18.0 – 20.0 | 18.0 – 20.0 | 16.0 – 18.0 | 16.0 – 18.0 |
| Nickel (Ni) | 8.0 – 10.5 | 8.0 – 12.0 | 10.0 – 14.0 | 10.0 – 14.0 |
| Molybdenum (Mo) | — | — | 2.0 – 3.0 | 2.0 – 3.0 |
| Iron (Fe) | Balance | Balance | Balance | Balance |
Applications of TC Ball Valves
Dairy & Food Processing
Units
Beverage Plants
Pharmaceutical
Cosmetic & Personal
Care
Chemical & Enzyme
Production
Laboratory and Testing
Facilities
