Studs
What are Studs?

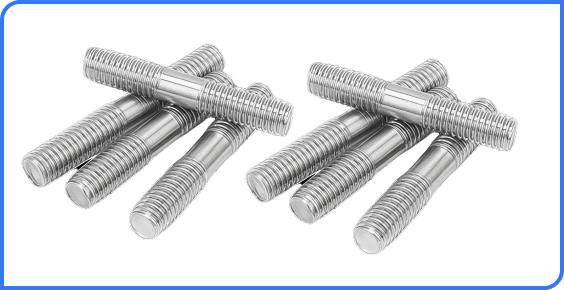

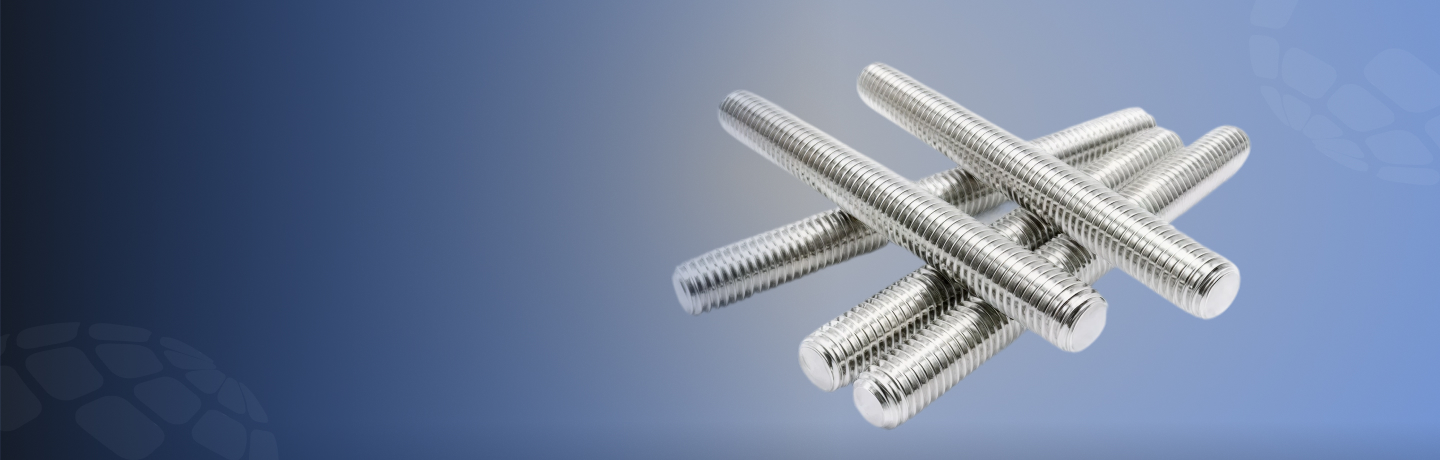

Studs are long threaded rods or shafts with threads on both ends or continuously along the entire length. Unlike bolts, studs do not have a head and are used where high-strength clamping is required between heavy components, such as engines, piping, or structural parts. Studs are ideal for precise torque applications, often paired with nuts on both ends.
Key Features
- Threaded Both Ends or Full Length – Offers strong and balanced clamping force.
- High Load Capacity – Suitable for heavy mechanical assemblies.
- Custom Lengths Available – Cut-to-size based on application.
- Multiple Grades – Available in low carbon, alloy steel, and stainless steel.
- Used in High-Temperature, High-Pressure Systems
Types of Studs
- Fully Threaded Studs
- Double-End Studs
- Tap-End Studs
- Continuous Thread Studs
- Weld Studs
Specifications
Mechanical Properties
Chemical Composition
Equivalent Grades
Weight Chart
Specifications
| Parameter | Details |
|---|---|
| Diameter Range | M6 to M72 |
| Lengths | 50 mm to 2000 mm |
| Thread Types | Metric, UNC, UNF, BSW |
| Material Options | Carbon Steel, Alloy Steel, Stainless Steel |
| Standards | DIN 976 / ASTM A193 / ISO 898 |
| Property | Value |
|---|---|
| Tensile Strength | Up to 1000 MPa |
| Yield Strength | Up to 850 MPa |
| Elongation | 15% – 25% |
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.15 – 0.50 |
| Manganese (Mn) | 0.60 – 1.65 |
| Silicon (Si) | 0.15 – 0.80 |
| Chromium (Cr) | 16.0 – 18.0 (SS Only) |
| Nickel (Ni) | 10.0 – 14.0 (SS Only) |
| Molybdenum (Mo) | 2.0 – 3.0 (SS Only) |
| Phosphorus (P) | ≤ 0.040 |
| Sulfur (S) | ≤ 0.050 |
| Iron (Fe) | Balance |
| Standard | Equivalent Grade |
|---|---|
| ASTM | A193 B7 / B16 |
| DIN | 976 / 975 |
| ISO | 898-1 |
| Stud Size | Length (mm) | Weight (kg) |
|---|---|---|
| M10 | 100 mm | 9.50 |
| M12 | 150 mm | 14.80 |
| M16 | 200 mm | 26.00 |
Applications of Studs
Construction &
Infrastructure
Automotive & Heavy
Equipment
Manufacturing &
Fabrication
Medical & Laboratory
Equipment
Electrical &
Electronics Assembly
Oil, Gas & Petrochemical
Installations
Do you have questions?
When should I use a stud instead of a bolt?
Studs are ideal for high-strength, permanent or semi-permanent joints requiring torque balance and load distribution.
Can studs be supplied in custom lengths or grades?
Yes, we manufacture cut-to-length studs in various grades and finishes for specific project needs.
What are double-end studs used for?
Double-end studs are typically used in engine blocks, turbines, or flange assemblies where nuts are applied on both ends.
Do you offer traceability for critical-use studs?
Yes. All studs can be delivered with material test certificates and third-party inspections.
