Stainless Steel Sheets / Plates

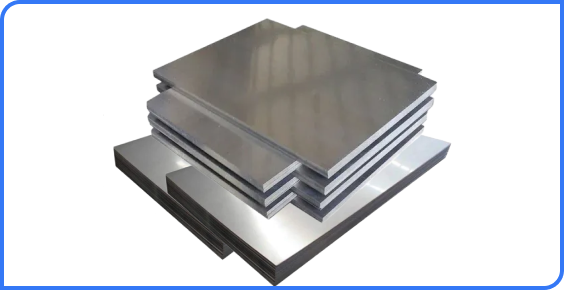

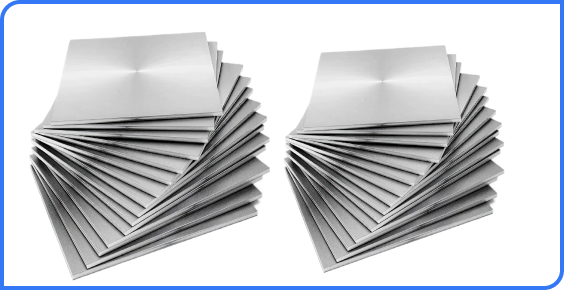

What are Stainless Steel Sheets & Plates?
Stainless Steel Sheets and Plates are flat-rolled steel products made from corrosion-resistant stainless alloys, available in a wide range of thicknesses and finishes. While sheets are generally thinner (below 6 mm), plates are thicker and used in heavy-duty structural or industrial applications.
Asiad Steel Industries is a trusted manufacturer and exporter of premium-grade stainless steel sheets and plates in 304, 316, 310, 321, and various duplex alloys.
Key Features
High
Strength
Durable
Construction
Precision
Finish
Wide
Compatibility
Corrosion
Resistant
Types of Stainless Steel Sheets / Plates
Specifications
| Specification Category | Parameter / Feature | Details / Options |
|---|---|---|
| Size Range | Sheet / Plate Thickness | 0.5 mm to 200 mm (custom thickness available) |
| Width | 1000 mm to 2500 mm (custom widths available) | |
| Length | 2000 mm to 6000 mm (custom lengths available) | |
| Pressure Ratings | ANSI / ASME Class | Class 150, 300, 600, 900, 1500, 2500 (if used in pressure applications) |
| PN Ratings | PN6, PN10, PN16, PN25, PN40, PN64 | |
| Sheet / Plate Types | SS 2B Sheets / Plates | Cold-rolled, smooth surface, standard industrial finish |
| SS Hot Rolled Sheets / Plates | Hot-rolled, slightly rough surface, thicker applications | |
| SS Matt Sheets / Plates | Non-reflective, brushed/matt finish for aesthetic & industrial use | |
| SS Mirror Finish Sheets / Plates | Highly polished, reflective surface for decorative applications | |
| SS Coloured Sheets | Color-coated stainless steel sheets/plates with PVD or epoxy coating | |
| Material Options | Stainless Steel | SS 304, SS 304L, SS 316, SS 316L, SS 321, SS 430 |
| Carbon Steel | ASTM A36, ASTM A516, ASTM A283 (if hybrid plates required) | |
| Alloy / Superalloy | Alloy Steel (A234 WP1, WP5, WP9, WP11, WP22, WP91), Inconel 600/625/825 | |
| Duplex & Super Duplex | Duplex 2205, Super Duplex 2507 | |
| Other Materials | Monel 400/K500, Nickel 200/201, Titanium (Grade 2, Grade 5) | |
| Standards & Certifications | ASME / ANSI | ASME B36.10, ASME B36.19 |
| ASTM | ASTM A240, ASTM A480, ASTM A666 | |
| European Standards | EN 10088, EN 10204 | |
| Certifications | ISO 9001, PED 2014/68/EU, NACE MR0175, IBR Approved | |
| Design Features | Surface Finish | 2B, Hot Rolled, Matt, Mirror, Coloured |
| Tolerance | As per ASME / EN / ASTM standards | |
| Edge Type | Slit / Sheared / Mill Edge / Beveled Edge | |
| Coating & Surface Finish | Anti-Corrosion Coating | Rust Preventive Oil, Passivation treatment |
| Optional Coatings | Epoxy, PVD, Polyurethane, Color Coating | |
| Testing & Inspection | Mechanical Testing | Tensile Strength, Yield Strength, Hardness, Impact |
| Non-Destructive Testing | Ultrasonic (UT), Dye Penetrant (DPT), Eddy Current | |
| Surface Inspection | Visual Inspection, Dimensional Accuracy, Finish Quality |
Dimensions
| Parameter / Feature | SS 2B Sheets / Plates | SS Hot Rolled Sheets / Plates | SS Matt Sheets / Plates | SS Mirror Finish Sheets / Plates | SS Coloured Sheets |
|---|---|---|---|---|---|
| Thickness Range (mm) | 0.5 – 300 | 3 – 300 | 0.5 – 200 | 0.5 – 200 | 0.5 – 150 |
| Width Range (mm) | 1000 – 2500 | 1000 – 2500 | 1000 – 2000 | 1000 – 2000 | 1000 – 1500 |
| Length Range (mm) | 2000 – 6000 | 2000 – 6000 | 2000 – 6000 | 2000 – 6000 | 2000 – 4000 |
| Standard Sizes (m) | 1.0×2.0, 1.25×2.5, 1.5×3.0, 2.0×6.0 | 1.0×2.0, 1.25×2.5, 1.5×3.0, 2.0×6.0 | 1.0×2.0, 1.25×2.5, 1.5×3.0 | 1.0×2.0, 1.25×2.5, 1.5×3.0 | 1.0×2.0, 1.25×2.5 |
| Tolerance – Thickness (mm) | ±0.02 – ±0.5 | ±0.05 – ±0.5 | ±0.02 – ±0.3 | ±0.02 – ±0.3 | ±0.02 – ±0.2 |
| Tolerance – Width (mm) | ±1 – ±5 | ±1 – ±5 | ±1 – ±3 | ±1 – ±3 | ±1 – ±2 |
| Tolerance – Length (mm) | ±2 – ±10 | ±2 – ±10 | ±2 – ±8 | ±2 – ±8 | ±2 – ±5 |
| Edge Condition | ME, SE, SH, BE | ME, SE, SH, BE | ME, SE, SH, BE | ME, SE, SH, BE | ME, SE, SH, BE |
| Surface Finish Options | 2B, 2D, BA, HL, Mirror, Matt, Coloured | 2B, 2D, BA, HL, Mirror, Matt, Coloured | 2B, 2D, BA, HL, Mirror, Matt, Coloured | 2B, 2D, BA, HL, Mirror, Matt, Coloured | 2B, 2D, BA, HL, Mirror, Matt, Coloured |
| Material Options | SS 304, 304L, 316, 316L, 321, Duplex, Super Duplex, Monel, Nickel, Titanium | Same as SS 2B Sheets | Same as SS 2B Sheets | Same as SS 2B Sheets | Same as SS 2B Sheets |
| Standards | ASTM A240 / A666 / A480, EN 10088, JIS G4305 | Same as SS 2B Sheets | Same as SS 2B Sheets | Same as SS 2B Sheets | Same as SS 2B Sheets |
Mechanical Properties
| Property | Value | Unit / Standard |
|---|---|---|
| Tensile Strength | 485 – 750 | MPa (SS 304, SS 304L, SS 316, SS 316L, SS 321) |
| Yield Strength | 170 – 450 | MPa |
| Hardness | 120 – 220 | HB (Brinell) |
| Elongation | ≥ 20 – 40 | % |
| Density | 7.8 – 8.0 | g/cm³ |
| Impact Toughness | ≥ 27 – 70 | J (Charpy, grade-dependent) |
| Modulus of Elasticity (E) | ~200 | GPa |
| Fatigue Strength | 250 – 450 | MPa |
| Corrosion Resistance | Excellent (SS > Duplex > Alloy Steel) | – |
| Thermal Conductivity | 15 – 50 | W/m·K |
| Coefficient of Thermal Expansion | 11 – 17 ×10⁻⁶ | /°C |
| Yield Ratio (YS/UTS) | 0.40 – 0.65 | – |
| Poisson’s Ratio | 0.27 – 0.30 | – |
| Brinell Hardness Range | 120 – 220 | HB |
| Surface Finish | 2B, Hot Rolled, Matt, Mirror, Coloured | – |
| Welding Type | Butt-welded, TIG / MIG (depending on fabrication) | – |
| Operating Temperature Range | -196 to 800 | °C (material-dependent) |
| Pressure Rating | Class 150, 300, 600, 900, 1500, 2500 | ASME / ANSI Standards |
| Edge Condition | Slit, Sheared, Mill Edge, Beveled | – |
| Surface Coating | Passivation, Epoxy, PVD, Polyurethane | – |
Chemical Composition
| Element | SS 304 (%) | SS 304L (%) | SS 316 (%) | SS 316L (%) |
|---|---|---|---|---|
| Carbon (C) | ≤ 0.08 | ≤ 0.03 | ≤ 0.08 | ≤ 0.03 |
| Manganese (Mn) | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 |
| Chromium (Cr) | 18.0 – 20.0 | 18.0 – 20.0 | 16.0 – 18.0 | 16.0 – 18.0 |
| Nickel (Ni) | 8.0 – 10.5 | 8.0 – 12.0 | 10.0 – 14.0 | 10.0 – 14.0 |
| Molybdenum (Mo) | — | — | 2.0 – 3.0 | 2.0 – 3.0 |
| Nitrogen (N) | — | — | ≤ 0.10 | ≤ 0.10 |
| Iron (Fe) | Balance | Balance | Balance | Balance |
Applications of Stainless Steel Sheets / Plates
Construction &
Infrastructure
Automotive & Heavy
Equipment
Manufacturing &
Fabrication
Medical & Laboratory
Equipment
Electrical &
Electronics Assembly
Oil, Gas & Petrochemical
Installations
Do you have questions?
What is the difference between stainless steel sheet and plate?
Which grade is best for marine and coastal environments?
Can you supply mirror-finished or colored stainless steel sheets?
Are MTC and third-party inspection certificates available?
