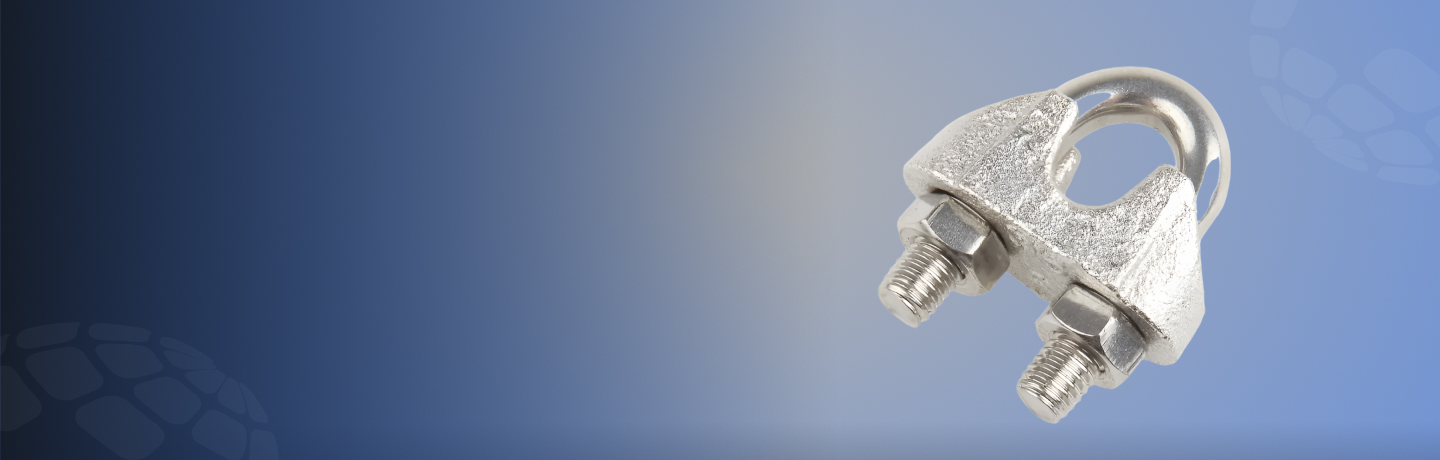

SS Wire Rope Clamps

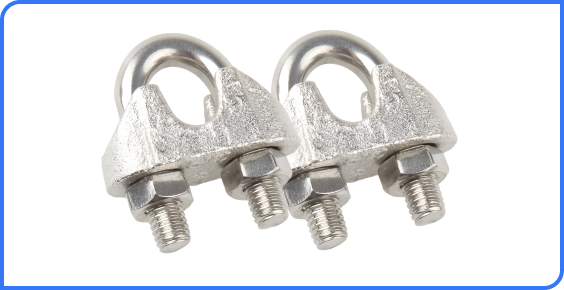

What are SS Wire Rope Clamps?
SS Wire Rope Clamps are mechanical fasteners used to securely clamp the loose end of a wire rope after looping it back to form an eye or connection. These clamps, also known as wire rope clips, ensure reliable anchoring, prevent slippage, and allow easy adjustments or dismantling of wire rope assemblies.
Asiad Steel Industries is a trusted manufacturer and supplier of premium-grade Stainless Steel Wire Rope Clamps, designed for use in marine, lifting, construction, and safety-critical applications.
Key Features
High
Strength
Durable
Construction
Precision
Finish
Wide
Compatibility
Corrosion
Resistant
Specifications
| Specification Category | Parameter / Feature | Details / Options |
|---|---|---|
| Size Range | Nominal Size | 2 mm to 32 mm (custom sizes available) |
| Clamp Types | U-bolt | Standard heavy-duty forged clamps |
| Double Saddle | Provides even pressure distribution | |
| Drop Forged | High-strength option for critical load applications | |
| Material Grades | Stainless Steel | SS 304, SS 316 |
| Surface Finish | Options | Bright Polished, Electro-Polished |
| Standards & Certifications | DIN | DIN 741 |
| EN | EN 13411 | |
| US Federal Std | FF-C-450 | |
| Certifications | ISO 9001:2015, PED 2014/68/EU | |
| Design Features | Construction | Precision-machined body with rust-resistant coating |
| Durability | Long service life in marine & outdoor conditions | |
| Applications / Usage | Rope End Termination | Loop formation, anchoring, cable termination |
| Industry Use | Marine, Construction, Lifting, Safety, Rigging |
Chemical Composition
| Element | SS 304 (%) | SS 304L (%) | SS 316 (%) | SS 316L (%) |
|---|---|---|---|---|
| Chromium (Cr) | 18.0 – 20.0 | 18.0 – 20.0 | 16.0 – 18.0 | 16.0 – 18.0 |
| Nickel (Ni) | 8.0 – 10.5 | 8.0 – 12.0 | 10.0 – 14.0 | 10.0 – 14.0 |
| Carbon (C) | ≤ 0.08 | ≤ 0.03 | ≤ 0.08 | ≤ 0.03 |
| Manganese (Mn) | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 |
| Iron (Fe) | Balance | Balance | Balance | Balance |
| Molybdenum (Mo) | — | — | 2.0 – 3.0 | 2.0 – 3.0 |
Mechanical Properties
| Property | Value | Unit / Standard |
|---|---|---|
| Tensile Strength | 515 – 620 | MPa (SS 304 / SS 316 grades) |
| Yield Strength | 205 – 310 | MPa |
| Hardness | 150 – 217 | HB (Brinell) |
| Elongation | ≥ 40 | % |
| Density | 7.9 – 8.0 | g/cm³ |
| Impact Toughness | ≥ 100 – 150 | J (Charpy, grade-dependent) |
| Modulus of Elasticity (E) | ~193 – 200 | GPa |
| Fatigue Strength | 240 – 310 | MPa |
| Corrosion Resistance | Excellent (Marine & Industrial Environments) | ASTM A240 (SS 304/316) |
| Thermal Conductivity | 14 – 16 | W/m·K |
| Coefficient of Thermal Expansion | 16 – 17 ×10⁻⁶ | /°C |
| Yield Ratio (YS/UTS) | 0.35 – 0.55 | – |
| Poisson’s Ratio | 0.27 – 0.30 | – |
| Brinell Hardness Range | 150 – 217 | HB |
| Surface Finish | Bright Polished / Electro-polished | DIN 741, EN 13411 |
| Welding Type | Not Applicable | Clamped Fastening (Non-welded) |
| Operating Temperature Range | -196 to 870 | °C (material-dependent, SS 304/316) |
| Pressure Rating | Not Pressure-rated (used for anchoring/termination) | – |
Applications of SS Wire Rope Clamps
Construction &
Infrastructure
Automotive & Heavy
Equipment
Manufacturing &
Fabrication
Medical & Laboratory
Equipment
Electrical &
Electronics Assembly
Oil, Gas & Petrochemical
Installations
Do you have questions?
What grade is best for marine wire rope?
What’s the difference between 7x7 and 7x19 construction?
Can wire rope be supplied with end fittings?
Are PVC-coated stainless wire ropes available?
