SS Other Products
What are SS Other Products?

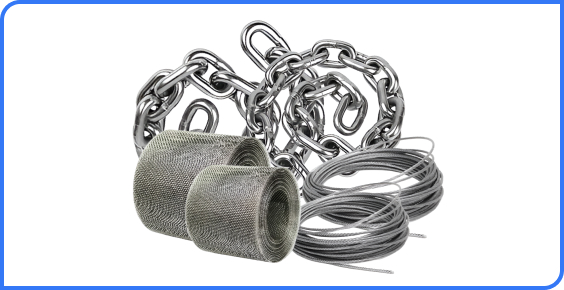

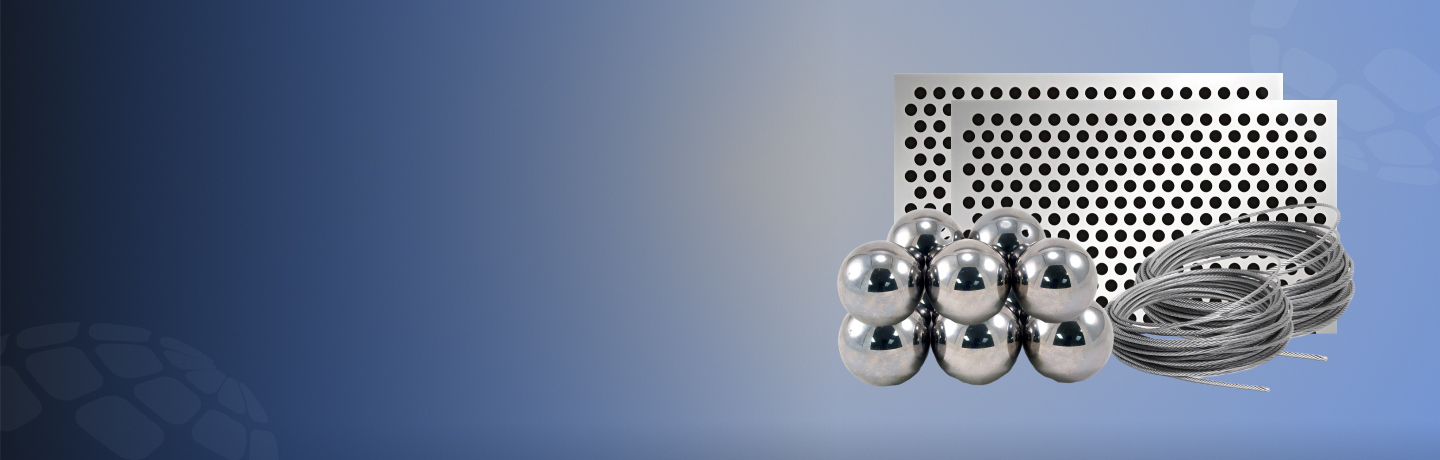

Stainless Steel (SS) Other Products refer to specialized stainless steel components designed for filtration, lifting, load-bearing, decorative, and safety applications. These include SS Wire Mesh, SS Solid Balls, SS Wire Rope, SS Perforated Sheet, and SS Chains. Each of these products is engineered to deliver strength, corrosion resistance, and durability for industrial as well as architectural purposes.
Asiad Steel Industries supplies a wide range of SS products manufactured from premium grades like SS 304, SS 316, and SS 310, ensuring compliance with ASTM, ASME, DIN, and ISO standards.
Key Features
High
Strength
Durable
Construction
Precision
Finish
Wide
Compatibility
Corrosion
Resistant
Types of SS Other Products
Specifications
| Specification Category | Parameter / Feature | Details / Options |
|---|---|---|
| SS Wire Mesh | Size Range | Wire Dia: 0.02 mm – 12 mm; Aperture: 0.03 mm – 100 mm |
| Mesh Types | Plain Weave, Twill Weave, Dutch Weave, Welded Mesh | |
| Material Grades | SS 304, SS 304L, SS 316, SS 316L, SS 321 | |
| Standards | ASTM E2016, IS 1568, DIN 1.4301/1.4401 | |
| Applications | Filtration, Sieving, Chemical Processing, Construction, Mining | |
| SS Solid Balls | Size Range | Dia. 1 mm – 200 mm |
| Finish | Bright Polished, Matte, Mirror Finish | |
| Material Grades | SS 304, SS 316, SS 316L, SS 440C (Hardened) | |
| Tolerance | ±0.01 mm to ±0.05 mm depending on size | |
| Applications | Bearings, Valves, Automotive, Decorative, Grinding Media | |
| SS Wire Rope | Size Range | Dia. 0.5 mm – 50 mm |
| Construction | 1×7, 1×19, 7×7, 7×19, 6×19, 6×36, with/without core | |
| Finish | Bright, Galvanized, PVC/ Nylon Coated | |
| Material Grades | SS 304, SS 316, SS 316L | |
| Standards | EN 12385, ASTM A1023, IS 3459 | |
| Applications | Marine, Lifting, Rigging, Safety Cables, Architecture | |
| SS Perforated Sheet | Thickness Range | 0.3 mm – 12 mm |
| Hole Patterns | Round, Square, Slotted, Hexagonal, Decorative | |
| Sheet Size | 1000 x 2000 mm, 1250 x 2500 mm, 1500 x 3000 mm (custom on request) | |
| Material Grades | SS 304, SS 316, SS 316L, Duplex SS | |
| Applications | Filters, Screens, Ventilation, Acoustic Panels, Decorative | |
| SS Chain | Size Range | Link Dia: 2 mm – 32 mm |
| Types | Welded Chain, Long Link Chain, Short Link Chain, Decorative Chain | |
| Finish | Polished, Bright, Passivated | |
| Material Grades | SS 304, SS 316, SS 316L | |
| Standards | DIN 5685, IS 2429, ISO 1835 | |
| Applications | Marine, Industrial Lifting, Security, Decorative, General Purpose |
Dimensions
| Product Type | Size / Dia / Mesh | Thickness (mm) | Aperture / Pitch (mm) | Construction / Hole Type | Sheet / Roll Size | Weight (kg/m² or per 100m / per m / per pc) | Load Capacity / Breaking Load |
|---|---|---|---|---|---|---|---|
| SS Wire Mesh | 10 Mesh | 2.0 | 0.54 | Woven | 30m Roll | 3.40 kg/m² | — |
| 20 Mesh | 0.9 | 0.37 | Woven | 30m Roll | 2.20 kg/m² | — | |
| 40 Mesh | 0.45 | 0.19 | Woven | 30m Roll | 1.80 kg/m² | — | |
| 60 Mesh | 0.28 | 0.14 | Woven | 15 / 30m Roll | 1.50 kg/m² | — | |
| 100 Mesh | 0.14 | 0.11 | Woven | 15m Roll | 1.20 kg/m² | — | |
| SS Solid Balls | Dia 5 mm | — | — | Solid Sphere | — | 0.52 g | — |
| Dia 10 mm | — | — | Solid Sphere | — | 4.2 g | — | |
| Dia 20 mm | — | — | Solid Sphere | — | 33.5 g | — | |
| Dia 30 mm | — | — | Solid Sphere | — | 113 g | — | |
| Dia 50 mm | — | — | Solid Sphere | — | 65.4 g | — | |
| Dia 100 mm | — | — | Solid Sphere | — | 523 g | — | |
| Dia 200 mm | — | — | Solid Sphere | — | 8377 g | — | |
| SS Wire Rope | Dia 1.0 mm | — | — | 7×7 | 500m Coil | 0.40 kg/100m | 0.7 kN |
| Dia 2.0 mm | — | — | 7×7 | 500m Coil | 1.60 kg/100m | 2.7 kN | |
| Dia 4.0 mm | — | — | 7×19 | 500m Coil | 6.50 kg/100m | 10.8 kN | |
| Dia 6.0 mm | — | — | 7×19 | 500m Coil | 14.5 kg/100m | 23.5 kN | |
| Dia 10.0 mm | — | — | 6×19 | 100m Coil | 40.0 kg/100m | 65.0 kN | |
| Dia 16.0 mm | — | — | 6×36 | 100m Coil | 165.0 kg/100m | 270.0 kN | |
| Dia 25.0 mm | — | — | 6×36 | 100m Coil | 402.0 kg/100m | 650.0 kN | |
| SS Perforated Sheet | Dia 5mm Holes | 0.5 | 5 Pitch | Round | 1000×2000 mm | 3.9 kg/m² | — |
| Dia 10mm Holes | 1.0 | 10 Pitch | Round | 1250×2500 mm | 7.8 kg/m² | — | |
| Dia 12mm Holes | 2.0 | 12 Pitch | Square | 1250×2500 mm | 15.6 kg/m² | — | |
| Hexagonal | 3.0 | Custom | Hexagonal | 1500×3000 mm | 23.4 kg/m² | — | |
| Slotted | 5.0 | Custom | Slotted | 1500×3000 mm | 39.0 kg/m² | — | |
| SS Chain | Link Dia 4 mm | — | Link 16 mm | Short Link | Coil / Cut | 0.30 kg/m | 125 kg |
| Link Dia 6 mm | — | Link 18 mm | Short Link | Coil / Cut | 0.80 kg/m | 320 kg | |
| Link Dia 8 mm | — | Link 24 mm | Short Link | Coil / Cut | 1.40 kg/m | 520 kg | |
| Link Dia 10 mm | — | Link 28 mm | Welded Chain | Coil / Cut | 2.20 kg/m | 850 kg | |
| Link Dia 12 mm | — | Link 36 mm | Welded Chain | Coil / Cut | 3.10 kg/m | 1200 kg | |
| Link Dia 16 mm | — | Link 48 mm | Welded Chain | Coil / Cut | 5.70 kg/m | 2000 kg | |
| Link Dia 20 mm | — | Link 60 mm | Welded Chain | Coil / Cut | 8.90 kg/m | 3200 kg | |
| Link Dia 25 mm | — | Link 75 mm | Welded Chain | Coil / Cut | 14.0 kg/m | 5000 kg |
Mechanical Properties
| Property | Value | Unit / Standard |
|---|---|---|
| Tensile Strength | 480 – 750 | MPa (varies by product & grade 304/304L/316/316L) |
| Yield Strength | 170 – 450 | MPa |
| Hardness | 120 – 230 | HB (Brinell) – higher for wire rope & circlips |
| Elongation | ≥ 15 – 40 | % (mesh & sheets higher; wire rope lower) |
| Density | 7.8 – 8.0 | g/cm³ |
| Impact Toughness | ≥ 20 – 70 | J (Charpy, depending on size & grade) |
| Modulus of Elasticity (E) | ~190 – 200 | GPa |
| Fatigue Strength | 240 – 500 | MPa (critical for wire rope & chains) |
| Corrosion Resistance | Good to Excellent (316 > 304 > 202) | — |
| Thermal Conductivity | 14 – 16 (Austenitic SS) | W/m·K |
| Coefficient of Thermal Expansion | 16 – 17 ×10⁻⁶ | /°C |
| Yield Ratio (YS/UTS) | 0.40 – 0.65 | — |
| Poisson’s Ratio | 0.27 – 0.30 | — |
| Surface Finish | Mesh: Weave Finish; Balls: Mirror/Precision; Rope: Bright/Plain; Sheet/Perforated: 2B/BA/HR; Clamps/Chain/Circlips: Matte / Polished | As per ASTM A580 / A276 / A240 |
| Welding / Forming | Mesh: Not welded/Spot-welded; Rope: Stranded; Clamps: Drop-forged; Perforated Sheets: Punch-formed | — |
| Operating Temperature Range | –100 to 600 | °C (grade-dependent) |
| Pressure / Load Rating | Product Specific: Wire Rope (Load-rated), Clamps (Working Load Limit), Chain (Proof Load), Circlips (Retaining Force) | As per EN / ASTM |
Chemical Composition
| Element | SS 304 (%) | SS 304L (%) | SS 316 (%) | SS 316L (%) |
|---|---|---|---|---|
| Chromium (Cr) | 18.0 – 20.0 | 18.0 – 20.0 | 16.0 – 18.0 | 16.0 – 18.0 |
| Nickel (Ni) | 8.0 – 10.5 | 8.0 – 12.0 | 10.0 – 14.0 | 10.0 – 14.0 |
| Carbon (C) | ≤ 0.08 | ≤ 0.03 | ≤ 0.08 | ≤ 0.03 |
| Manganese (Mn) | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 |
| Iron (Fe) | Balance | Balance | Balance | Balance |
| Molybdenum (Mo) | — | — | 2.0 – 3.0 | 2.0 – 3.0 |
Applications of SS Other Products
Construction &
Infrastructure
Automotive & Heavy
Equipment
Manufacturing &
Fabrication
Medical & Laboratory
Equipment
Electrical &
Electronics Assembly
Oil, Gas & Petrochemical
Installations
Do you have questions?
What is the difference between SS 304 and SS 316 in these products?
Can SS wire mesh and perforated sheets be customized?
Are SS chains and ropes strong enough for lifting applications?
What industries commonly use SS solid balls?
