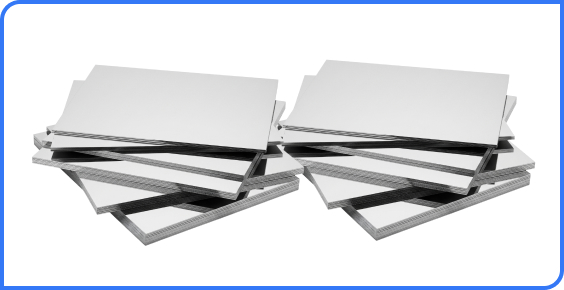

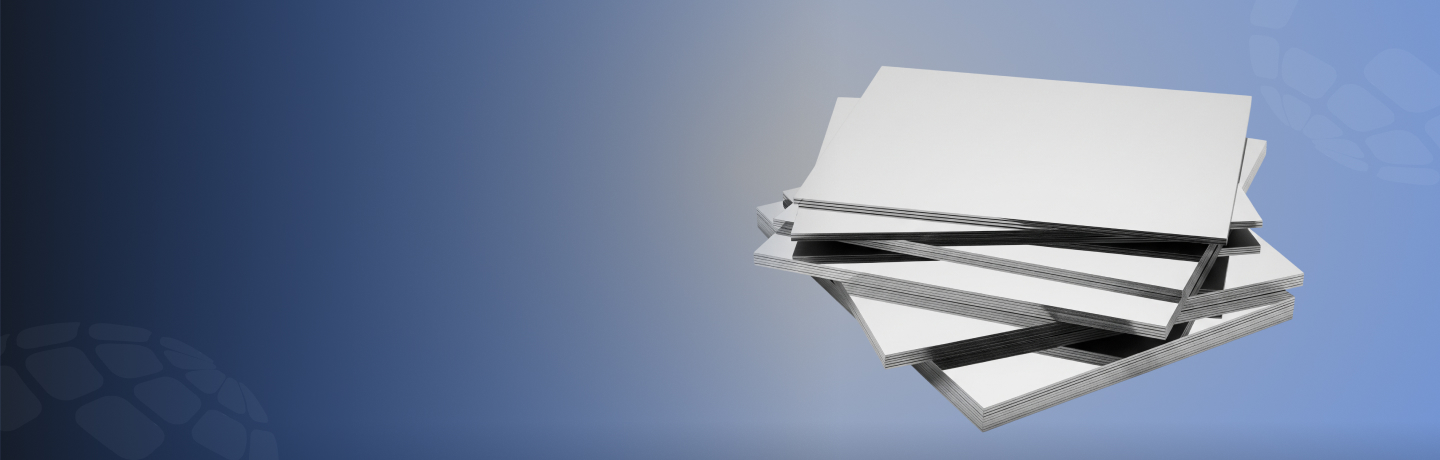

SS Mirror Finish Sheets / Plates
What are SS Mirror Finish Sheets / Plates?
SS Mirror Finish Sheets / Plates are stainless steel flat products polished to a highly reflective, smooth, and glossy surface that resembles a mirror. These sheets not only provide excellent corrosion resistance but also serve an aesthetic function in architectural, decorative, and high-end commercial applications.
Asiad Steel Industries is a reputed manufacturer and exporter of premium Stainless Steel Mirror Finish Sheets and Plates, offering them in various thicknesses and grades like 304, 316, and 430 for both interior and exterior use.
Key Features
High
Strength
Durable
Construction
Precision
Finish
Wide
Compatibility
Corrosion
Resistant
Specifications
| Specification Category | Parameter / Feature | Details / Options |
|---|---|---|
| Size Range | Thickness | 0.5 mm to 50 mm (custom thicknesses available) |
| Width | 1000 mm, 1220 mm, 1500 mm, 2000 mm (custom widths available) | |
| Length | 2000 mm, 2440 mm, 3000 mm, 6000 mm (custom cut lengths available) | |
| Grades Available | Stainless Steel | SS 304, SS 316 |
| Surface Finish | Standard Finish | Mirror (bright reflective finish, highly polished) |
| Optional Finishes | BA, 2B, No.4, HL, Matt | |
| Standards & Certifications | ASTM | ASTM A240 / A480 |
| EN | EN 10088-2 | |
| ASME | ASME SA240 | |
| Certifications | ISO 9001:2015, PED 2014/68/EU | |
| Design Features | Surface | Glossy, reflective, aesthetic finish with excellent hygiene properties |
| Processing | Can be cut, bent, laser-cut, fabricated, and welded | |
| Applications / Usage | Architectural | Elevators, cladding, interior panels, facades |
| Industrial | Kitchen equipment, decorative appliances, transport interiors |
Chemical Composition
| Element | SS 304 (%) | SS 304L (%) | SS 316 (%) | SS 316L (%) |
|---|---|---|---|---|
| Chromium (Cr) | 18.0 – 20.0 | 18.0 – 20.0 | 16.0 – 18.0 | 16.0 – 18.0 |
| Nickel (Ni) | 8.0 – 10.5 | 8.0 – 12.0 | 10.0 – 14.0 | 10.0 – 14.0 |
| Carbon (C) | ≤ 0.08 | ≤ 0.03 | ≤ 0.08 | ≤ 0.03 |
| Manganese (Mn) | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 |
| Iron (Fe) | Balance | Balance | Balance | Balance |
| Molybdenum (Mo) | — | — | 2.0 – 3.0 | 2.0 – 3.0 |
Mechanical Properties
| Property | Value | Unit / Standard |
|---|---|---|
| Tensile Strength | 515 – 620 | MPa (SS 304 / SS 316) |
| Yield Strength | 205 – 310 | MPa |
| Hardness | 150 – 217 | HB (Brinell) |
| Elongation | ≥ 40 | % |
| Density | 7.9 – 8.0 | g/cm³ |
| Impact Toughness | ≥ 100 – 150 | J (Charpy, grade-dependent) |
| Modulus of Elasticity (E) | ~193 – 200 | GPa |
| Fatigue Strength | 240 – 310 | MPa |
| Corrosion Resistance | Excellent in Decorative & Industrial Environments | ASTM A240 (SS 304/316) |
| Thermal Conductivity | 14 – 16 | W/m·K |
| Coefficient of Thermal Expansion | 16 – 17 ×10⁻⁶ | /°C |
| Poisson’s Ratio | 0.27 – 0.30 | – |
| Operating Temperature Range | -196 to 870 | °C (material-dependent, SS 304/316) |
Applications of SS Mirror Finish Sheets / Plates
Construction &
Infrastructure
Automotive & Heavy
Equipment
Manufacturing &
Fabrication
Medical & Laboratory
Equipment
Electrical &
Electronics Assembly
Oil, Gas & Petrochemical
Installations
Do you have questions?
What is No. 8 mirror finished in stainless steel?
Are mirror finish sheets easy to maintain?
Can mirror sheets be used outdoors?
Do you offer PVD-coated colored mirror sheets?
