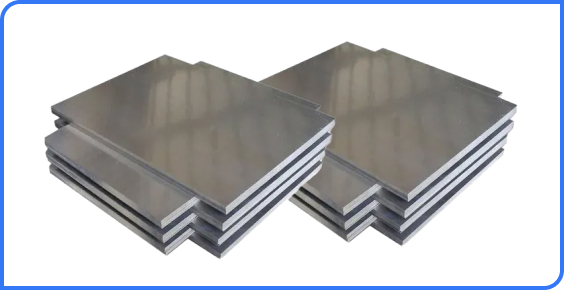

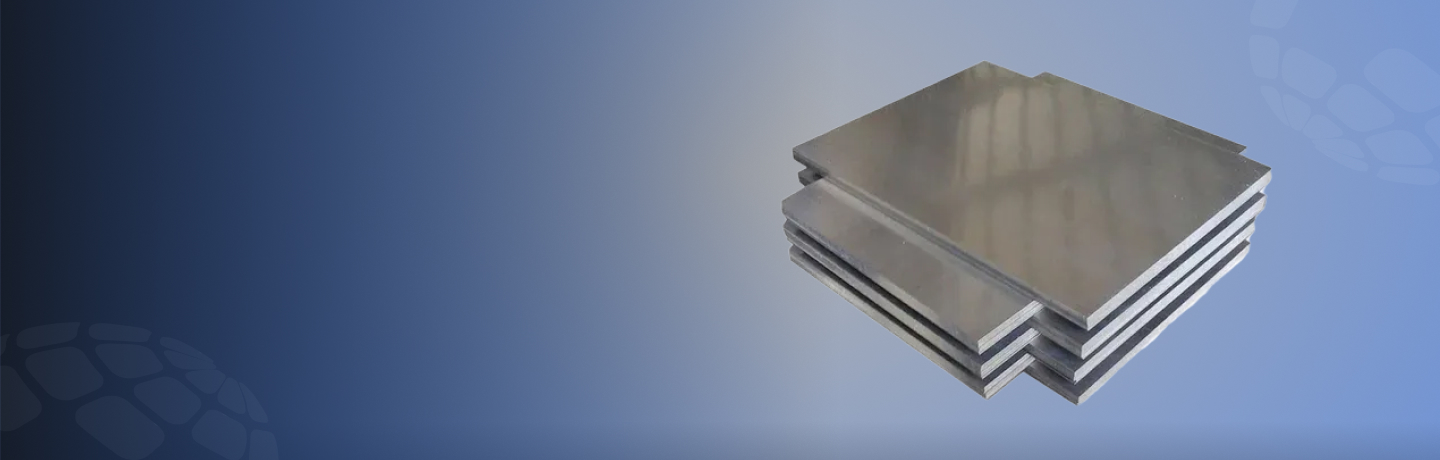

SS Hot Rolled Sheets / Plates
What are SS Hot Rolled Sheets / Plates?
SS Hot Rolled Sheets are flat-rolled stainless steel products manufactured through a hot rolling process at high temperatures. This process gives the sheets a scaly surface finish, rough texture, and thicker gauge tolerance, making them ideal for structural, fabrication, and heavy-duty industrial applications. They are commonly used where surface finish is not critical but strength, toughness, and weldability are essential.
Asiad Steel Industries is a trusted manufacturer and supplier of premium-grade Stainless Steel Hot Rolled Sheets, designed for use in construction, heavy machinery, shipbuilding, and industrial equipment.
Key Features
High
Strength
Durable
Construction
Precision
Finish
Wide
Compatibility
Corrosion
Resistant
Specifications
| Specification Category | Parameter / Feature | Details / Options |
|---|---|---|
| Size Range | Thickness | 3 mm to 100 mm (custom thicknesses available) |
| Width | 1000 mm, 1250 mm, 1500 mm, 2000 mm, wider sizes on request | |
| Length | 2000 mm, 2440 mm, 3000 mm, 6000 mm, cut-to-length options available | |
| Grades Available | Stainless Steel | SS 304, SS 316 |
| Surface Finish | Mill Finish | Hot Rolled, Pickled, and Descaled |
| Optional Finishes | Black, Matte, Polished (after processing) | |
| Standards & Certifications | ASTM | ASTM A240 / A480 |
| EN | EN 10088-2 | |
| ASME | ASME SA240 | |
| Certifications | ISO 9001:2015, PED 2014/68/EU | |
| Design Features | Tolerances | Wider tolerances compared to cold-rolled sheets |
| Edges | Mill Edge / Trimmed Edge | |
| Processing | Can be cut, welded, bent, drilled, or fabricated | |
| Applications / Usage | Heavy-Duty | Construction, Shipbuilding, Pressure Vessels |
| Industrial | Oil & Gas, Chemical, Power Plants |
Chemical Composition
| Element | SS 304 (%) | SS 304L (%) | SS 316 (%) | SS 316L (%) |
|---|---|---|---|---|
| Chromium (Cr) | 18.0 – 20.0 | 18.0 – 20.0 | 16.0 – 18.0 | 16.0 – 18.0 |
| Nickel (Ni) | 8.0 – 10.5 | 8.0 – 12.0 | 10.0 – 14.0 | 10.0 – 14.0 |
| Carbon (C) | ≤ 0.08 | ≤ 0.03 | ≤ 0.08 | ≤ 0.03 |
| Manganese (Mn) | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 |
| Iron (Fe) | Balance | Balance | Balance | Balance |
| Molybdenum (Mo) | — | — | 2.0 – 3.0 | 2.0 – 3.0 |
Mechanical Properties
| Property | Value | Unit / Standard |
|---|---|---|
| Tensile Strength | 515 – 620 | MPa (SS 304 / SS 316) |
| Yield Strength | 205 – 310 | MPa |
| Hardness | 150 – 217 | HB (Brinell) |
| Elongation | ≥ 40 | % |
| Density | 7.9 – 8.0 | g/cm³ |
| Impact Toughness | ≥ 100 – 150 | J (Charpy, grade-dependent) |
| Modulus of Elasticity (E) | ~193 – 200 | GPa |
| Fatigue Strength | 240 – 310 | MPa |
| Corrosion Resistance | Excellent in Industrial & Marine Environments | ASTM A240 (SS 304/316) |
| Thermal Conductivity | 14 – 16 | W/m·K |
| Coefficient of Thermal Expansion | 16 – 17 ×10⁻⁶ | /°C |
| Poisson’s Ratio | 0.27 – 0.30 | – |
| Operating Temperature Range | -196 to 870 | °C (material-dependent, SS 304/316) |
Applications of SS Hot Rolled Sheets / Plates
Construction &
Infrastructure
Automotive & Heavy
Equipment
Manufacturing &
Fabrication
Medical & Laboratory
Equipment
Electrical &
Electronics Assembly
Oil, Gas & Petrochemical
Installations
Do you have questions?
What is the difference between hot rolled and cold rolled stainless steel sheets?
Are hot rolled plates suitable for welding and fabrication?
Which grade is best for high-temperature resistance?
Do you offer edge processing or surface treatments?
