MS Sheet / Plate

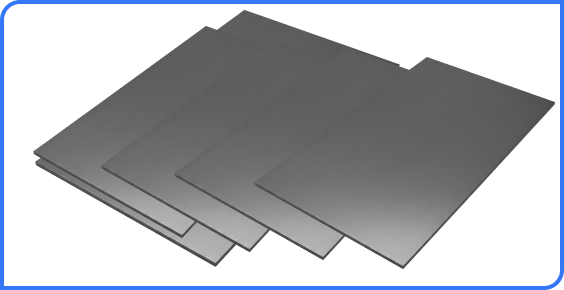

What are MS Sheets and Plates?
Mild Steel (MS) Sheets and Plates are fundamental raw materials widely used in construction, fabrication, automotive, shipbuilding, and industrial applications. Known for their strength, weldability, and cost-effectiveness, MS Sheets/Plates come in different forms such as Hot Rolled, Cold Rolled, Galvanized, Chequered, and Perforated to suit diverse industry requirements.
Asiad Steel Industries supplies high-quality MS Sheets and Plates manufactured in compliance with IS, ASTM, and other international standards, ensuring durability and reliability in every project.
Key Features
High Strength
Performance
Durable
Construction
Easy Fabrication
& Installation
Wide
Compatibility
Smooth
Surface Finish
Specifications
| Specification Category | Parameter / Feature | Details / Options |
|---|---|---|
| Product Types | Included Categories | HR Sheets/Plates, CR Sheets/Plates, Chequered Plates, Galvanized (GI) Sheets/Plates, Perforated Sheets |
| Size Range | HR Sheets/Plates | Thickness: 1.5 mm – 100 mm; Width: 1000 – 3000 mm; Length: 2500 – 12000 mm |
| CR Sheets/Plates | Thickness: 0.5 mm – 3 mm; Width: 1000 – 1250 mm; Length: 2500 – 6000 mm | |
| Chequered Plates | Thickness: 2.5 mm – 12 mm; Width: 1000 – 2500 mm; Length: 2500 – 12000 mm | |
| GI Sheets/Plates | Thickness: 0.5 mm – 6 mm; Width: 1000 – 2000 mm; Length: 2500 – 6000 mm | |
| Perforated Sheets | Thickness: 0.5 mm – 6 mm; Hole Dia: 1 – 50 mm; Custom sizes available | |
| Grades & Standards | Sheets/Plates | IS 2062 E250, E350; ASTM A36 |
| Manufacturing Method | Sheets & Plates | Hot Rolled (HR), Cold Rolled (CR), Galvanized, Perforated, Chequered |
| Surface Finish | Options | Black (HR), Bright (CR), Pickled & Oiled, Galvanized, Painted, Shot Blasted |
| Mechanical Properties | Yield Strength | 250 – 350 MPa (depending on grade) |
| Tensile Strength | 410 – 600 MPa | |
| Elongation | 20 – 25% (as per IS standards) | |
| Testing & Inspection | NDT | UT, RT, MPI |
| Destructive Tests | Tensile Test, Impact Test, Hardness Test |
Dimensions
| Product Type | Width (mm) | Thickness (mm) | Length (mm) | Weight (kg/m² per mm thickness) | Tolerances |
|---|---|---|---|---|---|
| Hot Rolled (HR) Sheets/Plates | 1000 / 1250 / 1500 / 2000 / 2500 / 3000 | 1.5 – 100 | 2500 – 12000 | ~7.85 | ±5% |
| Cold Rolled (CR) Sheets | 1000 / 1250 | 0.5 – 3 | 2500 – 6000 | ~7.85 | ±5% |
| MS Chequered Plates | 1000 / 1250 / 1500 / 2000 / 2500 | 2.5 – 12 | 2500 – 12000 | ~7.85 | ±5% |
| MS Galvanized (GI) Sheets/Plates | 1000 / 1250 / 1500 / 2000 | 0.5 – 6 | 2500 – 6000 | ~7.85 | ±5% |
| MS Perforated Sheets | 1000 / 1250 / 1500 | 0.5 – 6 (custom hole dia. 1–50) | 2500 – 6000 | Varies by design | ±5% |
Chemical Composition
| Element | IS 2062 E250 | IS 2062 E275 | IS 2062 E300 | IS 2062 E350 |
|---|---|---|---|---|
| Carbon (C) | ≤ 0.23 | ≤ 0.25 | ≤ 0.23 | ≤ 0.23 |
| Manganese (Mn) | 0.30 – 0.75 | 0.50 – 0.90 | 0.50 – 1.00 | 0.50 – 1.50 |
| Silicon (Si) | ≤ 0.40 | ≤ 0.40 | ≤ 0.40 | ≤ 0.40 |
| Phosphorus (P) | ≤ 0.050 | ≤ 0.050 | ≤ 0.045 | ≤ 0.045 |
| Sulfur (S) | ≤ 0.050 | ≤ 0.050 | ≤ 0.045 | ≤ 0.045 |
| Iron (Fe) | Balance | Balance | Balance | Balance |
Applications of MS Sheets & Plates
Construction &
Infrastructure
Automotive & Heavy
Equipment
Manufacturing &
Fabrication
Medical & Laboratory
Equipment
Electrical &
Electronics Assembly
Oil, Gas & Petrochemical
Installations
Do you have questions?
What is the difference between HR and CR Sheets?
Why are Chequered Plates preferred for flooring?
What are GI Sheets used for?
Can Perforated Sheets be customized?
