Hose Nipple
What is a Hose Nipple?

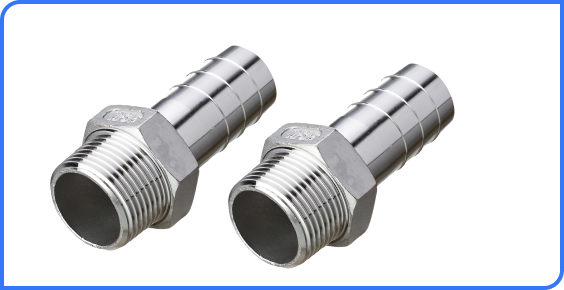

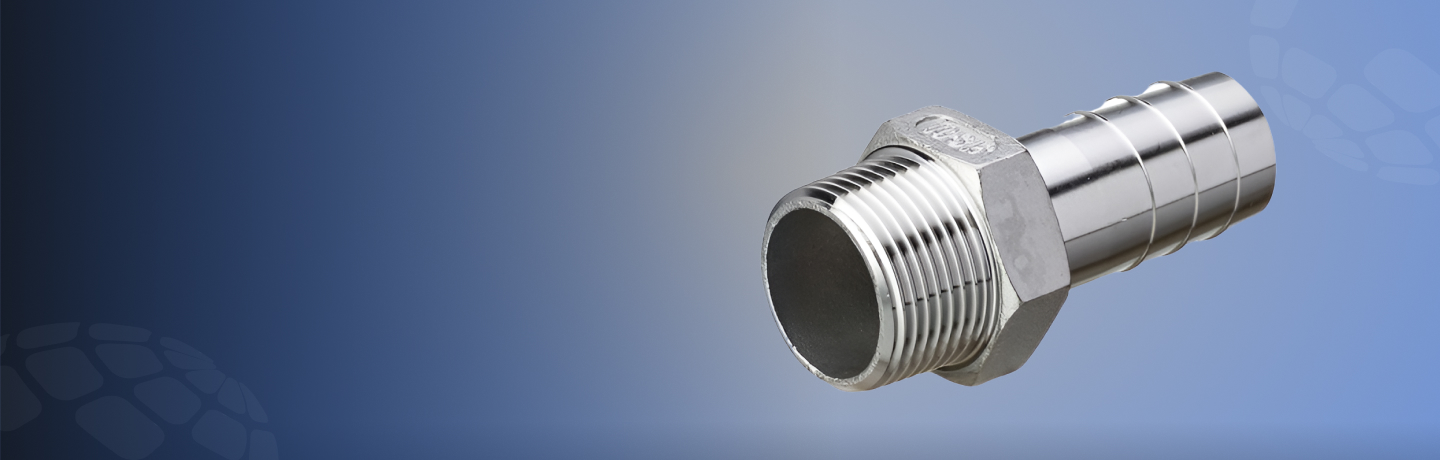

A Hose Nipple is a threaded fitting machined from solid bar stock, used to connect flexible hoses to rigid piping systems. One end features male pipe threads, while the other is a barbed or smooth shank to securely grip the hose using clamps or ferrules.
Hose nipples are ideal for air, gas, steam, oil, and fluid transfer lines across various industries like agriculture, marine, industrial plants, and chemical facilities.
Key Features
Leak-Proof
Jointing
Durable
Construction
Easy Installation
& Removal
Wide
Compatibility
Corrosion
Resistant
Specifications
| Specification Category | Parameter / Feature | Details / Options |
|---|---|---|
| Size Range | Nominal Size | ½” to 4″ (custom sizes available) |
| Pressure Ratings | ANSI / ASME Class | Class 150, 300, 600, 900, 1500, 2500 |
| PN Ratings | PN6, PN10, PN16, PN25, PN40, PN64 | |
| Product Types | Bar Stock Threaded Fitting | Hose Nipple, Short Nipple |
| Material Options | Carbon Steel | ASTM A105, ASTM A350 LF2 |
| Stainless Steel | ASTM A182 F304, F316, F321 | |
| Alloy Steel | ASTM A182 F5, F9, F11, F22 | |
| Other Alloys | Monel, Inconel, Titanium | |
| Standards & Certifications | ASTM | ASTM A182, ASTM A105 |
| ASME / ANSI | ASME B1.20.1, ASME B16.11 | |
| MSS | MSS SP-79, MSS SP-83 | |
| European Standards | EN 10241, EN 10226 | |
| Certifications | ISO 9001, PED 2014/68/EU, NACE MR0175, CE Marked | |
| Design Features | Thread Type | NPT, BSPT, BSPP |
| Wall Thickness | As per ASTM / ASME standards, schedule 40, 80 | |
| End Connections | Male Threaded / Hose Tail | |
| Pressure Class | 2000#, 3000#, 6000#, 9000# | |
| Tolerance | Thread Tolerance | As per ASME B1.20.1 / ISO 7-1 |
| Coating & Surface Finish | Anti-Corrosion Coating | Zinc Plated, Passivation, Nickel Plating |
| Surface Finish | Mill Finish, Polished, Pickled, Bead Blasted | |
| Testing & Inspection | Pressure Testing | Hydrostatic, Pneumatic |
| Non-Destructive Testing | Dye Penetrant (DPT), Magnetic Particle (MPI) | |
| Destructive Testing | Tensile, Hardness, Torque Test |
Dimensions
| Fitting Type | Nominal Size (NPS) | Outside Diameter (OD) | Thread Length (T) | Hose Tail Length (H) | Thread Type | Weight per Piece |
|---|---|---|---|---|---|---|
| Hose Nipple | ½” | 21.3 mm | 20 mm | 25 mm | NPT / BSPT | 100g |
| Hose Nipple | ¾” | 26.7 mm | 22 mm | 28 mm | NPT / BSPT | 150g |
| Hose Nipple | 1″ | 33.4 mm | 25 mm | 32 mm | NPT / BSPT | 220g |
| Hose Nipple | 1½” | 48.3 mm | 28 mm | 40 mm | NPT / BSPT | 350g |
| Hose Nipple | 2″ | 60.3 mm | 30 mm | 45 mm | NPT / BSPT | 500g |
| Hose Nipple | 2½” | 73.0 mm | 35 mm | 50 mm | NPT / BSPT | 700g |
| Hose Nipple | 3″ | 88.9 mm | 40 mm | 60 mm | NPT / BSPT | 900g |
| Hose Nipple | 4″ | 114.3 mm | 50 mm | 70 mm | NPT / BSPT | 1.2kg |
Mechanical Properties
| Property | Value | Unit / Standard |
|---|---|---|
| Tensile Strength | 485 – 750 | MPa (Carbon Steel, Stainless Steel, Alloy Steel) |
| Yield Strength | 170 – 450 | MPa |
| Hardness | 120 – 200 | HB (Brinell) |
| Elongation | ≥ 20 – 30 | % |
| Density | 7.8 – 8.0 | g/cm³ (Carbon Steel), 7.9 – 8.0 g/cm³ (Stainless Steel) |
| Impact Toughness | ≥ 27 – 70 | J (Charpy, grade-dependent) |
| Modulus of Elasticity (E) | ~200 | GPa |
| Fatigue Strength | 250 – 450 | MPa |
| Corrosion Resistance | Good to Excellent (SS > CS > Alloy Steel) | – |
| Thermal Conductivity | 15 – 50 | W/m·K |
| Coefficient of Thermal Expansion | 11 – 17 ×10⁻⁶ | /°C |
| Yield Ratio (YS/UTS) | 0.40 – 0.65 | – |
| Poisson’s Ratio | 0.27 – 0.30 | – |
| Brinell Hardness Range | 120 – 200 | HB |
| Surface Finish | Mill Finish, Pickled, Polished, Bead Blasted | – |
| Thread Type | NPT / BSPT | – |
| End Connections | Male Threaded / Hose Tail | – |
| Operating Temperature Range | -46 to 600 | °C (material-dependent) |
| Pressure Rating | Class 150, 300, 600, 900, 1500, 2500 | ASME B1.20.1 / ASME B16.11 |
Chemical Composition
| Element | SS 304 | SS 304L | SS 316 | SS 316L |
|---|---|---|---|---|
| Chromium (Cr) | 18.0 – 20.0 | 18.0 – 20.0 | 16.0 – 18.0 | 16.0 – 18.0 |
| Nickel (Ni) | 8.0 – 10.5 | 8.0 – 12.0 | 10.0 – 14.0 | 10.0 – 14.0 |
| Carbon (C) | ≤ 0.08 | ≤ 0.03 | ≤ 0.08 | ≤ 0.03 |
| Manganese (Mn) | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 |
| Iron (Fe) | Balance | Balance | Balance | Balance |
| Molybdenum (Mo) | — | — | 2.0 – 3.0 | 2.0 – 3.0 |
Applications of Hose Nipples
Construction &
Infrastructure
Automotive & Heavy
Equipment
Manufacturing &
Fabrication
Medical & Laboratory
Equipment
Electrical &
Electronics Assembly
Oil, Gas & Petrochemical
Installations
Do you have questions?
What is the purpose of a hose nipple?
Do you provide hose nipples in SS 316?
How are hose nipples secured to hoses?
Are hose nipples leak-proof?
