Globe Valves
What are Globe Valves?

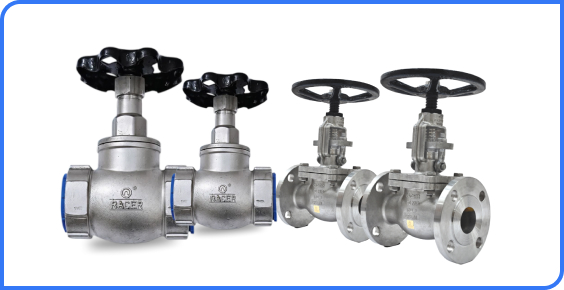

Globe Valves are linear motion valves designed primarily for regulating flow in pipelines. Unlike gate valves, they feature a disk that moves perpendicular to the seat, enabling precise throttling and tight shut-off. These valves are ideal where flow control and frequent operation are required—especially in steam lines, cooling systems, and chemical plants.
Asiad Steel Industries is a reputed manufacturer and supplier of premium-grade Globe Valves under the Racer brand, built to meet demanding industrial applications across diverse sectors.
Key Features
Leak-Proof
Jointing
Robust
Construction
High Pressure
Resistance
Standards
Compliant
Corrosion
Resistant
Specifications
| Specification Category | Parameter / Feature | Details / Options |
|---|---|---|
| Size Range | Nominal Pipe Size (NPS) | ½” to 48” (DN15 – DN1200) |
| Pressure Ratings | ANSI / ASME Class | Class 150, 300, 600, 900, 1500, 2500 |
| PN Ratings | PN Ratings | PN6, PN10, PN16, PN25, PN40, PN64 |
| Fitting Types | Gate Valve | Gate Valve FE |
| Material Options | Stainless Steel | SS 304, SS 304L, SS 316, SS 316L, SS 321 |
| Standards & Certifications | ASME / ANSI | ASME B16.34 (Gate Valves), ASME B16.10 (Face-to-Face), ASME B16.5 (Flanged Ends) |
| ASTM | ASTM A351, ASTM A182, ASTM A479 | |
| European Standards | EN 558, EN 1092, DIN 3352 | |
| Certifications | ISO 9001, PED 2014/68/EU, NACE MR0175, IBR Approved | |
| Design Features | Wall Thickness | As per ASME B36.10 (CS), ASME B36.19 (SS), customized options |
| End Connections | Flanged Ends, Threaded Ends, Butt Weld Ends | |
| Tolerance | As per ASME / ANSI standards | |
| Coating & Surface Finish | Anti-Corrosion Coating | Rust Preventive Oil, Black Oxide, Hot-Dip Galvanized |
| Optional Coatings | Epoxy, PTFE, Polyurethane | |
| Surface Finish | Machined, Pickled, Polished, Passivated | |
| Testing & Inspection | Pressure Testing | Hydrostatic, Pneumatic |
| Non-Destructive Testing | Radiography (RT), Ultrasonic (UT), Magnetic Particle (MPI), Dye Penetrant (DPT) | |
| Destructive Testing | Tensile, Hardness, Impact |
Dimensions
| Nominal Size (NPS / DN) | Face-to-Face Length (L) | Flange Diameter (D) | Bolt Circle Diameter (K) | Number of Bolts (n) | Bolt Size (d) | Height (H) | Handwheel Diameter (HW) |
|---|---|---|---|---|---|---|---|
| ½” / DN15 | 140 mm | 115 mm | 85 mm | 4 | M16 | 160 mm | 150 mm |
| ¾” / DN20 | 150 mm | 140 mm | 100 mm | 4 | M16 | 180 mm | 150 mm |
| 1″ / DN25 | 165 mm | 150 mm | 110 mm | 4 | M16 | 190 mm | 150 mm |
| 1½” / DN40 | 200 mm | 165 mm | 125 mm | 4 | M16 | 210 mm | 200 mm |
| 2″ / DN50 | 230 mm | 185 mm | 145 mm | 4 | M16 | 240 mm | 200 mm |
| 2½” / DN65 | 250 mm | 200 mm | 160 mm | 4 | M16 | 260 mm | 250 mm |
| 3″ / DN80 | 280 mm | 220 mm | 180 mm | 8 | M16 | 280 mm | 250 mm |
| 4″ / DN100 | 310 mm | 250 mm | 210 mm | 8 | M16 | 320 mm | 300 mm |
| 5″ / DN125 | 350 mm | 285 mm | 240 mm | 8 | M20 | 350 mm | 300 mm |
| 6″ / DN150 | 400 mm | 320 mm | 275 mm | 8 | M20 | 380 mm | 350 mm |
| 8″ / DN200 | 500 mm | 400 mm | 340 mm | 12 | M20 | 450 mm | 400 mm |
| 10″ / DN250 | 600 mm | 460 mm | 405 mm | 12 | M22 | 520 mm | 450 mm |
| 12″ / DN300 | 700 mm | 520 mm | 470 mm | 12 | M22 | 600 mm | 500 mm |
| 14″ / DN350 | 800 mm | 580 mm | 535 mm | 16 | M24 | 680 mm | 550 mm |
| 16″ / DN400 | 900 mm | 640 mm | 600 mm | 16 | M24 | 750 mm | 600 mm |
| 18″ / DN450 | 1000 mm | 700 mm | 665 mm | 20 | M27 | 820 mm | 650 mm |
| 20″ / DN500 | 1100 mm | 760 mm | 725 mm | 20 | M27 | 900 mm | 700 mm |
| 24″ / DN600 | 1250 mm | 890 mm | 840 mm | 20 | M30 | 1050 mm | 800 mm |
Mechanical Properties
| Property | Value | Unit / Standard |
|---|---|---|
| Tensile Strength | 485 – 750 | MPa (SS 304, SS 304L, SS 316, SS 316L, SS 321) |
| Yield Strength | 170 – 450 | MPa |
| Hardness | 120 – 200 | HB (Brinell) |
| Elongation | ≥ 20 – 30 | % |
| Density | 7.8 – 8.0 | g/cm³ |
| Impact Toughness | ≥ 27 – 70 | J (Charpy, grade-dependent) |
| Modulus of Elasticity (E) | ~200 | GPa |
| Fatigue Strength | 250 – 450 | MPa |
| Corrosion Resistance | Excellent | – |
| Thermal Conductivity | 15 – 50 | W/m·K |
| Coefficient of Thermal Expansion | 11 – 17 ×10⁻⁶ | /°C |
| Yield Ratio (YS/UTS) | 0.40 – 0.65 | – |
| Poisson’s Ratio | 0.27 – 0.30 | – |
| Brinell Hardness Range | 120 – 200 | HB |
| Surface Finish | Machined, Polished, Passivated | – |
| Operating Temperature Range | -46 to 600 | °C (material-dependent) |
| Pressure Rating | Class 150, 300, 600, 900, 1500, 2500 | ASME B16.34 Standards |
| Valve Type | Globe Valve SE / Globe Valve FE | – |
| End Connections | Flanged, Threaded, Socket Weld | – |
| Actuation | Manual / Gear / Electric / Pneumatic | – |
Chemical Composition
| Element | SS 304 (%) | SS 304L (%) | SS 316 (%) | SS 316L (%) |
|---|---|---|---|---|
| Carbon (C) | ≤ 0.08 | ≤ 0.03 | ≤ 0.08 | ≤ 0.03 |
| Manganese (Mn) | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 |
| Chromium (Cr) | 18.0 – 20.0 | 18.0 – 20.0 | 16.0 – 18.0 | 16.0 – 18.0 |
| Nickel (Ni) | 8.0 – 10.5 | 8.0 – 12.0 | 10.0 – 14.0 | 10.0 – 14.0 |
| Molybdenum (Mo) | — | — | 2.0 – 3.0 | 2.0 – 3.0 |
| Nitrogen (N) | — | — | ≤ 0.10 | ≤ 0.10 |
| Iron (Fe) | Balance | Balance | Balance | Balance |
Applications of Globe Valves
Construction &
Infrastructure
Automotive & Heavy
Equipment
Manufacturing &
Fabrication
Medical & Laboratory
Equipment
Electrical &
Electronics Assembly
Oil, Gas & Petrochemical
Installations
