Flanged Valves

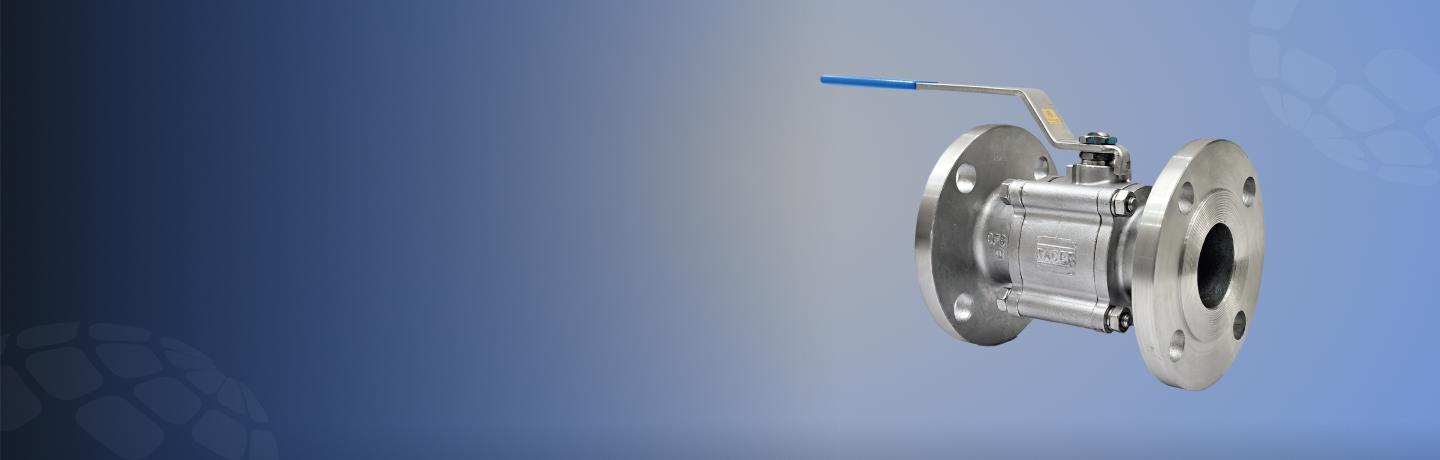

What are Flanged Valves?

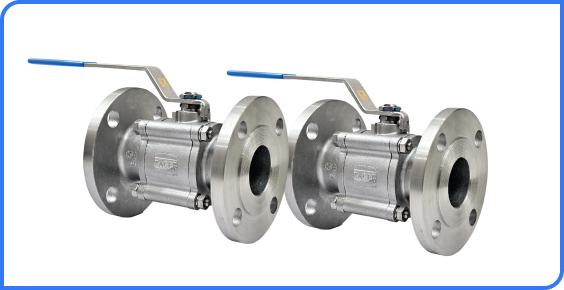

Flanged valves are industrial valves that use flanged ends to connect directly to pipeline flanges, providing a secure and leak-resistant joint. They are widely used in high-pressure and high-temperature systems for industrial applications.
Asiad Steel Industries is a trusted manufacturer, supplier, and exporter of premium flanged valves under the Racer brand. Racer flanged valves are designed for durability, corrosion resistance, and precise flow control, making them ideal for industries such as oil & gas, petrochemical, water treatment, and power generation.
Key Features
Leak-Proof
Jointing
Robust
Construction
High Pressure
Resistance
Standards
Compliant
Corrosion
Resistant
Specifications
| Specification Category | Parameter / Feature | Details / Options |
|---|---|---|
| Size Range | Nominal Pipe Size (NPS) | ½” to 48” (DN15 – DN1200) |
| Pressure Ratings | ANSI / ASME Class | Class 150, 300, 600, 900, 1500, 2500 |
| PN Ratings | PN Ratings | PN6, PN10, PN16, PN25, PN40, PN64 |
| Valve Types | Flanged Valves | Gate Valve, Globe Valve, Check Valve, Ball Valve, Butterfly Valve (depending on application) |
| Material Options | Stainless Steel | SS 304, SS 304L, SS 316, SS 316L, SS 321 |
| Standards & Certifications | ASME / ANSI | ASME B16.5 (Flanges), ASME B16.34 (Valves) |
| ASTM | ASTM A216, ASTM A351, ASTM A182 | |
| European Standards | EN 1092, DIN 3352 | |
| Certifications | ISO 9001, PED 2014/68/EU, NACE MR0175, IBR Approved | |
| Design Features | Wall Thickness | As per ASME B16.34, customized options |
| End Connections | Flanged Ends (RF / RTJ), Raised Face, Flat Face | |
| Tolerance | As per ASME / ANSI standards | |
| Coating & Surface Finish | Anti-Corrosion Coating | Rust Preventive Oil, Black Oxide, Hot-Dip Galvanized |
| Optional Coatings | Epoxy, PTFE, Polyurethane | |
| Surface Finish | Machined, Pickled, Polished, Passivated | |
| Testing & Inspection | Pressure Testing | Hydrostatic, Pneumatic |
| Non-Destructive Testing | Radiography (RT), Ultrasonic (UT), Magnetic Particle (MPI), Dye Penetrant (DPT) | |
| Destructive Testing | Tensile, Hardness, Impact |
Dimensions
| Nominal Size (NPS / DN) | Face-to-Face Length (mm) | End Connection Type | Flange Details |
|---|---|---|---|
| ½” (DN15) | 108 | Flanged | ASME B16.5 Class 150 |
| 1″ (DN25) | 127 | Flanged | ASME B16.5 Class 150 |
| 2″ (DN50) | 191 | Flanged | ASME B16.5 Class 150 / 300 |
| 4″ (DN100) | 292 | Flanged | ASME B16.5 Class 150 / 300 |
| 6″ (DN150) | 356 | Flanged | ASME B16.5 Class 150 / 300 |
| 8″ (DN200) | 457 | Flanged | ASME B16.5 Class 150 / 300 |
| 12″ (DN300) | 610 | Flanged | ASME B16.5 Class 150 / 300 |
| 16″ (DN400) | 762 | Flanged | ASME B16.5 Class 150 / 300 |
| 20″ (DN500) | 914 | Flanged | ASME B16.5 Class 150 / 300 |
Mechanical Properties
| Property | Value | Unit / Standard |
|---|---|---|
| Tensile Strength | 485 – 750 | MPa |
| Yield Strength | 170 – 450 | MPa |
| Hardness | 120 – 200 | HB |
| Elongation | ≥ 20 – 30 | % |
| Density | 7.8 – 8.0 | g/cm³ |
| Impact Toughness | ≥ 27 – 70 | J (Charpy) |
| Modulus of Elasticity (E) | ~200 | GPa |
| Corrosion Resistance | Good to Excellent | – |
| Operating Temperature Range | -46 to 600 | °C |
| Pressure Rating | Class 150 – 2500 | ASME B16.34 / API 6D |
Chemical Composition
| Element | SS 304 (%) | SS 304L (%) | SS 316 (%) | SS 316L (%) |
|---|---|---|---|---|
| Carbon (C) | ≤ 0.08 | ≤ 0.03 | ≤ 0.08 | ≤ 0.03 |
| Manganese (Mn) | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 |
| Chromium (Cr) | 18.0 – 20.0 | 18.0 – 20.0 | 16.0 – 18.0 | 16.0 – 18.0 |
| Nickel (Ni) | 8.0 – 10.5 | 8.0 – 12.0 | 10.0 – 14.0 | 10.0 – 14.0 |
| Molybdenum (Mo) | — | — | 2.0 – 3.0 | 2.0 – 3.0 |
| Nitrogen (N) | — | — | ≤ 0.10 | ≤ 0.10 |
| Iron (Fe) | Balance | Balance | Balance | Balance |
Applications of Flanged Valves
Construction &
Infrastructure
Power Generation &
Energy Sector
Manufacturing &
Fabrication
Medical & Laboratory
Equipment
Electrical &
Electronics Assembly
Oil, Gas & Petrochemical
Installations
