Fittings
What are Pipe Fittings?

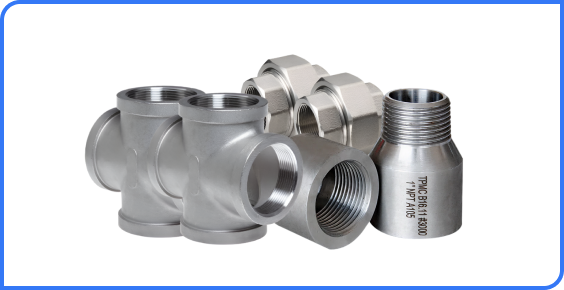

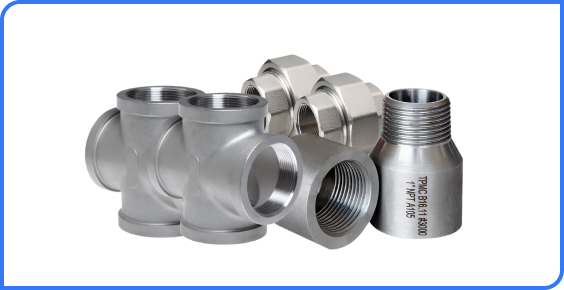

Pipe fittings are essential components used to connect, redirect, or terminate the flow of fluids in piping systems. Fittings come in various types depending on their application, pressure class, and material. We offer a complete range of industrial-grade pipe fittings including Forged Fittings, Buttweld Fittings, Bar Stock Threaded Pipe Fittings, and Investment Casting Fittings designed for high-performance fluid systems.
Key Features
Leak-Proof
Jointing
Durable
Construction
Easy Installation
& Removal
Wide
Compatibility
Corrosion
Resistant
Specifications
| Specification Category | Parameter / Feature | Details / Options |
|---|---|---|
| Size Range | Nominal Pipe Size (NPS) | ½” to 48” (DN15 – DN1200) |
| Custom Sizes | Available on request for special projects | |
| Pressure Ratings | ANSI / ASME Class | Class 150, 300, 600, 900, 1500, 2500 |
| PN Ratings | PN6, PN10, PN16, PN25, PN40, PN64 | |
| Fitting Types | Butt Weld Fittings | Elbow (45°, 90°, 180°), Tee (Equal & Reducing), Reducer (Concentric, Eccentric), End Cap, Stub End |
| Socket Weld Fittings | Elbow, Tee, Cross, Coupling, Cap | |
| Threaded Fittings | Elbow, Tee, Coupling, Union, Plug, Cap | |
| Bar Stock Threaded Fittings | High-pressure threaded pipe fittings (Elbow, Tee, Cross, Coupling, Union, Plug, Cap) are manufactured from solid bar stock for superior strength | |
| Investment Casting Fittings | Complex-shaped threaded fittings (Elbow, Tee, Coupling, Cap, Union) manufactured through precision casting for accuracy & smooth surface finish | |
| Material Options | Stainless Steel | SS 304, SS 304L, SS 316, SS 316L, SS 321 |
| Carbon Steel | ASTM A234 WPB, ASTM A420 WPL6 | |
| Alloy / Superalloy | Alloy Steel (A234 WP1, WP5, WP9, WP11, WP22, WP91), Inconel 600/625/825 | |
| Duplex & Super Duplex | Duplex 2205, Super Duplex 2507 | |
| Other Materials | Monel 400/K500, Nickel 200/201, Titanium (Grade 2, Grade 5) | |
| Standards & Certifications | ASME / ANSI | ASME B16.9 (Butt Weld), ASME B16.11 (Socket Weld & Threaded), ASME B16.28 (Short Radius Elbows & Returns) |
| ASTM | ASTM A234, ASTM A403, ASTM B366 | |
| European Standards | DIN 2605, DIN 2615, DIN 2616, EN 10253 | |
| Certifications | ISO 9001, PED 2014/68/EU, NACE MR0175, IBR Approved | |
| Design Features | Wall Thickness | As per ASME B36.10 (CS), ASME B36.19 (SS), customized options |
| Bend Radius (Elbows) | Short Radius (SR), Long Radius (LR) | |
| End Connections | Beveled Ends, Plain Ends, Threaded, Socket Weld Ends | |
| Tolerance | As per ASME/ANSI standards | |
| Coating & Surface Finish | Anti-Corrosion Coating | Rust Preventive Oil, Black Oxide, Hot-Dip Galvanized |
| Optional Coatings | Epoxy, PTFE, Polyurethane | |
| Surface Finish | Machined, Pickled, Polished, Passivated | |
| Testing & Inspection | Pressure Testing | Hydrostatic, Pneumatic |
| Non-Destructive Testing | Radiography (RT), Ultrasonic (UT), Magnetic Particle (MPI), Dye Penetrant (DPT) | |
| Destructive Testing | Tensile, Hardness, Impact | |
| Certifications Provided | EN 10204 3.1 / 3.2, Mill Test Certificate (MTC) |
Dimension in mm of forged screwed fittings to ANSI B-16.11 threaded to ASA B 2.1
| NOM BORE | PIPE O.D. | 3000 L.B.S. | COMMON FACTORS | 6000 L.B.S. | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | G | H | K | D | E | F | I | J | L | A | B | C | G | H | K | ||
| 1/8″ | 10.3 | 21 | 22 | 17 | 32 | 16 | 19 | 11 | 10 | 40 | 4 | 3 | 6 | 25 | 25 | 19 | 32 | 19 | 22 |
| 1/4″ | 13.7 | 23 | 25 | 22 | 36 | 18 | 21 | 13 | 11.5 | 43 | 4 | 3 | 8 | 29 | 29 | 23 | 36 | 23 | 27 |
| 3/8″ | 17.1 | 28 | 30 | 28 | 42 | 23 | 26 | 17.5 | 13 | 48 | 4 | 3 | 10 | 33 | 33 | 28 | 42 | 28 | 33 |
| 1/2″ | 21.3 | 33 | 38 | 35 | 48 | 28 | 33 | 22 | 17.5 | 53 | 4 | 3 | 13 | 38 | 38 | 35 | 48 | 35 | 38 |
| 3/4″ | 26.7 | 38 | 45 | 39 | 51 | 35 | 37 | 27 | 16 | 57 | 4 | 3 | 16 | 51 | 51 | 45 | 54 | 41 | 48 |
| 1″ | 33.4 | 45 | 51 | 48 | 57 | 42 | 44 | 33 | 21 | 70 | 6 | 3 | 19 | 57 | 57 | 48 | 64 | 48 | 51 |
| 1 1/4″ | 42.2 | 51 | 60 | 55 | 67 | 51 | 57 | 44.5 | 21 | 78 | 6 | 3 | 22 | 64 | 64 | 55 | 76 | 57 | 64 |
| 1 1/2″ | 48.3 | 60 | 67 | 62 | 76 | 57 | 64 | 51 | 22 | 89 | 6 | 3 | 25 | 73 | 73 | 64 | 83 | 67 | 70 |
| 2″ | 60.3 | 70 | 83 | 75 | 92 | 70 | 76 | 63.5 | 22 | 102 | 8 | 3 | 29 | 86 | 86 | 75 | 96 | 80 | 83 |
| 2 1/2″ | 73.0 | 83 | 95 | 88 | 106 | 86 | 92 | 83.5 | 22 | 108 | 8 | 3 | 35 | 102 | 102 | 88 | 121 | 92 | 102 |
| 3″ | 88.9 | 95 | 114 | 104 | 122 | 104 | 108 | 96 | 22 | 121 | 10 | 3 | 38 | 127 | 127 | 104 | 140 | 108 | 114 |
| 4″ | 114.5 | 114 | 152 | 121 | 148 | 121 | 148 | 117.5 | 32 | 150 | 12 | 3 | 51 | 180 | 152 | 152 | 152 | 129 | 152 |
Dimension of butt welding fittings to ANSI B 16.9/MSS SP 43
| Nominal Pipe Size (NPS) | Outside Diameter (OD) (mm) | Center-to-End (C) (mm) | Center-to-End (M) (mm) | Overall Length (L) (mm) | Wall Thickness (Std. Sch 40) (mm) | Approx. Weight (kg) |
|---|---|---|---|---|---|---|
| 1/2″ (15) | 21.3 | 25 | 25 | 38 | 2.77 | 0.20 |
| 3/4″ (20) | 26.7 | 29 | 29 | 38 | 2.87 | 0.30 |
| 1″ (25) | 33.4 | 38 | 38 | 48 | 3.38 | 0.45 |
| 1 1/2″ (40) | 48.3 | 57 | 57 | 76 | 3.68 | 1.00 |
| 2″ (50) | 60.3 | 64 | 64 | 89 | 3.91 | 1.90 |
| 2 1/2″ (65) | 73.0 | 76 | 76 | 102 | 5.16 | 3.00 |
| 3″ (80) | 88.9 | 86 | 86 | 114 | 5.49 | 4.60 |
| 4″ (100) | 114.3 | 105 | 105 | 152 | 6.02 | 8.00 |
| 5″ (125) | 141.3 | 124 | 124 | 190 | 6.55 | 12.50 |
| 6″ (150) | 168.3 | 143 | 143 | 229 | 7.11 | 18.00 |
| 8″ (200) | 219.1 | 178 | 178 | 305 | 8.18 | 32.00 |
| 10″ (250) | 273.0 | 216 | 216 | 381 | 9.27 | 52.00 |
| 12″ (300) | 323.9 | 254 | 254 | 457 | 9.53 | 75.00 |
| 14″ (350) | 355.6 | 279 | 279 | 533 | 9.53 | 100.00 |
| 16″ (400) | 406.4 | 305 | 305 | 610 | 9.53 | 130.00 |
| 18″ (450) | 457.2 | 343 | 343 | 686 | 9.53 | 165.00 |
| 20″ (500) | 508.0 | 381 | 381 | 762 | 9.53 | 210.00 |
| 24″ (600) | 610.0 | 432 | 432 | 914 | 9.53 | 310.00 |
Dimensions of Investment Casting Fittings (ANSI B16.9 / MSS SP 43)
| NOM BORE (inch) | PIPE OD (mm) | RADIUS ‘R’ (mm) | LENGTH ‘L’ (mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 1D | 1.5D | B 1.5D | K | E/E1 | G | MSS SP 43 | ANSI B 16.9 | D | ||
| 1/2 | 21.3 | 12.7 | 38.1 | 15.9 | 48 | 25.4 | 34.9 | 50.8 | 76.2 | 45 |
| 3/4 | 26.7 | 19.05 | 38.1 | 19.0 | 51 | 25.4 | 42.8 | 50.8 | 76.2 | 54 |
| 1 | 33.4 | 25.4 | 38.1 | 22.2 | 56 | 38.1 | 50.8 | 50.8 | 101.6 | 64 |
| 1 1/4 | 42.1 | 31.75 | 47.6 | 25.0 | 70 | 38.1 | 63.5 | 50.8 | 101.6 | 74 |
| 1 1/2 | 48.3 | 38.1 | 57.15 | 28.6 | 83 | 38.1 | 73.0 | 50.8 | 101.6 | 84 |
| 2 | 60.3 | 50.8 | 76.2 | 35.0 | 106 | 44* | 92.0 | 63.5 | 152.4 | 102 |
| 2 1/2 | 73.0 | 63.5 | 95.25 | 44.0 | 132 | 51 | 106 | 63.5 | 152.4 | 122 |
| 3 | 88.9 | 76.2 | 114.3 | 50.8 | 159 | 64* | 127.0 | 63.5 | 152.4 | 138 |
| 3 1/2 | 101.6 | 88.9 | 133.35 | 57.2 | 184 | 76* | 139.7 | 76.2 | 152.4 | 148 |
| 4 | 114.3 | 101.3 | 152.4 | 63.5 | 210 | 76* | 157.2 | 76.2 | 152.4 | 158 |
| 5 | 141.3 | 127.0 | 190.5 | 79.4 | 262 | 89* | 185.7 | 76.2 | 208.2 | 188 |
| 6 | 168.3 | 152.4 | 228.6 | 95.3 | 313 | 102* | 218 | 88.9 | 203.2 | 212 |
| 8 | 219.1 | 203.2 | 304.8 | 127.0 | 414 | 127* | 270.0 | 101.6 | 203.2 | 270 |
| 10 | 273.1 | 254.0 | 381.0 | 158.7 | 518 | 152* | 324.0 | 127.0 | 254.0 | 325 |
| 12 | 323.9 | 304.8 | 457.2 | 190.5 | 619 | 178* | 381.0 | 152.4 | 254.0 | 380 |
| 14 | 355.6 | 355.6 | 533.4 | 222.2 | 711 | 191* | 412.8 | 152.4 | 305.0 | 415 |
| 16 | 406.4 | 406.4 | 609.6 | 254.0 | – | 203* | 470.0 | 152.4 | 305.0 | 470 |
