Dairy Valves
What are Dairy Valves?

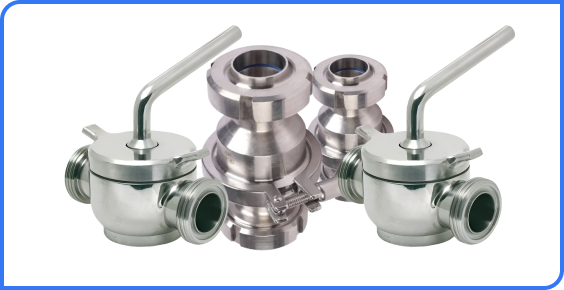

Dairy Valves are precision-engineered flow control devices used in sanitary process systems to regulate, isolate, or divert fluid flow in a hygienic manner. These valves are essential for maintaining product purity and process efficiency in industries such as dairy, food, beverage, and pharmaceuticals.
Asiad Steel Industries is a leading manufacturer and supplier of high-quality dairy valves, available in stainless steel 304/316L with polished interiors and end connections that match SMS, DIN, and ISO standards.
Key Features
Leak-Proof
Jointing
Sanitary
Design
Easy to
Clean
Standards
Compliant
Corrosion
Resistant
Specifications
| Specification Category | Parameter / Feature | Details / Options |
|---|---|---|
| Size Range | Nominal Pipe Size (NPS) | ½” to 48” (DN15 – DN1200) |
| Pressure Ratings | ANSI / ASME Class | Class 150, 300, 600, 900, 1500, 2500 |
| PN Ratings | PN Ratings | PN6, PN10, PN16, PN25, PN40, PN64 |
| Valve Types | Butterfly Valve | Wafer / Lug / Flanged, Hygienic / Standard |
| Plug Valve | Manual / Pneumatic, Stainless Steel / Carbon Steel | |
| NRV (Non-Return Valve) | Swing / Lift, Stainless Steel / Carbon Steel | |
| FRV (Foot / Flow Control Valve) | Hygienic / Standard, Stainless Steel | |
| Micro Valve with Union | Manual / Pneumatic, Hygienic, Stainless Steel | |
| Material Options | Stainless Steel | SS 304, SS 304L, SS 316, SS 316L, SS 321 |
| Standards & Certifications | ASME / ANSI | ASME B16.34, ASME B16.10, ASME B16.5 |
| ASTM | ASTM A351, ASTM A182, ASTM A479 | |
| European Standards | DIN EN 1092, EN 12266 | |
| Certifications | ISO 9001, PED 2014/68/EU, 3-A Sanitary Standard, EHEDG, NACE MR0175, IBR Approved | |
| Design Features | End Connections | Flanged, Threaded, Butt Weld, Socket Weld, Clamp / Tri-Clamp |
| Wall Thickness | As per ASME B16.34, customized options available | |
| Actuation | Manual (Handwheel / Lever), Pneumatic, Electric | |
| Seat / Sealing | PTFE, EPDM, NBR, Viton, Metal-to-Metal | |
| Coating & Surface Finish | Anti-Corrosion Coating | Rust Preventive Oil, Black Oxide, Hot-Dip Galvanized |
| Optional Coatings | Epoxy, PTFE, Polyurethane | |
| Surface Finish | Machined, Pickled, Polished, Electro-polished, Passivated | |
| Testing & Inspection | Pressure Testing | Hydrostatic, Pneumatic |
| Non-Destructive Testing | Radiography (RT), Ultrasonic (UT), Magnetic Particle (MPI), Dye Penetrant (DPT) | |
| Destructive Testing | Tensile, Hardness, Impact | |
| Operating Temperature Range | – | -46 to 600°C (material-dependent) |
| Corrosion Resistance | – | Excellent (SS > Duplex > Alloy Steel > Carbon Steel) |
Dimensions
| Valve Type | Nominal Size (NPS / DN) | Face-to-Face Length (L) | Flange Diameter (D) | Bolt Circle (BC) | Number of Bolts (n) | Pressure Rating | Operating Temp Range |
|---|---|---|---|---|---|---|---|
| Butterfly Valve | ½” – 48” (DN15 – DN1200) | 60 – 500 mm (depends on NPS) | 90 – 1200 mm | 65 – 1180 mm | 4 – 20 | PN6 – PN64 / Class 150 – 2500 | -46 to 200°C (PTFE seat) / up to 400°C (Metal seat) |
| Plug Valve | ½” – 24” (DN15 – DN600) | 70 – 400 mm | 95 – 600 mm | 70 – 570 mm | 4 – 16 | PN6 – PN40 / Class 150 – 600 | -46 to 300°C |
| NRV (Non-Return Valve) | ½” – 48” (DN15 – DN1200) | 100 – 550 mm | 110 – 1200 mm | 80 – 1180 mm | 4 – 20 | PN6 – PN64 / Class 150 – 2500 | -46 to 400°C |
| FRV (Flow / Foot Valve) | ½” – 24” (DN15 – DN600) | 80 – 400 mm | 95 – 600 mm | 70 – 570 mm | 4 – 16 | PN6 – PN40 / Class 150 – 600 | -46 to 300°C |
| Micro Valve with Union | ½” – 6” (DN15 – DN150) | 60 – 180 mm | 80 – 200 mm | 65 – 180 mm | 4 – 8 | PN6 – PN40 / Class 150 – 300 | -46 to 200°C |
Mechanical Properties
| Property | Value | Unit / Standard |
|---|---|---|
| Tensile Strength | 485 – 700 | MPa (Carbon Steel, Stainless Steel, Alloy Steel) |
| Yield Strength | 170 – 420 | MPa |
| Hardness | 120 – 200 | HB (Brinell) |
| Elongation | ≥ 20 – 30 | % |
| Density | 7.8 – 8.0 | g/cm³ |
| Impact Toughness | ≥ 27 – 65 | J (Charpy, grade-dependent) |
| Modulus of Elasticity (E) | ~200 | GPa |
| Fatigue Strength | 250 – 420 | MPa |
| Corrosion Resistance | Good to Excellent (SS > CS > Alloy Steel) | – |
| Thermal Conductivity | 15 – 50 | W/m·K |
| Coefficient of Thermal Expansion | 11 – 17 ×10⁻⁶ | /°C |
| Yield Ratio (YS/UTS) | 0.40 – 0.65 | – |
| Poisson’s Ratio | 0.27 – 0.30 | – |
| Brinell Hardness Range | 120 – 200 | HB |
| Surface Finish | Machined / Polished / Hygienic Finish | – |
| Valve Type | Butterfly, Plug, NRV, FRV, Micro Valve with Union | – |
| Operating Temperature Range | -46 to 400 | °C (seat/material dependent) |
| Pressure Rating | PN6 – PN64 / Class 150 – 2500 | ASME B16.5 Standards |
Chemical Composition
| Element | SS 304 (%) | SS 304L (%) | SS 316 (%) | SS 316L (%) |
|---|---|---|---|---|
| Carbon (C) | ≤ 0.08 | ≤ 0.03 | ≤ 0.08 | ≤ 0.03 |
| Manganese (Mn) | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 |
| Chromium (Cr) | 18.0 – 20.0 | 18.0 – 20.0 | 16.0 – 18.0 | 16.0 – 18.0 |
| Nickel (Ni) | 8.0 – 10.5 | 8.0 – 12.0 | 10.0 – 14.0 | 10.0 – 14.0 |
| Molybdenum (Mo) | — | — | 2.0 – 3.0 | 2.0 – 3.0 |
| Iron (Fe) | Balance | Balance | Balance | Balance |
Applications of Dairy Valves
Dairy & Milk Processing
Units
Beverage Plants
Pharmaceutical
Food Processing &
Edible Oil Units
Chemical & Enzyme
Production
Dairy R&D and Quality
Testing Labs
Do you have questions?
What makes dairy valves different from industrial valves?
Do you provide actuated valves?
Are these valves suitable for pasteurized fluids?
Can I get valves with different end connections?
