Dairy Tee
What are Dairy Tees?

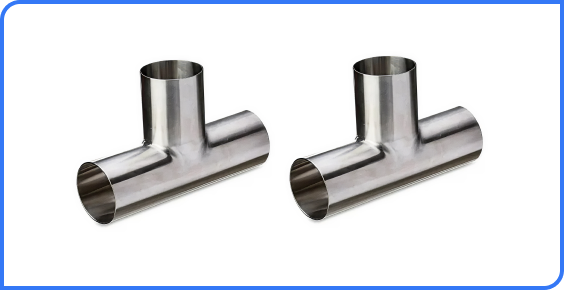

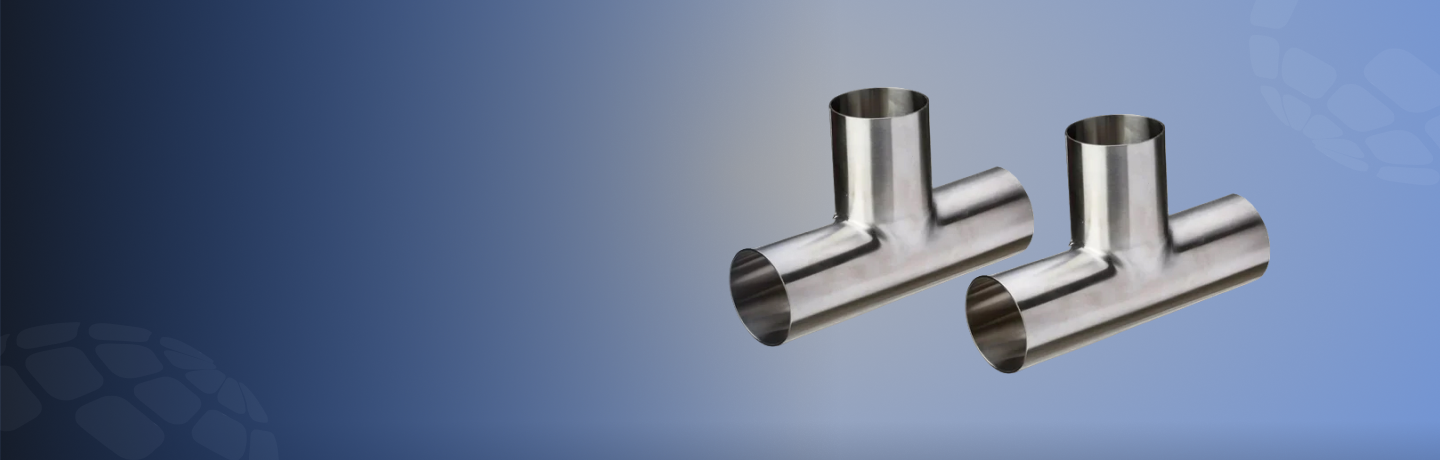

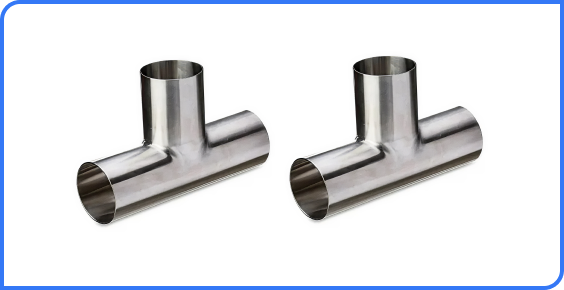

Dairy Tees are hygienic pipe fittings used in sanitary fluid transport systems to split or merge flow at 90-degree angles. Made from stainless steel grades such as SS 304 and SS 316L, these tees are widely used in dairy, beverage, food processing, and pharmaceutical industries where cleanliness and contamination-free flow are essential.
Asiad Steel Industries is a trusted manufacturer, supplier, and exporter of high-quality dairy tees that comply with SMS, DIN, and 3A sanitary standards. Our tees ensure smooth, crevice-free flow transitions with excellent weldability and corrosion resistance.
Key Features
- Hygienic Design – Suitable for sterile applications with polished interior surfaces
- Standard Compliance – Available in SMS, DIN, IDF, and ISO dimensions
- High Corrosion Resistance – Fabricated from SS 304 / SS 316L
- Easy to Weld & Clean – Ideal for clean-in-place (CIP) systems
- Durable Construction – Precision-forged for strength and leak-proof performance
Specifications
Mechanical Properties
Chemical Composition
Equivalent Grades
Weight Chart
Specifications
| Parameter | Value |
|---|---|
| Size Range | ½" to 4" (DN15 – DN100) |
| Grades | SS 304, SS 316, SS 316L |
| Standards | SMS, DIN, IDF, ISO, 3A |
| Surface Finish | Mirror Polish, Electro Polish |
| End Type | Butt Weld / Tri-Clamp / Plain End |
| Property | Value |
|---|---|
| Tensile Strength | 485 – 620 MPa |
| Yield Strength | 170 – 310 MPa |
| Hardness | ≤ 200 HB |
| Elongation | ≥ 30% |
| Element | Composition (%) |
|---|---|
| Chromium | 18.0 – 20.0 |
| Nickel | 8.0 – 10.5 |
| Carbon | ≤ 0.03 – 0.08 |
| Manganese | ≤ 2.00 |
| Silicon | ≤ 1.00 |
| Iron | Balance |
| Standard | Equivalent Grade |
|---|---|
| ASTM | A403 WP304 / WP316L |
| EN | 1.4301 / 1.4404 |
| ISO | X5CrNi18-10 / X2CrNiMo17-12-2 |
| Size (Inch) | Standard | Weight (kg) per Piece |
|---|---|---|
| 1" | DIN | 0.65 |
| 2" | SMS | 1.20 |
| 2½" | IDF | 1.80 |
| 3" | DIN | 2.40 |
Do you have questions?
What is the difference between equal and reducing tees?
Equal tees have all branches of the same size, while reducing tees have one or more outlets smaller than the main pipe.
Can Dairy Tees be used for hot liquids?
Yes, they are suitable for both hot and cold CIP systems with temperature resistance up to 180°C.
Do you offer customized surface finishes?
Yes. Mirror and electro-polished finishes are available based on customer requirements.
Are dairy tees pressure tested before dispatch?
Yes. Each unit undergoes hydro and air pressure testing to ensure leak-proof performance.
