Dairy SMS Union
What are Dairy SMS Union?

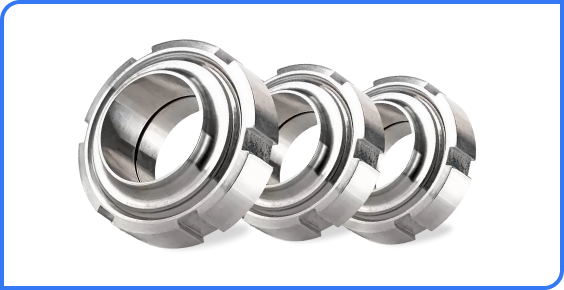

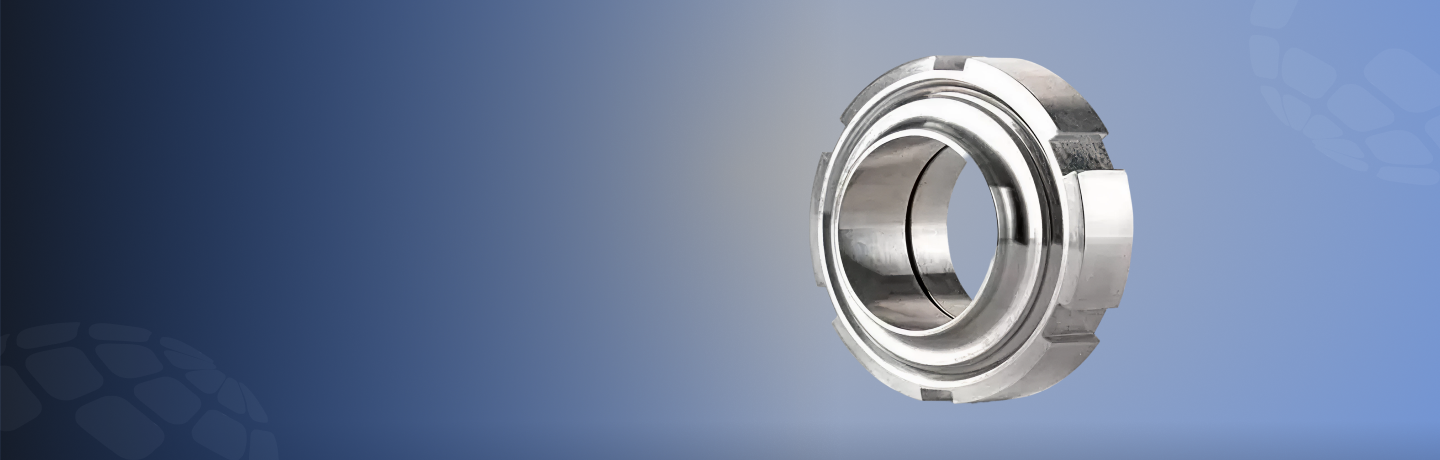

An SMS Union (Swedish Manufacturing Standard Union) is a hygienic pipe connector used in dairy, food, beverage, and pharmaceutical industries. It includes a male part, liner, nut, and gasket to create a leak-proof joint. Designed for easy assembly and superior hygiene, it supports CIP and SIP cleaning systems.
Asiad Steel Industries is a trusted manufacturer, supplier, and exporter of SMS Unions in SS 304 and SS 316L with fine finish, precision threads, and compliance with SMS 1145 standards.
Key Features
Leak-Proof
Jointing
Sanitary
Design
Easy to
Clean
Standards
Compliant
Corrosion
Resistant
Specifications
| Specification Category | Parameter / Feature | Details / Options |
|---|---|---|
| Size Range | Nominal Bore (NB) | ½” to 6” (DN15 – DN150) |
| Metric Sizes | 12 mm to 154 mm (DIN Standard) | |
| Pressure Ratings | Working Pressure | Up to 10 – 40 bar (depending on size & material) |
| Vacuum Rating | Suitable for full vacuum in hygienic applications | |
| Fitting Types | SMS Union Components | Liner, Nut, Male Part, Gasket (EPDM, NBR, Silicone, PTFE) |
| Variants | Weld End, Threaded End, Hose Tail End | |
| Material Options | Stainless Steel | SS 304, SS 304L, SS 316, SS 316L (as per AISI & DIN) |
| Gasket Materials | EPDM, NBR, Silicone, PTFE (FDA approved) | |
| Other Materials | Customized options available for special applications | |
| Standards & Certifications | Hygienic Standards | SMS 1145, DIN, ISO, 3A, IDF, BS |
| Material Standards | ASTM A182 (Forged SS), ASTM A276 (Bars), ASTM A240 (Plates) | |
| Certifications | ISO 9001, FDA Approved, CE, 3A Sanitary, PED 2014/68/EU | |
| Design Features | Surface Finish | Polished ID ≤ Ra 0.8 μm, OD ≤ Ra 1.6 μm (for hygienic use) |
| End Connections | Welded, Threaded, Hose Shank | |
| Gasket Position | Interchangeable gasket placement for leak-free seal | |
| Assembly | Easy to dismantle & clean, suitable for CIP & SIP processes | |
| Coating & Surface Finish | Surface Treatment | Electro-polished, Pickled & Passivated |
| Optional Finishes | High gloss mirror finish for dairy & pharma applications | |
| Testing & Inspection | Pressure Testing | Hydrostatic & Pneumatic (as per SMS standards) |
| Non-Destructive Testing | Dye Penetrant (DPT), PMI (Positive Material Identification) | |
| Hygienic Testing | Surface roughness check, CIP/SIP validation | |
| Destructive Testing | Tensile & Hardness test on request |
Dimensions
| Size (DN) | Tube OD (mm) | Nut Hex (mm) | Nut Thickness (mm) | Male Part Length (mm) | Liner Length (mm) | Gasket Thickness (mm) |
|---|---|---|---|---|---|---|
| DN10 | 12 | 36 | 15 | 19 | 18 | 3.0 |
| DN15 | 18 | 41 | 16 | 19 | 18 | 3.0 |
| DN20 | 22 | 46 | 18 | 20 | 19 | 3.0 |
| DN25 | 28 | 55 | 20 | 22 | 21 | 3.0 |
| DN32 | 34 | 65 | 22 | 24 | 22 | 3.0 |
| DN40 | 40 | 70 | 24 | 26 | 24 | 3.0 |
| DN50 | 52 | 85 | 27 | 28 | 26 | 3.0 |
| DN65 | 70 | 100 | 30 | 30 | 28 | 3.0 |
| DN80 | 85 | 115 | 32 | 32 | 30 | 3.0 |
| DN100 | 104 | 135 | 35 | 35 | 33 | 3.0 |
Mechanical Properties
| Property | Value | Unit / Standard |
|---|---|---|
| Tensile Strength | 500 – 700 | MPa (for SS 304/316 as per ASTM A182/A240) |
| Yield Strength | 190 – 310 | MPa |
| Hardness | ≤ 200 | HB (Brinell) |
| Elongation | ≥ 40 | % (good ductility for hygienic piping) |
| Density | 7.9 – 8.0 | g/cm³ |
| Impact Toughness | ≥ 100 | J (Charpy V-notch, at room temp) |
| Modulus of Elasticity (E) | ~193 – 200 | GPa |
| Fatigue Strength | 240 – 400 | MPa |
| Corrosion Resistance | Excellent (high resistance to food acids, cleaning agents, CIP/SIP) | – |
| Thermal Conductivity | 14 – 16 | W/m·K |
| Coefficient of Thermal Expansion | 16 – 17 ×10⁻⁶ | /°C (between 20–100 °C) |
| Yield Ratio (YS/UTS) | 0.35 – 0.55 | – |
| Poisson’s Ratio | 0.27 – 0.30 | – |
| Brinell Hardness Range | 120 – 200 | HB |
| Surface Finish | ID ≤ Ra 0.8 µm, OD ≤ Ra 1.6 µm (electro-polished / hygienic finish) | SMS / DIN standards |
| Welding Type | Orbital / TIG weld compatible | – |
| Operating Temperature Range | -20 to 200 | °C (depends on gasket material – EPDM, NBR, PTFE, Silicone) |
| Pressure Rating | Up to 10 – 40 bar | As per SMS 1145 Standard |
Chemical Composition
| Element | SS 304 (%) | SS 304L (%) | SS 316 (%) | SS 316L (%) |
|---|---|---|---|---|
| Carbon (C) | ≤ 0.08 | ≤ 0.03 | ≤ 0.08 | ≤ 0.03 |
| Manganese (Mn) | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 |
| Chromium (Cr) | 18.0 – 20.0 | 18.0 – 20.0 | 16.0 – 18.0 | 16.0 – 18.0 |
| Nickel (Ni) | 8.0 – 10.5 | 8.0 – 12.0 | 10.0 – 14.0 | 10.0 – 14.0 |
| Molybdenum (Mo) | — | — | 2.0 – 3.0 | 2.0 – 3.0 |
| Iron (Fe) | Balance | Balance | Balance | Balance |
Applications of Dairy SMS Union
Dairy & Milk Processing
Units
Beverage Plants
Pharmaceutical
Food Processing &
Edible Oil Units
Chemical & Enzyme
Production
Dairy R&D and Quality
Testing Labs
