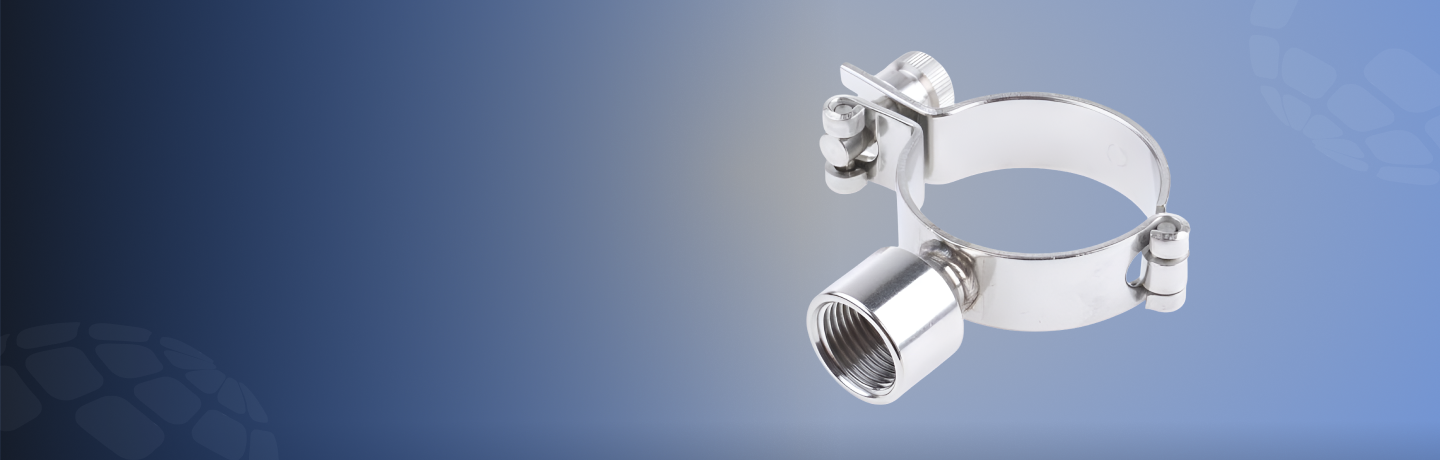

Dairy Pipe Clamps

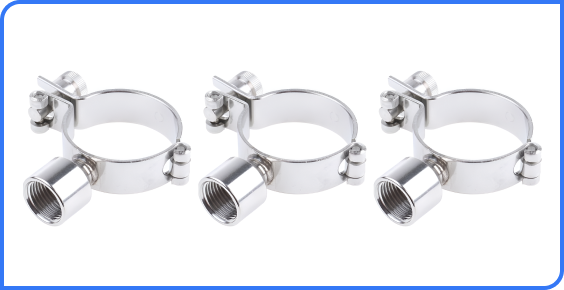

What are Dairy Pipe Clamps?
Dairy Pipe Clamps are sanitary fittings used to securely join two ferrule-ended components in hygienic piping systems. Designed for quick assembly and disassembly, these clamps ensure leak-proof connections in processing environments requiring regular cleaning or maintenance.
Asiad Steel Industries is a trusted manufacturer and exporter of dairy clamps, fabricated from premium-grade stainless steel. Our clamps are available in single-pin, double-pin, and heavy-duty variants to suit different operating pressures and applications.
Key Features
Firm
Clamping
Sanitary
Design
Easy to
Clean
Standards
Compliant
Corrosion
Resistant
Specifications
| Specification Category | Parameter / Feature | Details / Options |
|---|---|---|
| Size Range | Pipe / Tube OD | ½” to 6” (DN15 – DN150), customized sizes available |
| Pressure Ratings | Working Pressure | Up to 10 bar (size & gasket dependent) |
| Vacuum Resistance | Suitable for full vacuum conditions | |
| Clamp Types | Available Type | Dairy Pipe Clamp with Union |
| Material Options | Stainless Steel | SS 304, SS 304L, SS 316, SS 316L (sanitary grades) |
| Other Options | Electro-polished finishes, customized alloys on request | |
| Standards & Certifications | DIN / SMS / ISO | DIN 32676, SMS 1145, ISO 2852, BS 4825 |
| Certifications | ISO 9001, 3A Sanitary Standard, FDA-compliant gaskets, PED 2014/68/EU | |
| Design Features | Union Design | Clamp with Nut & Liner, easy disassembly for cleaning |
| Gasket Compatibility | EPDM, Silicone, PTFE, NBR (FDA-approved food-grade) | |
| Surface Finish | Internal Ra ≤ 0.8 μm (electro-polished hygienic finish) | |
| End Connections | Weld Ends, SMS Ends, DIN Ends, Tri-Clamp Ends | |
| Coating & Surface Finish | Standard Finish | Bright Annealed, Pickled & Passivated |
| Optional Finish | Electro-polished for hygiene & corrosion resistance | |
| Testing & Inspection | Pressure Testing | Hydrostatic & Pneumatic test as per standards |
| Material Testing | PMI (Positive Material Identification), Hardness, Microstructure | |
| Certification | EN 10204 3.1 Material Test Certificate (MTC) |
Dimensions
| Clamp Size (Tube OD / NPS) | Outside Diameter of Clamp (mm) | Clamp Width (mm) | Bolt / Nut Size | Approx. Weight (kg) | Remarks |
|---|---|---|---|---|---|
| ½” (12.7 mm) | 34 | 15 | M6 / Wing Nut | 0.12 | Single Pin |
| ¾” (19.0 mm) | 50.5 | 15 | M6 / Wing Nut | 0.14 | Standard Sanitary |
| 1” (25.4 mm) | 50.5 | 15 | M6 / Wing Nut | 0.15 | Most common size |
| 1½” (38.1 mm) | 50.5 | 18 | M8 / Wing Nut | 0.18 | Single/Double Pin |
| 2” (50.8 mm) | 64 | 20 | M8 / Wing Nut | 0.20 | Heavy Duty available |
| 2½” (63.5 mm) | 77.5 | 20 | M8 / Hex Nut | 0.25 | For larger OD |
| 3” (76.2 mm) | 91 | 22 | M10 / Wing Nut | 0.30 | Double Pin preferred |
| 3½” (89.0 mm) | 106 | 22 | M10 / Hex Nut | 0.36 | Custom order |
| 4” (101.6 mm) | 119 | 25 | M10 / Hex Nut | 0.40 | Heavy Duty Clamp |
| 4½” (114.3 mm) | 130 | 25 | M12 / Hex Nut | 0.45 | Special design |
| 6” (152.4 mm) | 167 | 25 | M12 / Hex Nut | 0.60 | High Pressure Clamp |
| 8” (203.2 mm) | 220 | 25 | M16 / Hex Nut | 0.80 | Industrial Dairy Line |
| 10” (254 mm) | 273 | 25 | M16 / Hex Nut | 1.10 | Large process piping |
| 12” (304.8 mm) | 324 | 25 | M16 / Hex Nut | 1.40 | Extra Heavy Duty |
Mechanical Properties
| Property | Value | Unit / Standard |
|---|---|---|
| Tensile Strength | 500 – 750 | MPa (Stainless Steel 304 / 316) |
| Yield Strength | 200 – 300 | MPa |
| Hardness | 150 – 190 | HB (Brinell) |
| Elongation | ≥ 40 | % |
| Density | 7.9 – 8.0 | g/cm³ |
| Impact Toughness | ≥ 100 | J (Charpy V-notch, Stainless Steel) |
| Modulus of Elasticity (E) | ~193 | GPa |
| Fatigue Strength | 240 – 400 | MPa |
| Corrosion Resistance | Excellent (suitable for hygienic & dairy applications) | – |
| Thermal Conductivity | 16 – 17 | W/m·K |
| Coefficient of Thermal Expansion | 16 – 17 ×10⁻⁶ | /°C |
| Yield Ratio (YS/UTS) | 0.40 – 0.55 | – |
| Poisson’s Ratio | 0.27 – 0.30 | – |
| Brinell Hardness Range | 150 – 190 | HB |
| Surface Finish | Polished (Ra ≤ 0.8 µm for hygienic use) | DIN / ISO Standards |
| Welding Type | TIG / Orbital Welded Joints for Hygienic Piping | – |
| Operating Temperature Range | -20 to 425 | °C (SS 304 / 316) |
| Pressure Rating | 10 – 40 | bar (depending on clamp design & size) |
Chemical Composition
| Element | SS 304 (%) | SS 304L (%) | SS 316 (%) | SS 316L (%) |
|---|---|---|---|---|
| Carbon (C) | ≤ 0.08 | ≤ 0.03 | ≤ 0.08 | ≤ 0.03 |
| Manganese (Mn) | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 |
| Chromium (Cr) | 18.0 – 20.0 | 18.0 – 20.0 | 16.0 – 18.0 | 16.0 – 18.0 |
| Nickel (Ni) | 8.0 – 10.5 | 8.0 – 12.0 | 10.0 – 14.0 | 10.0 – 14.0 |
| Molybdenum (Mo) | — | — | 2.0 – 3.0 | 2.0 – 3.0 |
| Iron (Fe) | Balance | Balance | Balance | Balance |
Applications of Dairy Pipe Clamps
Dairy & Milk Processing
Units
Beverage Plants
Pharmaceutical
Food Processing &
Edible Oil Units
Chemical & Enzyme
Production
Dairy R&D and Quality
Testing Labs
Do you have questions?
Are these clamps reusable for multiple CIP cycles?
What gasket types are compatible with these clamps?
Do you offer high-pressure dairy clamps?
Can clamps be customized with locking mechanisms?
