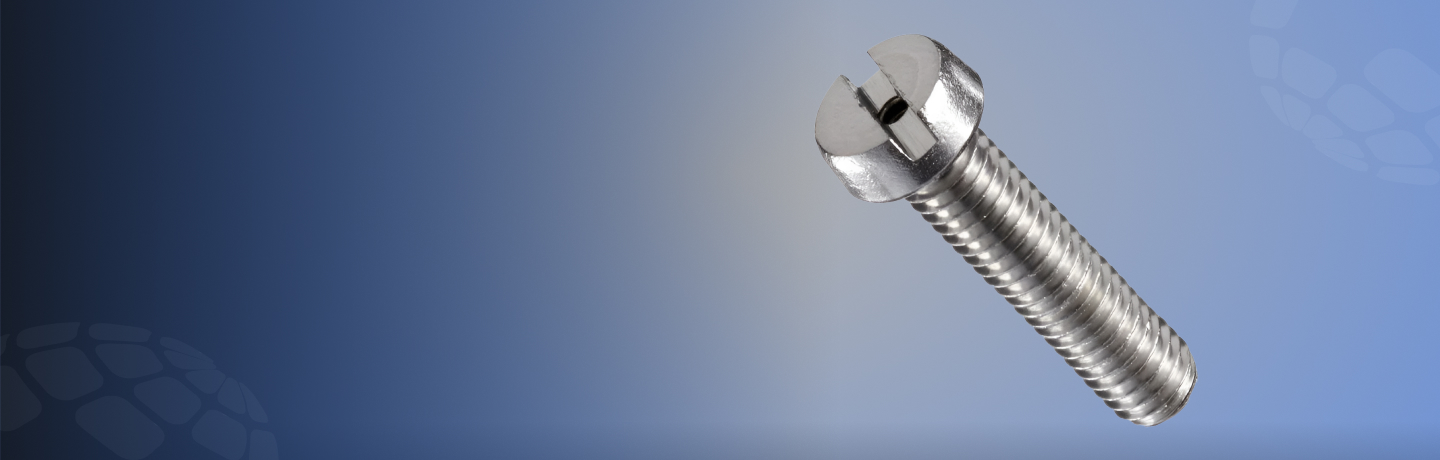

Cheese Head Screw
What are Cheese Head Screws?
Cheese head screws are precision-engineered fasteners featuring a cylindrical head with a flat bearing surface and deep drive slot (slotted or hex socket). Their tall head provides increased torque transmission and a clean finish, making them ideal for machine assemblies and electronic devices.
Asiad Steel Industries is a leading manufacturer, supplier, and exporter of high-quality Cheese Head Screws in various sizes, grades, materials, and finishes, delivering reliable fastening solutions across multiple industries worldwide.
Key Features
High
Grip
Durable
Construction
Easy Installation
& Removal
Wide
Compatibility
Corrosion
Resistant
Specifications
| Specification Category | Parameter / Feature | Details / Options |
|---|---|---|
| Size Range | Nominal Size | M2 to M36 (custom sizes available) |
| Thread Types | Metric & Imperial | Coarse (UNC), Fine (UNF), ISO Metric |
| Head Type | Profile | Cylindrical Head, Tall Profile, Deep Slot |
| Drive Type | Tool Engagement | Slotted, Allen/Hex Socket |
| Product Types | Variants | Full Thread, Partial Thread |
| Material Options | Carbon Steel | Grades 4.6, 5.6, 8.8 |
| Stainless Steel | A2-70, A4-80 | |
| Alloy Steel | Grade 10.9, 12.9 | |
| Other Alloys | Brass, Titanium, Duplex Stainless Steel, Inconel | |
| Standards & Certifications | ASTM | ASTM A193, ASTM F837 |
| ASME / ANSI | ASME B18.6.3, ANSI B18.6.7M | |
| ISO / DIN | ISO 1207, DIN 84, DIN 7985 | |
| Certifications | ISO 9001, CE, RoHS, PED 2014/68/EU | |
| Design Features | Head Dimensions | As per ISO 1207 / DIN 84 |
| Thread Fit | 6g (ISO Metric), Class 2A (UNC/UNF) | |
| Tolerance | As per ISO 4759 / ASME B18.6.3 | |
| Coating & Surface Finish | Anti-Corrosion Coating | Zinc Plated, Hot Dip Galvanized |
| Optional Coatings | Black Oxide, Nickel, PTFE, Dacromet | |
| Surface Finish | Bright, Polished, Passivated | |
| Testing & Inspection | Mechanical Testing | Tensile, Shear, Hardness |
| Non-Destructive Testing | Ultrasonic (UT), Eddy Current | |
| Dimensional Inspection | GO/NO-GO Gauges, Profile Projector |
Dimensions
| Nominal Diameter (d) | Thread Pitch (mm) | Head Diameter (dk, mm) | Head Height (k, mm) | Slot Width (n, mm) | Slot Depth (t, mm) | Standard Thread Length (b, mm) |
|---|---|---|---|---|---|---|
| M1.6 | 0.35 | 3.0 | 1.1 | 0.4 | 0.6 | 12 |
| M2 | 0.40 | 3.8 | 1.3 | 0.5 | 0.7 | 14 |
| M2.5 | 0.45 | 4.5 | 1.6 | 0.6 | 0.9 | 16 |
| M3 | 0.50 | 5.5 | 2.0 | 0.8 | 1.1 | 18 |
| M4 | 0.70 | 7.0 | 2.6 | 1.0 | 1.3 | 20–22 |
| M5 | 0.80 | 8.5 | 3.3 | 1.2 | 1.6 | 22–25 |
| M6 | 1.00 | 10.0 | 3.9 | 1.6 | 2.0 | 24–28 |
| M8 | 1.25 | 13.0 | 5.0 | 2.0 | 2.5 | 28–32 |
| M10 | 1.50 | 16.0 | 6.0 | 2.5 | 3.0 | 32–36 |
| M12 | 1.75 | 18.0 | 7.5 | 3.0 | 3.5 | 36–40 |
| M16 | 2.00 | 24.0 | 10.0 | 4.0 | 4.5 | 44–48 |
| M20 | 2.50 | 30.0 | 12.5 | 5.0 | 5.5 | 52–56 |
Mechanical Properties
| Property | Value | Unit / Standard |
|---|---|---|
| Tensile Strength | 400 – 1,200 | MPa |
| Yield Strength | 240 – 1,100 | MPa |
| Hardness | 90 – 390 | HV |
| Elongation | ≥ 8 – 18 | % |
| Density | 7.8 | g/cm³ |
| Impact Toughness | ≥ 20 – 50 | J |
| Modulus of Elasticity (E) | ~200 | GPa |
| Fatigue Strength | 200 – 450 | MPa |
| Corrosion Resistance | Good to Excellent | – |
| Thermal Conductivity | 15 – 50 | W/m·K |
| Coefficient of Thermal Expansion | 11 – 17 ×10⁻⁶ | /°C |
| Yield Ratio (YS/UTS) | 0.4 – 0.9 | – |
| Poisson’s Ratio | 0.27 – 0.30 | – |
| Brinell Hardness Range | 90 – 390 | HB |
| Surface Finish | Bright, Polished, Passivated | – |
| Head Style | Cheese Head (Cylindrical) | – |
| Drive Type | Slotted / Allen Hex | – |
| Operating Temperature Range | -40 to 300 | °C |
| Proof Load | 310 – 970 | MPa |
Chemical Composition
| Element | SS 304 (%) | SS 304L (%) | SS 316 (%) | SS 316L (%) |
|---|---|---|---|---|
| Chromium (Cr) | 18.0 – 20.0 | 18.0 – 20.0 | 16.0 – 18.0 | 16.0 – 18.0 |
| Nickel (Ni) | 8.0 – 10.5 | 8.0 – 12.0 | 10.0 – 14.0 | 10.0 – 14.0 |
| Carbon (C) | ≤ 0.08 | ≤ 0.03 | ≤ 0.08 | ≤ 0.03 |
| Manganese (Mn) | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 |
| Iron (Fe) | Balance | Balance | Balance | Balance |
| Molybdenum (Mo) | — | — | 2.0 – 3.0 | 2.0 – 3.0 |
Applications of Cheese Head Screws
Construction &
Infrastructure
Automotive & Heavy
Equipment
Manufacturing &
Fabrication
Medical & Laboratory
Equipment
Electrical &
Electronics Assembly
Oil, Gas & Petrochemical
Installations
