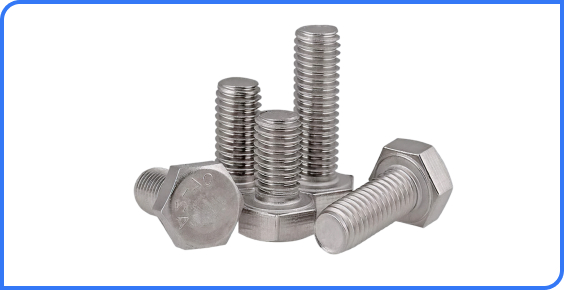

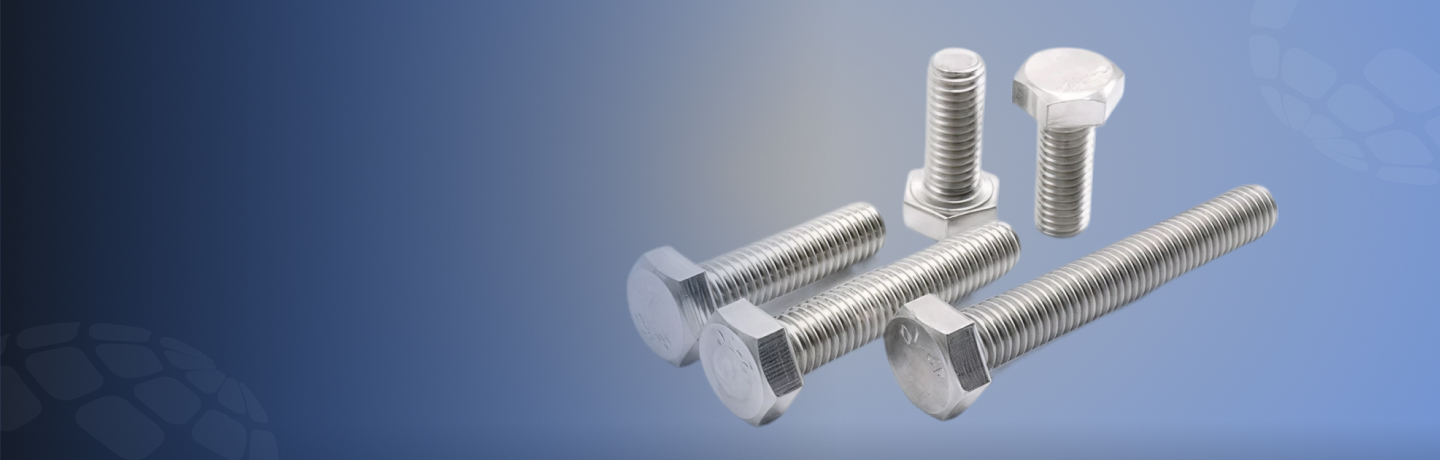

Bolts
What are Bolts?
Bolts are externally threaded fasteners used with nuts (or threaded holes) to create strong, tension-bearing joints. They are used in nearly every mechanical, civil, and structural application where durable, removable connections are needed.
Asiad Steel Industries is a leading manufacturer, supplier, and exporter of high-quality bolts in various types, sizes, grades, and finishes, delivering reliable fastening solutions across multiple industries worldwide.
Key Features
Leak-Proof
Jointing
Durable
Construction
Easy Installation
& Removal
Wide
Compatibility
Corrosion
Resistant
Specifications
| Specification Category | Parameter / Feature | Details / Options |
|---|---|---|
| Size Range | Diameter | M3 to M100 (metric) / 1/8” to 4” (imperial) |
| Length | 6 mm to 1000 mm (custom sizes available) | |
| Thread Types | Metric Threads | Coarse (M), Fine (MF), Extra Fine (MEF) |
| Unified Threads | UNC, UNF, UNEF | |
| Other Options | BSW, BSF, Acme, ISO, Left-Hand Threads | |
| Material Options | Stainless Steel | SS 304, SS 304L, SS 316, SS 316L, SS 321, SS 410, SS 904L |
| Carbon Steel | ASTM A307, A325, A490 | |
| Alloy Steel | ASTM A193 Grade B7, B16, L7 | |
| Duplex & Super Duplex | Duplex 2205, Super Duplex 2507 | |
| Standards & Certifications | International Standards | ISO 898-1, ISO 4014/4017, DIN 931/933, ASTM A193, ASTM A320, BS 3692, JIS B1180 |
| Certifications | ISO 9001, CE Marking, PED 2014/68/EU, NACE MR0175, IBR Approved | |
| Bolt Types | Hex Bolt | Standard hexagonal head bolts for structural & general applications |
| U-Bolt | U-shaped bolts for piping, support systems & anchoring | |
| Strength Grades | Carbon & Alloy Steel | Grade 4.6, 8.8, 10.9, 12.9 |
| Stainless Steel | A2-50, A2-70, A4-70, A4-80 | |
| Coating & Surface Finish | Standard Finish | Self-Colored, Polished |
| Protective Coatings | Zinc Plated, Hot-Dip Galvanized, Black Oxide | |
| Specialized Coatings | PTFE, Xylan, Geomet, Epoxy | |
| Design Features | Shank Types | Full Threaded, Partially Threaded |
| Drive Types | Hex, Allen/Socket, Torx, Slotted, Phillips | |
| Tolerance | As per ISO, DIN, and ANSI standards | |
| Testing & Inspection | Mechanical Testing | Tensile, Hardness, Proof Load |
| Non-Destructive Testing | Ultrasonic, Magnetic Particle (MPI), Dye Penetrant (DPT) | |
| Corrosion Testing | Salt Spray Test, Humidity Test |
Dimensional Standards ANSI B18.21
| Nominal Size of Basic Bolt Dia. | Body Dia. (E) | Width Across Flats (F) | Width Across Corners (G) | Height (H) | Radius of Fillet (R) | Thread Length (LT) | Transition Thread Length (Y) | Runout of Bearing Surface FIR |
|---|---|---|---|---|---|---|---|---|
| Max | Min | Basic | Max | Min | Max | Min | Basic | |
| ½ | 0.5000 | 0.515 | 0.482 | 7/8 | 0.875 | 0.850 | 1.010 | 0.969 |
| ⅝ | 0.6250 | 0.642 | 0.605 | 1 1/16 | 1.062 | 1.031 | 1.227 | 1.175 |
| ¾ | 0.7500 | 0.768 | 0.729 | 1 1/4 | 1.250 | 1.212 | 1.443 | 1.383 |
| ⅞ | 0.8750 | 0.895 | 0.852 | 1 7/16 | 1.438 | 1.394 | 1.660 | 1.589 |
| 1 | 1.0000 | 1.022 | 0.976 | 1 5/8 | 1.625 | 1.575 | 1.876 | 1.796 |
| 1 1/8 | 1.1250 | 1.149 | 1.098 | 1 13/16 | 1.812 | 1.756 | 2.093 | 2.002 |
| 1 1/4 | 1.2500 | 1.277 | 1.223 | 2 | 2.000 | 1.938 | 2.309 | 2.209 |
| 1 3/8 | 1.3750 | 1.404 | 1.345 | 2 3/16 | 2.188 | 2.119 | 2.526 | 2.416 |
| 1 1/2 | 1.5000 | 1.531 | 1.470 | 2 3/8 | 2.375 | 2.300 | 2.742 | 2.622 |
Mechanical Properties
| Property | Value | Unit / Standard |
|---|---|---|
| Tensile Strength | 400 – 1200 | MPa (depends on grade: MS, SS 304/316, Alloy Steel, High-Tensile) |
| Yield Strength | 240 – 900 | MPa |
| Hardness | 120 – 340 | HB (Brinell) |
| Elongation | ≥ 12 – 25 | % |
| Density | 7.8 – 8.0 | g/cm³ |
| Impact Toughness | ≥ 27 – 80 | J (Charpy, varies with grade) |
| Modulus of Elasticity (E) | ~200 | GPa |
| Fatigue Strength | 150 – 450 | MPa |
| Corrosion Resistance | Moderate to Excellent | (MS, coated, or stainless steel grades) |
| Thermal Conductivity | 15 – 55 | W/m·K |
| Coefficient of Thermal Expansion | 11 – 17 ×10⁻⁶ | /°C |
| Yield Ratio (YS/UTS) | 0.55 – 0.75 | – |
| Poisson’s Ratio | 0.27 – 0.30 | – |
| Brinell Hardness Range | 120 – 340 | HB |
| Surface Finish | Zinc plated, Hot-dip galvanized, Black oxide, Polished SS | – |
| Operating Temperature Range | -50 to 450 | °C (material dependent) |
| Standards Covered | DIN, ISO, ASTM, ASME, BS | – |
Chemical Composition
| Element | SS 304 (%) | SS 304L (%) | SS 316 (%) | SS 316L (%) |
|---|---|---|---|---|
| Chromium (Cr) | 18.0 – 20.0 | 18.0 – 20.0 | 16.0 – 18.0 | 16.0 – 18.0 |
| Nickel (Ni) | 8.0 – 10.5 | 8.0 – 12.0 | 10.0 – 14.0 | 10.0 – 14.0 |
| Carbon (C) | ≤ 0.08 | ≤ 0.03 | ≤ 0.08 | ≤ 0.03 |
| Manganese (Mn) | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 |
| Iron (Fe) | Balance | Balance | Balance | Balance |
| Molybdenum (Mo) | — | — | 2.0 – 3.0 | 2.0 – 3.0 |
Equivalent Grades
| Standard | Equivalent Grade |
|---|---|
| ASTM | A307 / A325 / A490 |
| DIN | 933 / 931 / 912 |
| ISO | 4014 / 4017 / 4762 |
| JIS | B1180 |
| BS | 3692 / 4190 |
Applications of Bolts
Construction &
Infrastructure
Automotive & Heavy
Equipment
Manufacturing &
Fabrication
Medical & Laboratory
Equipment
Electrical &
Electronics Assembly
Oil, Gas & Petrochemical
Installations
