Blind Flanges

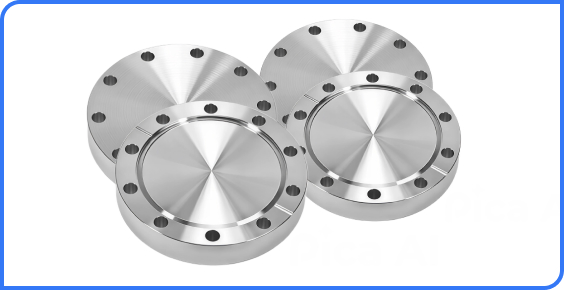

What are Blind Flanges?

Blind flanges are solid disk-shaped flanges used to close the ends of piping systems, valves, or pressure vessel openings. Without a central bore, they provide a tight seal and allow for easy inspection, maintenance, or modification of systems. Ideal for high-pressure and high-temperature environments, blind flanges are widely used across industries that demand full isolation of fluid flow.

Asiad Steel Industries is a trusted manufacturer and exporter of precision-engineered blind flanges in carbon steel, stainless steel, and alloy grades.

Key Features

Leak-Proof
Jointing

Durable
Construction

High Pressure
Resistance

Wide
Compatibility

Corrosion
Resistant

Specifications

Specification Category Parameter / Feature Details / Options
Size Range Nominal Pipe Size (NPS) ½” to 48” (DN15 – DN1200)
Pressure Ratings ANSI / ASME Class Class 150, 300, 600, 900, 1500, 2500
PN Ratings PN6, PN10, PN16, PN25, PN40, PN64
Fitting Types Blind Flanges Weld Neck Blind, Slip-On Blind, Threaded Blind, Lap Joint Blind, Socket Weld Blind
Material Options Stainless Steel SS 304, SS 304L, SS 316, SS 316L, SS 321
Carbon Steel ASTM A105, ASTM A350 LF2
Alloy / Superalloy Alloy Steel (A182 F1, F5, F9, F11, F22, F91), Inconel 600/625/825
Duplex & Super Duplex Duplex 2205, Super Duplex 2507
Other Materials Monel 400/K500, Nickel 200/201, Titanium (Grade 2, Grade 5)
Standards & Certifications ASME / ANSI ASME B16.5, ASME B16.47 (Series A & B)
ASTM ASTM A105, ASTM A182
European Standards DIN 2527, EN 1092-1
Certifications ISO 9001, PED 2014/68/EU, NACE MR0175, IBR Approved
Design Features Wall Thickness As per ASME B16.5, customized options
Face Type Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ)
Tolerance As per ASME/ANSI standards
Coating & Surface Finish Anti-Corrosion Coating Rust Preventive Oil, Black Oxide, Hot-Dip Galvanized
Optional Coatings Epoxy, PTFE, Polyurethane
Surface Finish Machined, Pickled, Polished, Passivated
Testing & Inspection Pressure Testing Hydrostatic, Pneumatic
Non-Destructive Testing Radiography (RT), Ultrasonic (UT), Magnetic Particle (MPI), Dye Penetrant (DPT)
Destructive Testing Tensile, Hardness, Impact

Dimensions

NPS (in) Class OD (mm) Thickness T (mm) BCD (mm) No. of Bolts Bolt Size RF Dia (mm)
½ 150 92 16 62 4 ½”-13 UNC 70
½ 300 102 19 68 4 ½”-13 UNC 76
½ 600 114 22 79 4 ½”-13 UNC 89
½ 900 127 25 92 4 ½”-13 UNC 102
½ 1500 140 32 105 4 ½”-13 UNC 114
½ 2500 152 38 117 4 ½”-13 UNC 127
¾ 150 102 16 70 4 ½”-13 UNC 79
¾ 300 114 19 76 4 ½”-13 UNC 89
¾ 600 127 22 89 4 ½”-13 UNC 102
¾ 900 140 25 102 4 ½”-13 UNC 114
¾ 1500 152 32 114 4 ½”-13 UNC 127
¾ 2500 165 38 127 4 ½”-13 UNC 140
1 150 114 19 79 4 ½”-13 UNC 89
1 300 127 22 89 4 ½”-13 UNC 102
1 600 140 25 102 4 ½”-13 UNC 114
1 900 152 28 114 4 ½”-13 UNC 127
1 1500 165 32 127 4 ½”-13 UNC 140
1 2500 178 38 140 4 ½”-13 UNC 152
150 152 22 102 4 ⅝”-11 UNC 108
300 165 25 114 4 ⅝”-11 UNC 127
600 178 28 127 4 ⅝”-11 UNC 146
900 190 32 133 4 ⅝”-11 UNC 165
1500 203 38 146 4 ⅝”-11 UNC 178
2500 216 41 159 4 ⅝”-11 UNC 190
2 150 165 22 114 4 ⅝”-11 UNC 127
2 300 178 25 127 4 ⅝”-11 UNC 146
2 600 190 28 133 4 ⅝”-11 UNC 165
2 900 203 32 146 4 ⅝”-11 UNC 178
2 1500 216 38 159 4 ⅝”-11 UNC 190
2 2500 229 41 171 4 ⅝”-11 UNC 203
150 190 25 133 4 ⅝”-11 UNC 146
300 203 28 146 4 ⅝”-11 UNC 165
600 216 32 159 4 ⅝”-11 UNC 178
900 229 38 171 4 ⅝”-11 UNC 190
1500 241 41 184 4 ⅝”-11 UNC 203
2500 254 44 196 4 ⅝”-11 UNC 216
3 150 216 25 156 4 ⅝”-11 UNC 165
3 300 229 28 159 4 ⅝”-11 UNC 178
3 600 241 32 171 4 ⅝”-11 UNC 190
3 900 254 38 184 4 ⅝”-11 UNC 203
3 1500 267 41 196 4 ⅝”-11 UNC 216
3 2500 279 44 209 4 ⅝”-11 UNC 229

Mechanical Properties

Property Value Unit / Standard
Tensile Strength 485 – 750 MPa (Carbon Steel, Stainless Steel, Alloy Steel)
Yield Strength 170 – 450 MPa
Hardness 120 – 200 HB (Brinell)
Elongation ≥ 20 – 30 %
Density 7.8 – 8.0 g/cm³
Impact Toughness ≥ 27 – 70 J (Charpy, grade-dependent)
Modulus of Elasticity (E) ~200 GPa
Fatigue Strength 250 – 450 MPa
Corrosion Resistance Good to Excellent SS > CS > Alloy Steel
Thermal Conductivity 15 – 50 W/m·K
Coefficient of Thermal Expansion 11 – 17 ×10⁻⁶ /°C
Yield Ratio (YS/UTS) 0.40 – 0.65
Poisson’s Ratio 0.27 – 0.30
Brinell Hardness Range 120 – 200 HB
Surface Finish Serrated / Stock / Smooth finish ASME B16.5
Welding Type Butt-welded or Slip-on Depending on piping system
Operating Temperature Range -46 to 600 °C (material-dependent)
Pressure Rating Class 150, 300, 600, 900, 1500, 2500 ASME B16.5 Standards

Chemical Composition

Element Composition (%)
Carbon (C) 0.08 – 0.25
Manganese 0.60 – 1.65
Silicon 0.15 – 0.80
Chromium 16.0 – 18.0 (SS)
Nickel 8.0 – 10.5 (SS)
Molybdenum 2.0 – 3.0 (316)
Iron (Fe) Balance

Applications of Blind Flanges

Construction &
Infrastructure

Power Generation &
Energy Sector

Manufacturing &
Fabrication

Medical & Laboratory
Equipment

Electrical &
Electronics Assembly

Oil, Gas & Petrochemical
Installations
