Anchor Fasteners
What are Anchors?

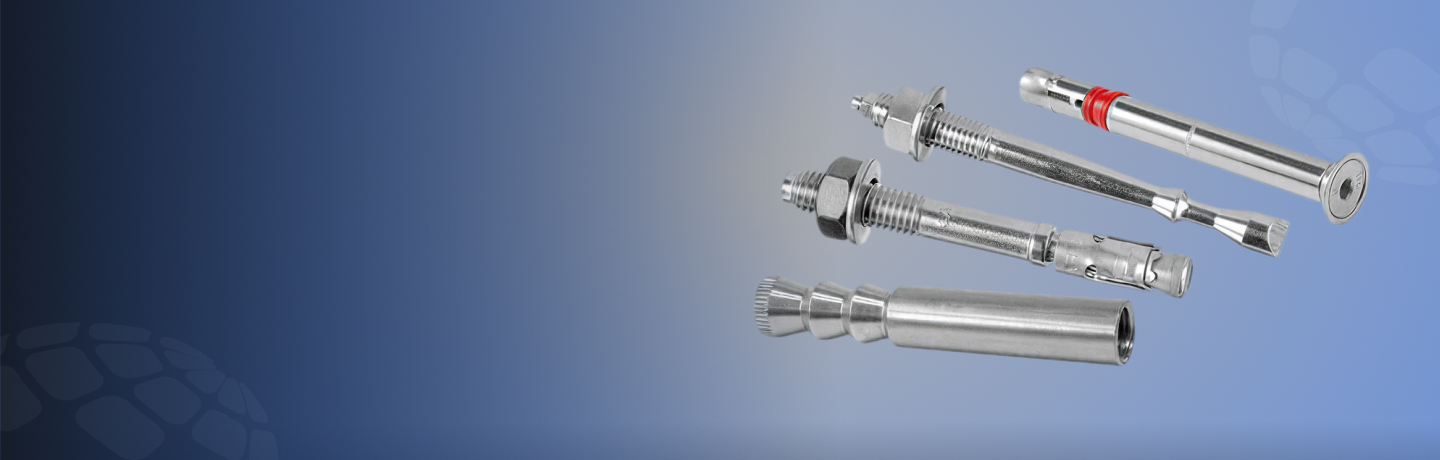

Anchors are fastenersused to connect structural and non-structural elements to concrete or masonry. Anchors work by embedding into a base material and expanding, bonding, or threading to achieve holding strength. Used extensively in infrastructure, heavy equipment, and building installations, anchors come in different types like wedge, sleeve, chemical, and drop-in.
Asiad Steel Industries serves as a leading manufacturer, supplier, and exporter of durable anchor fasteners, engineered for secure fixation in concrete and masonry for construction and industrial projects.
Key Features
Leak-Proof
Jointing
Durable
Construction
Easy Installation
& Removal
Wide
Compatibility
Corrosion
Resistant
Specifications
| Specification Category | Parameter / Feature | Details / Options |
|---|---|---|
| Size Range | Diameter (Nominal) | M6 to M30 (other sizes available on request) |
| Length Range | 40 mm to 300 mm (depending on diameter and application) | |

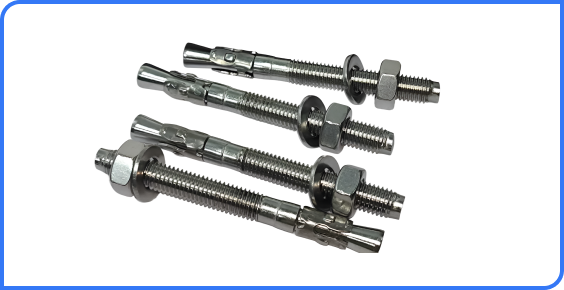

| Anchor Types | Wedge Anchor Fasteners | Heavy-duty expansion type anchors suitable for concrete and solid masonry. Provide high tensile and shear strength. |
| Pin Type Anchor Fasteners | Medium-duty hammer-driven expansion anchors for concrete, brick, and masonry. Quick installation without torque requirement. | |
| Material Options | Stainless Steel | SS 304, SS 316 |
| Carbon Steel | High-strength carbon steel with zinc plating or hot-dip galvanized finish | |
| Other Options | Duplex Stainless Steel, Alloy Steel (for high-performance environments) | |
| Standards & Certifications | International Standards | DIN, ISO, ASTM, BS, IS |
| Certifications | ISO 9001, CE, PED 2014/68/EU, IBR Approved (as applicable) | |
| Design Features | Expansion Mechanism | Wedge type (expands against base material); Pin type (hammer-driven expansion) |
| Head Types | Hex Head, Flat Head, Countersunk, Round Head (for pin type) | |
| Threads | Metric (M6–M30), UNC/UNF available on request | |
| Washer & Nut | Supplied as per ISO/DIN standards for wedge anchors | |
| Tolerance | As per DIN / ISO fastening standards | |
| Coating & Surface Finish | Anti-Corrosion Coating | Zinc Plated, Hot-Dip Galvanized |
| Optional Coatings | Mechanical Galvanizing, Epoxy Coating, PTFE | |
| Surface Finish | Bright, Polished, Passivated (for stainless steel) | |
| Testing & Inspection | Mechanical Testing | Tensile Load, Shear Load, Hardness |
| Non-Destructive Testing | Visual & Dimensional Inspection | |
| Corrosion Resistance Tests | Salt Spray Test, Coating Thickness Test |
Dimensions of Wedge Anchor Fasteners
| Anchor Diameter (d) | Drill Hole Diameter (mm) | Embedment Depth (hef, mm) | Anchor Length (L, mm) | Thread Length (lt, mm) | Head/Washer Diameter (mm) | Nut Across Flats (mm) | Tensile Load Capacity (kN)* | Shear Load Capacity (kN)* |
|---|---|---|---|---|---|---|---|---|
| M6 | 6 | 40 – 50 | 40 – 80 | 18 – 25 | 12 – 14 | 10 | 5 – 7 | 4 – 6 |
| M8 | 8 | 50 – 65 | 55 – 100 | 22 – 30 | 16 – 18 | 13 | 8 – 12 | 7 – 9 |
| M10 | 10 | 60 – 80 | 70 – 120 | 28 – 40 | 20 – 22 | 17 | 12 – 18 | 10 – 14 |
| M12 | 12 | 70 – 90 | 80 – 140 | 35 – 45 | 24 – 26 | 19 | 18 – 25 | 14 – 18 |
| M16 | 16 | 80 – 110 | 100 – 160 | 40 – 55 | 30 – 32 | 24 | 28 – 40 | 22 – 28 |
| M20 | 20 | 100 – 125 | 120 – 200 | 45 – 70 | 36 – 38 | 30 | 45 – 60 | 35 – 42 |
| M24 | 24 | 120 – 140 | 140 – 220 | 55 – 80 | 44 – 46 | 36 | 65 – 80 | 50 – 60 |
| M30 | 30 | 150 – 170 | 180 – 280 | 70 – 100 | 56 – 60 | 46 | 90 – 120 | 70 – 85 |
Dimensions for Pin Type Anchor Fasteners
| Anchor Diameter (d) | Drill Hole Diameter (mm) | Embedment Depth (hef, mm) | Anchor Length (L, mm) | Pin/Head Diameter (mm) | Washer Diameter (mm) | Nut Across Flats (mm) | Thread Length (lt, mm) | Tensile Load Capacity (kN)* | Shear Load Capacity (kN)* |
|---|---|---|---|---|---|---|---|---|---|
| M6 | 6 | 35 – 45 | 40 – 80 | 8 – 10 | 12 – 14 | 10 | 15 – 20 | 4 – 6 | 3 – 5 |
| M8 | 8 | 40 – 55 | 50 – 100 | 10 – 12 | 16 – 18 | 13 | 20 – 28 | 7 – 10 | 6 – 8 |
| M10 | 10 | 50 – 70 | 60 – 120 | 13 – 15 | 20 – 22 | 17 | 25 – 35 | 10 – 14 | 8 – 12 |
| M12 | 12 | 60 – 80 | 70 – 140 | 16 – 18 | 24 – 26 | 19 | 30 – 40 | 15 – 20 | 12 – 16 |
| M16 | 16 | 75 – 100 | 90 – 160 | 20 – 22 | 30 – 32 | 24 | 35 – 50 | 25 – 35 | 18 – 24 |
| M20 | 20 | 100 – 125 | 110 – 200 | 25 – 28 | 36 – 38 | 30 | 45 – 65 | 40 – 55 | 30 – 38 |
| M24 | 24 | 120 – 140 | 140 – 220 | 30 – 32 | 44 – 46 | 36 | 55 – 75 | 60 – 75 | 45 – 55 |
| M30 | 30 | 150 – 170 | 180 – 280 | 38 – 40 | 56 – 60 | 46 | 70 – 100 | 85 – 110 | 65 – 80 |
Mechanical Properties
| Property | Value | Unit / Standard |
|---|---|---|
| Tensile Strength | 400 – 1200 | MPa (depends on type: MS, SS 304/316, Alloy Steel, High-Tensile) |
| Yield Strength | 240 – 900 | MPa |
| Hardness | 120 – 340 | HB (Brinell) |
| Elongation | ≥ 12 – 25 | % |
| Density | 7.8 – 8.0 | g/cm³ |
| Impact Toughness | ≥ 27 – 80 | J (Charpy, varies with grade) |
| Modulus of Elasticity (E) | ~200 | GPa |
| Fatigue Strength | 150 – 450 | MPa |
| Corrosion Resistance | Moderate to Excellent | (zinc-plated, galvanized, SS & alloy grades) |
| Thermal Conductivity | 15 – 55 | W/m·K |
| Coefficient of Thermal Expansion | 11 – 17 ×10⁻⁶ | /°C |
| Yield Ratio (YS/UTS) | 0.55 – 0.75 | – |
| Poisson’s Ratio | 0.27 – 0.30 | – |
| Brinell Hardness Range | 120 – 340 | HB |
| Surface Finish | Zinc plated, Hot-dip galvanized, Black oxide, SS polished | – |
| Operating Temperature Range | -50 to 450 | – |
Chemical Composition
| Element | SS 304 (%) | SS 304L (%) | SS 316 (%) | SS 316L (%) |
|---|---|---|---|---|
| Chromium (Cr) | 18.0 – 20.0 | 18.0 – 20.0 | 16.0 – 18.0 | 16.0 – 18.0 |
| Nickel (Ni) | 8.0 – 10.5 | 8.0 – 12.0 | 10.0 – 14.0 | 10.0 – 14.0 |
| Carbon (C) | ≤ 0.08 | ≤ 0.03 | ≤ 0.08 | ≤ 0.03 |
| Manganese (Mn) | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 |
| Iron (Fe) | Balance | Balance | Balance | Balance |
| Molybdenum (Mo) | — | — | 2.0 – 3.0 | 2.0 – 3.0 |
Applications of Anchor Fasteners
Construction &
Infrastructure
Automotive & Heavy
Equipment
Manufacturing &
Fabrication
Medical & Laboratory
Equipment
Electrical &
Electronics Assembly
Oil, Gas & Petrochemical
Installations
