Aluminium Sheet
What is Aluminium Sheet?

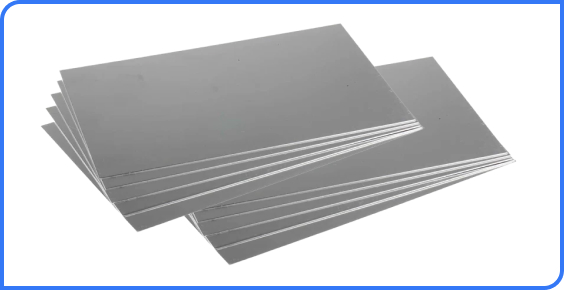

Aluminium Sheets are flat-rolled aluminium products with uniform thickness and width, used widely in structural, decorative, and fabrication applications. Lightweight yet strong, aluminium sheets offer excellent workability, surface finish, and corrosion resistance. These sheets are available in multiple grades and tempers, including 1050, 5052, and 6061.
Asiad Steel Industries is a leading supplier of aluminium sheets in mill finish, brushed, anodized, and coated variants, serving clients across construction, transport, and general engineering sectors.
Key Features
Thermal
Stability
Durable
Construction
Precision
Finish
Wide
Compatibility
Corrosion
Resistant
Specifications
| Specification Category | Parameter / Feature | Details / Options |
|---|---|---|
| Size Range | Thickness | 0.2 mm to 200 mm (custom thicknesses available) |
| Width | 500 mm to 2500 mm (standard & customized) | |
| Length | 1000 mm to 6000 mm (cut-to-size available) | |
| Grades / Alloys | Aluminium Grades | 1100, 1200, 2024, 3003, 5052, 5083, 6061, 6082, 7075, etc. |
| Tempers | O, H12, H14, H22, H32, T4, T6, T651 | |
| Product Types | Aluminium Sheets | Cold Rolled, Hot Rolled, Perforated, Anodized |
| Aluminium Plates | Plain, Chequered / Tread Plate, Marine Grade | |
| Surface Finishes | Mill Finish, Stucco Embossed, Brushed, Mirror, Anodized, Powder-Coated | |
| Standards & Certifications | ASTM | ASTM B209, ASTM B221, ASTM B928 |
| ASME / ANSI | ASME SB209, SB221 | |
| European Standards | EN 485, EN 573, EN 1386 | |
| Certifications | ISO 9001, DNV, Lloyd’s Register, ABS, PED 2014/68/EU | |
| Design Features | Thickness Tolerance | As per ASTM / EN standards (±0.02 mm to ±0.1 mm depending on grade & size) |
| Flatness | As per ASTM B209 / EN 485 | |
| Edge Type | Mill Edge, Slit Edge | |
| Coating & Surface Finish | Anti-Corrosion Coating |
Mechanical Properties
| Property | Value | Unit / Standard |
|---|---|---|
| Tensile Strength | 70 – 570 | MPa (grade & temper dependent) |
| Yield Strength | 35 – 500 | MPa |
| Hardness | 20 – 150 | HB (Brinell, varies by alloy) |
| Elongation | ≥ 8 – 25 | % (alloy & temper dependent) |
| Density | 2.70 | g/cm³ |
| Impact Toughness | ≥ 15 – 40 | J (Charpy, alloy-dependent) |
| Modulus of Elasticity (E) | ~68 – 72 | GPa |
| Fatigue Strength | 90 – 160 | MPa (for common alloys like 5052, 6061, 7075) |
| Corrosion Resistance | Excellent (varies by alloy, marine grade best) | – |
| Thermal Conductivity | 120 – 235 | W/m·K (alloy-dependent, higher than steels) |
| Coefficient of Thermal Expansion | 22 – 24 ×10⁻⁶ | /°C |
| Yield Ratio (YS/UTS) | 0.45 – 0.85 | – |
| Poisson’s Ratio | 0.33 – 0.35 | – |
| Brinell Hardness Range | 20 – 150 | HB |
| Surface Finish | Mill Finish / Anodized / Polished / Coated | – |
| Formability | Excellent (especially in soft tempers like O, H14) | – |
| Operating Temperature Range | -200 to 300 | °C (continuous service, alloy-dependent) |
| Standards | ASTM B209, EN 485, JIS H4000 | – |
Chemical Composition
| Element | Aluminium 1100 | Aluminium 5052 | Aluminium 6061 | Aluminium 6082 |
|---|---|---|---|---|
| Aluminium (Al) | 99.0 min | Balance | Balance | Balance |
| Magnesium (Mg) | — | 2.2 – 2.8 | 0.8 – 1.2 | 0.6 – 1.2 |
| Silicon (Si) | ≤ 0.45 | ≤ 0.25 | 0.4 – 0.8 | 0.7 – 1.3 |
| Iron (Fe) | ≤ 0.35 | ≤ 0.40 | ≤ 0.7 | ≤ 0.5 |
| Copper (Cu) | ≤ 0.05 | ≤ 0.10 | 0.15 – 0.40 | ≤ 0.10 |
| Manganese (Mn) | ≤ 0.05 | 0.10 – 0.35 | ≤ 0.15 | 0.4 – 1.0 |
| Chromium (Cr) | — | 0.15 – 0.35 | 0.04 – 0.35 | 0.25 max |
| Zinc (Zn) | ≤ 0.10 | ≤ 0.10 | ≤ 0.25 | ≤ 0.20 |
| Titanium (Ti) | — | — | ≤ 0.15 | ≤ 0.10 |
| Others (Total) | ≤ 0.15 | ≤ 0.15 | ≤ 0.15 | ≤ 0.15 |
Applications of Aluminium Sheets
Construction &
Infrastructure
Automotive & Heavy
Equipment
Manufacturing &
Fabrication
Medical & Laboratory
Equipment
Electrical &
Electronics Assembly
Oil, Gas & Petrochemical
Installations
Do you have questions?
What is the standard tolerance in aluminium sheets?
Which finish is best for reflective or decorative purposes?
Can aluminium sheets be laser cut or CNC machined?
Do you supply marine-grade aluminium sheets?
