Aluminium Rod

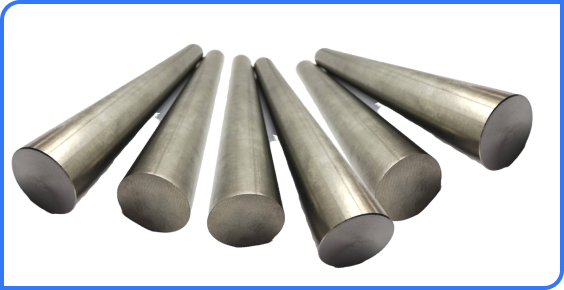

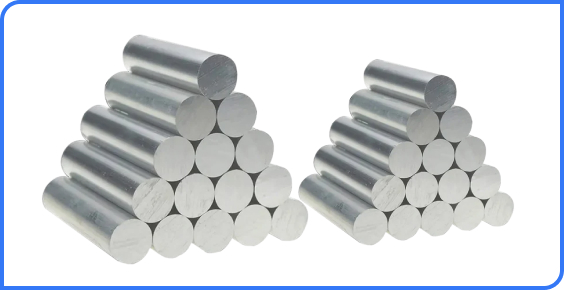

What is Aluminium Rod?
Aluminium Rod is a solid cylindrical bar of aluminium used for machining, forging, welding, and structural applications. It offers an excellent balance of strength, corrosion resistance, and thermal/electrical conductivity. Commonly available in a range of alloys and diameters, aluminium rods are used in manufacturing, engineering, construction, and transportation sectors.
Asiad Steel Industries supplies high-quality Aluminium Rods in precise tolerances and various grades, ensuring durability and machinability for critical applications.
Key Features
- Lightweight Yet Strong – Ensures structural reliability in load-bearing applications.
- High Machinability – Suitable for turning, threading, and milling operations.
- Corrosion Resistance – Ideal for marine and chemical process industries.
- Electrical & Thermal Conductivity – Used in power transmission and electronics.
- Alloy Versatility – Available in 6061, 6082, 2011, and other grades.
Specifications
Mechanical Properties
Chemical Composition
Equivalent Grades
Weight Chart
Specifications
| Parameter | Details |
|---|---|
| Diameter Range | 5 mm to 200 mm |
| Length | Up to 6 meters |
| Alloys | 6061, 6082, 2011, 7075, 1100 |
| Tempers | O, T6, H14, H112 |
| Standards | ASTM B211, EN 573, ISO |
| Property | Value |
|---|---|
| Tensile Strength | 120 – 340 MPa |
| Yield Strength | 60 – 300 MPa |
| Elongation | 10% – 25% |
| Hardness (HB) | 35 – 110 |
| Element | Composition (%) |
|---|---|
| Aluminium | Balance |
| Silicon | 0.1 – 1.5 |
| Copper | 0.05 – 4.0 |
| Magnesium | 0.3 – 5.0 |
| Zinc | 0.1 – 6.0 |
| Manganese | 0.1 – 1.5 |
| Standard | Equivalent Grades |
|---|---|
| ASTM | B211, 6061, 2011, 7075 |
| EN | AW-6061, AW-6082, AW-2011 |
| ISO | AlMgSi1, AlCu6BiPb |
| Diameter (mm) | Weight per Meter (kg) |
|---|---|
| 10 | 0.21 |
| 20 | 0.84 |
| 40 | 3.36 |
Applications of Aluminium Rod
Construction &
Infrastructure
Automotive & Heavy
Equipment
Manufacturing &
Fabrication
Medical & Laboratory
Equipment
Electrical &
Electronics Assembly
Oil, Gas & Petrochemical
Installations
Do you have questions?
Are aluminium rods suitable for machining and threading?
Yes, especially alloys like 2011 and 6061 which are highly machinable.
What is the standard tolerance on aluminium rods?
We offer tight tolerances as per ASTM/ISO standards or based on client requirements.
Do you offer aluminium rods in anodized condition?
Yes, anodizing is available on request to improve corrosion resistance and surface finish.
Can I get aluminium rods in cut lengths?
Absolutely. We provide custom cut-to-size options to match your project needs.
