Aluminium Flat
What is Aluminium Flat?

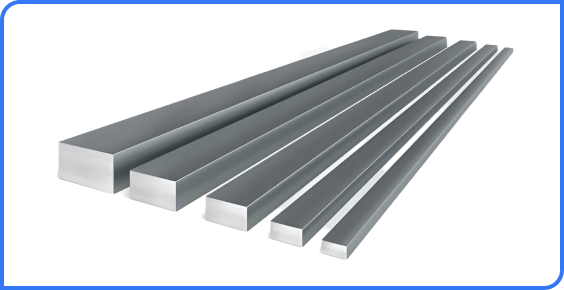

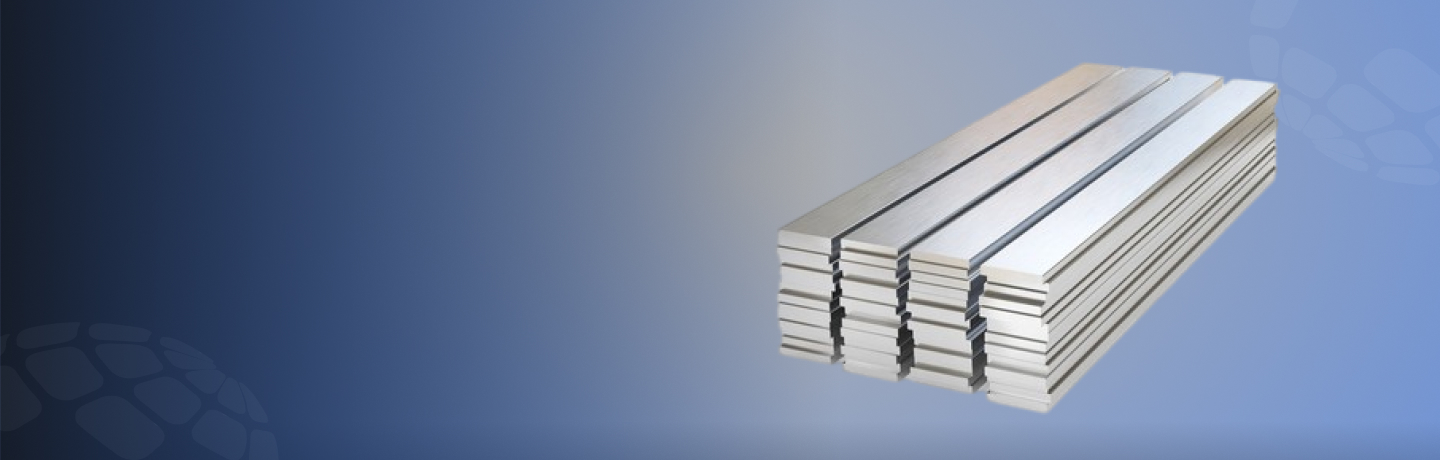

Aluminium Flat is a rectangular, solid strip of aluminium used in structural, decorative, and fabrication applications. It offers excellent corrosion resistance, strength-to-weight ratio, and formability. Aluminium flats are widely used in brackets, trims, construction supports, frames, and more.
Asiad Steel Industries manufactures and supplies premium-grade Aluminium Flats in a wide variety of sizes and alloys, ensuring accuracy, consistency, and superior finish.
Key Features
Thermal
Stability
Durable
Construction
Precision
Finish
Wide
Compatibility
Corrosion
Resistant
Specifications
| Specification Category | Parameter / Feature | Details / Options |
|---|---|---|
| Size Range | Nominal Size | 10 mm × 10 mm to 500 mm × 500 mm (custom sizes available) |
| Thickness Range | Standard Thickness | 1 mm to 150 mm (custom thicknesses on request) |
| Length Options | Standard Length | 1 m to 6 m; cut lengths or coils available |
| Product Types | Aluminium Flats | Mill Finish, Hot Rolled, Cold Rolled, Anodized, Coloured |
| Material Options | Aluminium Grades | 1100, 3003, 5052, 6061, 6082, 7075 (others on request) |
| Other Alloys | Custom aluminium alloys for marine, aerospace, structural use | |
| Standards & Certifications | ASTM | ASTM B209, ASTM B221 |
| ASME / ANSI | ASME SB209, ASME SB221 | |
| European Standards | EN 485, EN 573 | |
| Certifications | ISO 9001, PED 2014/68/EU, RoHS, NACE MR0175 | |
| Design Features | Width & Thickness Tolerance | As per ASTM / ASME / EN standards (tight tolerances available) |
| Edge Types | Square Edge, Rounded Edge, Beveled Edge | |
| End Connections | Plain Ends (cut to length) | |
| Coating & Surface Finish | Anti-Corrosion Coating | Passivation, Oxide Layer |
| Optional Coatings | Anodizing, Powder Coating, PVDF, PVD | |
| Surface Finish | Mill Finish, Brushed, Polished, Matt, Mirror Finish | |
| Testing & Inspection | Mechanical Testing | Tensile, Hardness, Impact |
| Non-Destructive Testing | Ultrasonic (UT), Dye Penetrant (DPT) | |
| Dimensional Inspection | Width, Thickness, Flatness | |
| Applications | Typical Uses | Construction, Transport, Marine, Fabrication, Electrical Panels |
Mechanical Properties
| Property | Value | Unit / Standard |
|---|---|---|
| Tensile Strength | 90 – 570 | MPa (alloy-dependent, e.g. 1100–7075) |
| Yield Strength | 35 – 500 | MPa |
| Hardness | 20 – 150 | HB (Brinell, temper-dependent) |
| Elongation | ≥ 5 – 25 | % (alloy/temper-dependent) |
| Density | 2.66 – 2.85 | g/cm³ |
| Impact Toughness | ≥ 20 – 40 | J (Charpy, grade-dependent) |
| Modulus of Elasticity (E) | ~68 – 72 | GPa |
| Fatigue Strength | 55 – 200 | MPa (depending on alloy & temper) |
| Corrosion Resistance | Good to Excellent (Marine grade 5052 / 6061 / 6082 better) | – |
| Thermal Conductivity | 120 – 235 | W/m·K |
| Coefficient of Thermal Expansion | 22 – 25 ×10⁻⁶ | /°C |
| Yield Ratio (YS/UTS) | 0.35 – 0.70 | – |
| Poisson’s Ratio | 0.33 | – |
| Brinell Hardness Range | 20 – 150 | HB |
| Surface Finish | Mill Finish / Brushed / Polished / Anodized | – |
| Edge Type | Square / Rounded / Beveled | – |
| Operating Temperature Range | -200 to 300 | °C (alloy/temper-dependent) |
| Standard Sizes | 10 mm × 10 mm to 500 mm × 500 mm (custom sizes available) | – |
Chemical Composition
| Element | Aluminium 1100 | Aluminium 3003 | Aluminium 5052 | Aluminium 6061 |
|---|---|---|---|---|
| Aluminium (Al) | 99.0 min | Balance | Balance | Balance |
| Magnesium (Mg) | — | 0.20 – 0.60 | 2.2 – 2.8 | 0.8 – 1.2 |
| Silicon (Si) | ≤ 0.45 | ≤ 0.60 | ≤ 0.25 | 0.4 – 0.8 |
| Iron (Fe) | ≤ 0.35 | ≤ 0.70 | ≤ 0.40 | ≤ 0.7 |
| Copper (Cu) | ≤ 0.05 | 0.05 – 0.20 | ≤ 0.10 | 0.15 – 0.40 |
| Manganese (Mn) | ≤ 0.05 | 1.0 – 1.5 | 0.10 – 0.35 | ≤ 0.15 |
| Chromium (Cr) | — | — | 0.15 – 0.35 | 0.04 – 0.35 |
| Zinc (Zn) | ≤ 0.10 | ≤ 0.10 | ≤ 0.10 | ≤ 0.25 |
| Titanium (Ti) | — | — | — | ≤ 0.15 |
| Others (Total) | ≤ 0.15 | ≤ 0.15 | ≤ 0.15 | ≤ 0.15 |
Applications of Aluminium Flats
Construction &
Infrastructure
Automotive & Heavy
Equipment
Manufacturing &
Fabrication
Medical & Laboratory
Equipment
Electrical &
Electronics Assembly
Oil, Gas & Petrochemical
Installations
Do you have questions?
What cutting options are available for aluminium flats?
Are aluminium flats weldable?
Is aluminium flat suitable for outdoor use?
Do you offer surface treatments on aluminium flats?
