Aluminium Coil

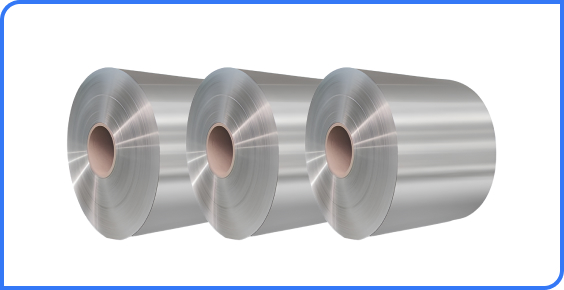

What is Aluminium Coil?
Aluminium Coil is a rolled product of aluminium used in a wide range of industrial and commercial applications. It is lightweight, corrosion-resistant, and highly workable, making it suitable for automotive panels, building facades, HVAC systems, and insulation. Aluminium coils are available in various alloys and tempers and are often coated or anodized for added protection.
Asiad Steel Industries is a leading supplier of Aluminium Coils, delivering precision-rolled products for global industries with reliable performance and timely delivery.
Key Features
Thermal
Stability
Durable
Construction
Precision
Finish
Wide
Compatibility
Corrosion
Resistant
Specifications
| Specification Category | Parameter / Feature | Details / Options |
|---|---|---|
| Size Range | Thickness | 0.2 mm to 6 mm (custom sizes available) |
| Width | 50 mm to 2000 mm | |
| Coil Weight | Up to 5 MT (as per requirement) | |
| Product Types | Coil Types | Mill Finish, Pre-painted, Anodized, Polished |
| Tempers | O, H12, H14, H16, H18, H22, H24, H32, H34 | |
| Surface Options | Plain, Stucco Embossed, Patterned | |
| Material Options | Aluminium Grades | 1100, 1200, 3003, 3105, 5005, 5052, 5754, 6061, 8011 |
| Other Alloys | As per ASTM / EN standards | |
| Standards & Certifications | ASTM | ASTM B209, ASTM B221, ASTM B928 |
| ASME / ANSI | ASME SB-209, SB-221 | |
| European Standards | EN 485, EN 573, EN 13523 | |
| Certifications | ISO 9001, ROHS, REACH, CE | |
| Design Features | Coil ID | 150 mm, 300 mm, 508 mm |
| Coil OD | Up to 2000 mm | |
| Tolerance | As per ASTM / EN standards | |
| Coating & Surface Finish | Anti-Corrosion Coating | Chromated, Passivation |
| Optional Coatings | PVDF, PE, Epoxy, Anodized | |
| Surface Finish | Mill Finish, Painted, Brushed, Mirror, Embossed | |
| Testing & Inspection | Mechanical Testing | Tensile, Hardness, Elongation |
| Non-Destructive Testing | Eddy Current, Ultrasonic | |
| Surface Testing | Coating Thickness, Gloss, Adhesion | |
| Corrosion Testing | Salt Spray, Humidity Resistance |
Mechanical Properties
| Property* | Value | Unit / Standard |
|---|---|---|
| Tensile Strength | 90 – 310 | MPa (Aluminium Grades 1100, 3003, 5052, 6061, etc.) |
| Yield Strength | 30 – 275 | MPa |
| Hardness | 20 – 120 | HB (Brinell) |
| Elongation | ≥ 10 – 35 | % (material-dependent) |
| Density | 2.65 – 2.80 | g/cm³ |
| Impact Toughness | 20 – 60 | J (Charpy, grade-dependent) |
| Modulus of Elasticity (E) | ~69 – 75 | GPa |
| Fatigue Strength | 55 – 150 | MPa |
| Corrosion Resistance | Excellent (Anodized > Painted > Mill Finish) | – |
| Thermal Conductivity | 120 – 235 | W/m·K |
| Coefficient of Thermal Expansion | 22 – 25 ×10⁻⁶ | /°C |
| Yield Ratio (YS/UTS) | 0.30 – 0.90 | – |
| Poisson’s Ratio | 0.33 | – |
| Brinell Hardness Range | 20 – 120 | HB |
| Surface Finish | Mill Finish / Painted / Anodized / Polished | – |
| Connection Type | Coiled / Slit / Cut to Length | – |
| Operating Temperature Range | -50 to 250 | °C (grade-dependent) |
| Pressure Rating | Non-pressurized / Mechanical forming applications | – |
Chemical Composition
| Element | Aluminium 1100 | Aluminium 3003 | Aluminium 5052 | Aluminium 6061 |
|---|---|---|---|---|
| Aluminium (Al) | 99.0 min | Balance | Balance | Balance |
| Magnesium (Mg) | — | 0.20 – 0.60 | 2.2 – 2.8 | 0.8 – 1.2 |
| Silicon (Si) | ≤ 0.45 | ≤ 0.60 | ≤ 0.25 | 0.4 – 0.8 |
| Iron (Fe) | ≤ 0.35 | ≤ 0.70 | ≤ 0.40 | ≤ 0.7 |
| Copper (Cu) | ≤ 0.05 | 0.05 – 0.20 | ≤ 0.10 | 0.15 – 0.40 |
| Manganese (Mn) | ≤ 0.05 | 1.0 – 1.5 | 0.10 – 0.35 | ≤ 0.15 |
| Chromium (Cr) | — | — | 0.15 – 0.35 | 0.04 – 0.35 |
| Zinc (Zn) | ≤ 0.10 | ≤ 0.10 | ≤ 0.10 | ≤ 0.25 |
| Titanium (Ti) | — | — | — | ≤ 0.15 |
| Others (Total) | ≤ 0.15 | ≤ 0.15 | ≤ 0.15 | ≤ 0.15 |
Applications of Aluminium Coils
Construction &
Infrastructure
Automotive & Heavy
Equipment
Manufacturing &
Fabrication
Medical & Laboratory
Equipment
Electrical &
Electronics Assembly
Oil, Gas & Petrochemical
Installations
Do you have questions?
What finishes are available for aluminium coils?
Can aluminium coil be customized in thickness and width?
Are aluminium coils suitable for food-grade applications?
What is the standard packaging for aluminium coils?
