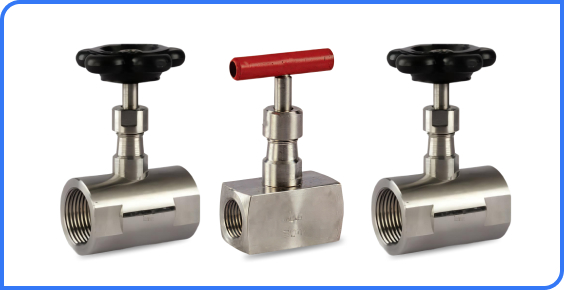

Racer Needle Valves
What are Racer Needle Valves?
Racer Needle Valves are precision-engineered valves designed for fine control of fluid flow in high-pressure systems. Featuring a slender, tapered needle-like plunger, they provide accurate flow regulation in applications like instrumentation, chemical dosing, and laboratory piping systems.
Asiad Steel Industries offers Racer Needle Valves known for tight shutoff capability and corrosion resistance across a wide range of fluids.
Key Features
- Fine Flow Control – Ideal for metering small, accurate flow volumes.
- High Pressure Tolerance – Handles pressures up to 6000 PSI.
- Leak-Proof Design – Precision-machined stem and seat.
- Compact & Lightweight – Perfect for tight space installations.
- Available in Multiple Configurations – Male/Female, Inline, and Angle types.
Specifications
Mechanical Properties
Chemical Composition
Equivalent Grades
Weight Chart
Specifications
| Parameter | Details |
|---|---|
| Sizes | ¼” to 1″ |
| Pressure Ratings | Up to 6000 PSI / 414 bar |
| Body Material | SS 304, SS 316, Brass, Monel |
| Stem Types | Vee Tip, Regulating, Soft Seat |
| Connections | NPT, BSP, Tube End |
| Property | Value |
|---|---|
| Tensile Strength | 500 – 750 MPa |
| Yield Strength | 210 – 450 MPa |
| Hardness | 120 – 240 HB |
| Elongation | 15% – 30% |
| Temp Range | -54°C to +425°C |
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.07 – 0.20 |
| Manganese | 0.50 – 2.00 |
| Chromium | 17.0 – 19.0 (SS) |
| Nickel | 8.0 – 11.0 (SS) |
| Molybdenum | 2.0 – 3.0 (316) |
| Phosphorus | ≤ 0.040 |
| Sulfur | ≤ 0.030 |
| Iron (Fe) | Balance |
| Standard | Equivalent Grade |
|---|---|
| ASTM | A182 F304, F316, B16 |
| DIN | 1.4301, 1.4404 |
| JIS | SUS304, SUS316 |
| Valve Size | Material | Weight (kg) |
|---|---|---|
| ¼” | SS 316 | 0.25 |
| ½” | SS 316 | 0.40 |
| ¾” | SS 316 | 0.60 |
| 1″ | SS 316 | 0.85 |
Applications of Racer Needle Valves
Construction &
Infrastructure
Automotive & Heavy
Equipment
Manufacturing &
Fabrication
Medical & Laboratory
Equipment
Electrical &
Electronics Assembly
Oil, Gas & Petrochemical
Installations
Do you have questions?
Can Racer Needle Valves be used with corrosive fluids?
Yes, especially those made from SS 316 or Monel are corrosion-resistant.
What is the max temperature these valves can handle?
Most models support up to 425°C depending on material and seat type.
Do you provide needle valves with locking arrangements?
Yes, locking stem needle valves are available upon request.
Are Racer Needle Valves pressure-tested?
Absolutely. Each valve undergoes 100% hydrostatic and pneumatic testing.
