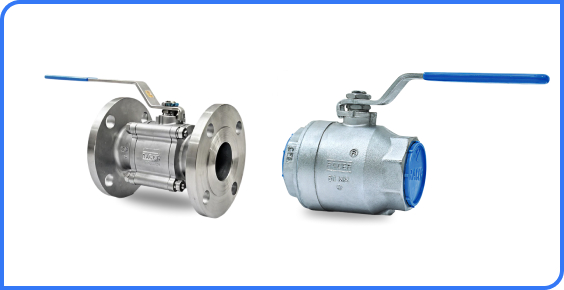

Racer Ball Valves
What are Racer Ball Valves?
Racer Ball Valves are high-performance quarter-turn valves under the Racer brand, engineered for tight shut-off and smooth flow control in demanding industrial systems. Designed with a precision-machined spherical disc (ball), these valves ensure minimal pressure drop and excellent sealing under high-pressure and high-temperature conditions.
Asiad Steel Industries is a leading manufacturer and supplier of Racer Ball Valves known for durability, fast operation, and long service life. Our Racer Ball Valves are widely used in chemical processing, water treatment, oil & gas, and manufacturing plants.
Key Features
- Quarter-turn Shut-Off – Allows quick and reliable flow control
- Full Bore & Reduced Bore Options – For minimal flow restriction
- Bubble-Tight Sealing – Prevents any fluid leakage
- Wide Compatibility – Supports a range of fluids and temperatures
- Available in Multiple Grades – Carbon steel, stainless steel, and special alloys
Specifications
Mechanical Properties
Chemical Composition
Equivalent Grades
Weight Chart
Specifications
| Parameter | Details |
|---|---|
| Sizes | ½” to 12″ (DN15 – DN300) |
| End Connections | Flanged, Threaded, Socket Weld |
| Pressure Ratings | ANSI 150#, 300#, PN16, PN40 |
| Temperature Range | -29°C to +200°C (depending on material) |
| Operation | Lever, Pneumatic, Electric Actuator |
| Material | SS 304, SS 316, CS, Alloy Steel |
| Property | Value |
|---|---|
| Tensile Strength | 485 – 700 MPa |
| Yield Strength | 250 – 450 MPa |
| Hardness | 125 – 250 HB |
| Elongation | 20% – 30% |
| Temperature Range | -46°C to +600°C |
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.08 – 0.35 |
| Manganese (Mn) | 0.60 – 1.65 |
| Silicon (Si) | 0.15 – 0.80 |
| Chromium (Cr) | 18.0 – 20.0 (SS) |
| Nickel (Ni) | 8.0 – 10.5 (SS) |
| Molybdenum (Mo) | 2.0 – 3.0 (for F316) |
| Phosphorus (P) | ≤ 0.035 |
| Sulfur (S) | ≤ 0.040 |
| Iron (Fe) | Balance |
| Standard | Equivalent Grade |
|---|---|
| ASTM | A105 (CS), A182 F304/F316 (SS) |
| ASME | B16.34 |
| DIN | 1.4301, 1.4401 |
| Valve Size | Type | Approx. Weight (kg) |
|---|---|---|
| ½” | Full Bore | 1.2 |
| 1″ | Reduced Bore | 2.0 |
| 2″ | Flanged End | 6.5 |
| 4″ | Flanged End | 14.0 |
Applications of Racer Ball Valves
Construction &
Infrastructure
Automotive & Heavy
Equipment
Manufacturing &
Fabrication
Medical & Laboratory
Equipment
Electrical &
Electronics Assembly
Oil, Gas & Petrochemical
Installations
Do you have questions?
Are Racer Ball Valves suitable for corrosive media?
Yes, our stainless steel and alloy variants are ideal for corrosive and aggressive environments.
What pressure classes are Racer Ball Valves available in?
We offer valves in ANSI 150#, 300#, and other custom pressure ratings.
Can these valves be automated?
Yes. Racer Ball Valves are compatible with pneumatic and electric actuators for remote operation.
Do you offer fire-safe or anti-static designs?
Yes. Fire-safe, anti-static, and blow-out proof stem designs are available on request.
