Gate Valves
What are Gate Valves?

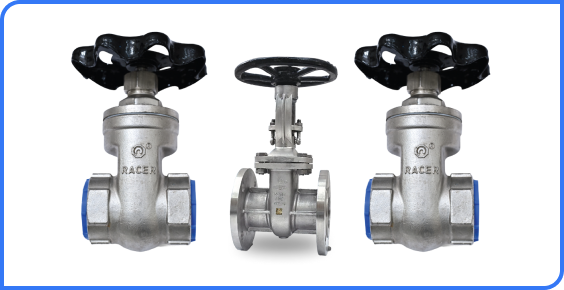

Gate Valves are linear motion valves used to start or stop the flow of liquids in a pipeline. These valves operate by lifting a gate out of the flow path, allowing full unobstructed passage. Ideal for applications requiring minimal pressure drop and bi-directional flow, gate valves are widely used in water supply systems, oil and gas processing, and industrial piping networks.
Asiad Steel Industries is a leading manufacturer and exporter of high-quality Gate Valves for standard and customized applications across various sectors.
Key Features
- Full Bore Design – Offers unobstructed flow with minimal pressure drop.
- Bi-directional Sealing – Effective in both flow directions.
- Rugged Construction – Suitable for high-pressure and high-temperature conditions.
- Variety of Materials – Available in stainless steel, carbon steel, cast iron, and bronze.
- Long Service Life – Resistant to wear, corrosion, and leakage.
Specifications
Mechanical Properties
Chemical Composition
Equivalent Grades
Weight Chart
Specifications
| Parameter | Details |
|---|---|
| Size Range | ½” to 24” (DN15 to DN600) |
| Pressure Rating | Class 150 to 1500 / PN10 to PN100 |
| End Connections | Flanged, Threaded, Butt Weld |
| Body Materials | SS 304, 316, WCB, CF8, CF8M, Bronze |
| Trim Materials | 13Cr, SS 304, SS 316 |
| Operation | Handwheel, Gear, Electric, Pneumatic |
| Standards | API 600, ASME B16.34, DIN, BS |
| Property | Value |
|---|---|
| Tensile Strength | 485 – 700 MPa |
| Yield Strength | 250 – 450 MPa |
| Elongation | 20% – 30% |
| Hardness | 125 – 250 HB |
| Operating Temp | -29°C to +425°C |
| Property | Value |
|---|---|
| Tensile Strength | 485 – 800 MPa |
| Yield Strength | 250 – 600 MPa |
| Elongation | 20% – 35% |
| Hardness | 125 – 250 HB |
| Working Temp | Up to 650°C (Material dependent) |
| Standard | Equivalent Grade |
|---|---|
| ASTM | A216 WCB, A351 CF8/CF8M |
| EN | 1.4301 / 1.4401 |
| DIN | GS-C25 / GX5CrNi18-10 |
| BS | 1504-161-430A |
| JIS | SCS13, SCS14 |
| Size (Inches) | Class 150 (kg) | Class 300 (kg) |
|---|---|---|
| 1” | 6 | 9 |
| 2” | 14 | 18 |
| 4” | 32 | 48 |
| 6” | 68 | 92 |
| 8” | 96 | 134 |
Applications of Industrial Gate Valves
Construction &
Infrastructure
Automotive & Heavy
Equipment
Manufacturing &
Fabrication
Medical & Laboratory
Equipment
Electrical &
Electronics Assembly
Oil, Gas & Petrochemical
Installations
Do you have questions?
When should gate valves be used over globe valves?
Gate valves are best for on/off control where flow regulation is not required. They provide full flow or complete shut-off.
Do gate valves work for throttling applications?
Not ideal. Gate valves are not recommended for throttling as partial opening may damage the sealing surfaces.
What is the difference between rising and non-rising stem types?
Rising stem valves indicate valve position externally, while non-rising stem valves are better for space-constrained setups.
Are gate valves suitable for slurries or viscous media?
Not typically. Viscous or slurry media may lead to accumulation and damage. Specialized valves are recommended.
